Key Information
- Built-in Backup Port with Automatic UPS switching Up to 190A max charge/discharge current
- Up to 200% DC oversizing
- 6 customisable charge/discharge time settings
- 10 second 200% surge power backup overload capability
- Generator connectivity with multiple input methods and automatic generator On/Off control
- Supports 1ph and 3ph flexible connection with max 48kW in parallel
- Intelligent AC coupling scheme, easily upgrade existing grid-connected systems Supports peak shaving control in both "self-use" and "generator" mode
- Compatible with lead-acid and lithium batteries, with multiple battery protection features
-
Does not include a DC cable for connecting to battery storage.
Solis
Solis Single Phase Low Voltage 8kW Energy Storage Hybrid Inverters
Solis Single Phase Low Voltage 8kW Energy Storage Hybrid Inverters
Share

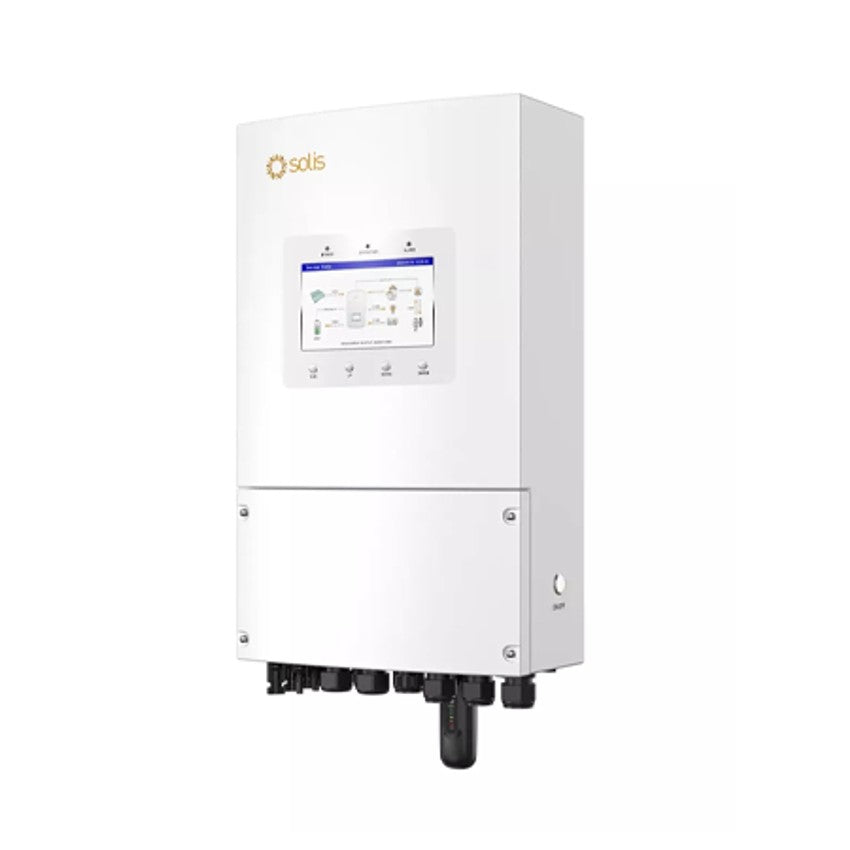

Solis S6 EH1P8K-L-PLUS Single Phase Low Voltage 8kW Hybrid Inverter
The Solis S6 EH1P8K-L-PLUS is a single phase low voltage hybrid inverter engineered for demanding energy storage and backup power scenarios. Designed to handle high battery currents, large PV arrays and flexible system expansion, this PLUS model delivers advanced backup functionality, generator integration and intelligent energy control for modern residential and light commercial installations.
Key Technical Details
- Product Type: Single phase low voltage hybrid inverter
- Rated Power: 8,000W
- Weight: 22.2kg
- MPPT Quantity: 8
- Max DC Inputs: 8
- Max DC Power: 16,000W
- Max DC Current: 64A
- Min MPPT Voltage: 90V
- Max MPPT Voltage: 435V
- DC Startup Voltage: 90V
- DC Shutdown Voltage: 90V
- Max Input Voltage: 500V
- Max AC Power (5 Minutes): 8,000W
- Surge AC Power (1 Second): 8,001W
- Connector Type: MC4
- Included Connectors: 3
- Euro Efficiency: 96.5%
- Transformer: None
- Integrated DC Switch: Yes
- Warranty: 5 years
- Supplier Part Number: S6-EH1P8K-L-PLUS
- Part Number: SOL-S6-EH1P8K-L-PLUS
Why This Series Stands Out
- Built in backup port with automatic UPS switching
- Up to 190A maximum battery charge and discharge current
- Supports up to 200% DC oversizing for higher PV utilisation
- Designed for demanding power and backup scenarios
- Low voltage architecture compatible with a wide range of batteries
Solis Key Features
- 10 second 200% surge power capability during backup operation
- Six customisable charge and discharge time settings
- Generator connectivity with multiple input methods and automatic on off control
- Supports single phase and three phase flexible connection up to 48,000W in parallel
- Peak shaving control in both self use and generator modes
- Intelligent AC coupling for upgrading existing grid connected systems
- Compatible with lead acid and lithium batteries with multiple protection features
Installation Notes
- DC battery connection cable is not included with the inverter
- SOL-METER-1PH-CT1 is not compatible with this model
- SOL-METER-1PH-EASTRON is required for metering applications
About Solis
Solis inverters are developed by a global research and development team of professors and specialists from multiple countries. Known for reliable operation, wide input voltage capability and precise MPPT algorithms, Solis delivers advanced hybrid inverter solutions trusted across residential and commercial energy storage systems.
