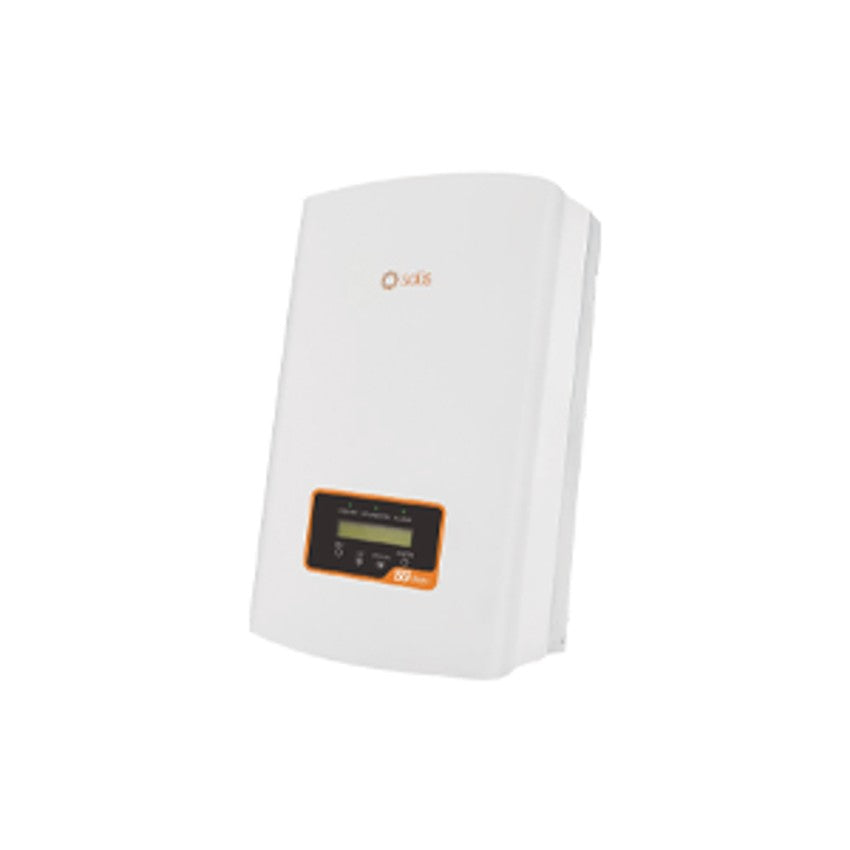

Solis 5kW S6 Dual MPPT Single-Phase Grid-Tie Inverter with Integrated DC Isolator
The Solis 5kW S6 is a single-phase, dual MPPT grid-tie inverter rated at 5,000W from the Ginlong Solis Series 6 range. This transformerless inverter accepts up to 7,500W of PV input across two independent MPPT trackers, each supporting 14A maximum input current for compatibility with high-efficiency and bifacial modules. Delivering a maximum efficiency of 97.7% and Euro efficiency of 97.1%, the S6 5kW is housed in an IP66-rated enclosure with natural cooling at a weight of just 12kg. The unit ships with an integrated DC isolator, integrated AFCI arc-fault protection, and a built-in Export Power Manager. Manufacturer part number: SOL-5.0-S6-DT-DC (MPN: S6-GR1P5K-DC). Available from DECO Group, a UK solar wholesaler for professional trade installers.
Key Technical Details
- Brand: Solis (Ginlong Solis)
- Model: S6 Series, 5kW Dual Tracker
- Part number (SKU): SOL-5.0-S6-DT-DC
- MPN: S6-GR1P5K-DC
- Supplier part number: S6-GR1P5K
- Inverter type: Grid-tie, transformerless
- Rated output power: 5,000W
- Max PV input power: 7,500W
- Max AC output power (5 minutes): 5,000W
- Surge AC power (1 second): 5,000W
- Phase configuration: Single phase
- Rated voltage: 330V
- Grid voltage: 220V / 230V
- MPPT quantity: 2
- Max DC inputs: 2
- Max input voltage: 600V
- MPPT voltage range: 90V to 520V
- DC start-up voltage: 120V
- DC shutdown voltage: 90V
- Max DC current: 28A (14A per string)
- Maximum efficiency: 97.7%
- Euro efficiency: 97.1%
- Connector type: MC4 (2 pairs included)
- Communication: RS485
- Integrated DC switch: Yes
- Protection rating: IP66
- Cooling: Natural
- Dimensions: 310 x 543 x 160mm (W x H x D)
- Weight: 12kg
- Warranty: 5 years standard
Key Features
- Super high frequency switching technology delivers a maximum efficiency of 97.7% and Euro efficiency of 97.1%.
- Dual MPPT design with precise MPPT algorithm enables independent tracking across two strings for improved energy yield on split or multi-orientation arrays.
- 14A maximum input current per string, compatible with high-efficiency and bifacial modules.
- Wide MPPT voltage range of 90V to 520V with a maximum PV input voltage of 600V and start-up voltage of 120V.
- Integrated AFCI (DC arc-fault circuit protection) proactively reduces fire risk on the DC side.
- Integrated DC switch provides emergency shutdown capability and safe isolation for PV maintenance.
- Export limitation built in via the integrated Export Power Manager (EPM). Requires a CT clamp, sold separately.
- DRM (Demand Response Mode) integrated for smart grid compliance.
- IP66-rated enclosure with natural cooling for reliable outdoor installation.
- Lightweight at 12kg within the 310 x 543 x 160mm chassis, comfortably a single-person install.
System Compatibility
- Compatible with high-efficiency and bifacial PV modules up to 14A per string.
- Export limitation requires a CT clamp (not included). For installations where the inverter is within 10m of the incoming power supply, use CT part number SOL-CT-100A-10M. A firmware upgrade to the latest version is required for this CT to function.
- For installations where the distance from inverter to incoming supply exceeds 10m, use the Solis Export Power Manager (SOL-EPM1-5G) instead.
- RS485 communication with optional S3-WIFI-ST WiFi data logging stick for real-time remote monitoring via SolisCloud.
Installation Notes
- IP66-rated enclosure allows installation in exposed outdoor locations without additional weatherproofing.
- Natural cooling design with no moving parts, reducing long-term maintenance requirements.
- At 12kg and 310 x 543 x 160mm (W x H x D), this is a comfortable single-person lift and install.
- Two pairs of MC4 connectors included for direct connection to both PV string inputs.
- Must be installed by a qualified electrician or technician. All installations must adhere to local wiring regulations and standards.
Warranty
- 5-year standard manufacturer warranty.
Common Questions
- What is the maximum PV input for the Solis 5kW S6 Dual MPPT?
- The Solis 5kW S6 accepts up to 7,500W of PV input power across two independent MPPT trackers, with a maximum input voltage of 600V and 14A maximum current per string.
- What are the dimensions and weight of the Solis 5kW S6?
- The inverter measures 310 x 543 x 160mm (W x H x D) and weighs 12kg.
- What CT clamp is needed for export limitation on the Solis 5kW S6?
- For installations within 10m of the incoming power supply, use the SOL-CT-100A-10M (firmware upgrade required). For distances greater than 10m, use the Solis Export Power Manager (SOL-EPM1-5G).
- How does the Solis 5kW S6 compare to the 4kW and 6kW models in the series?
- The 5kW S6 shares the same 310 x 543 x 160mm chassis and dual MPPT architecture as the rest of the S6 dual tracker range. It sits between the 4kW (6,000W max PV input) and 6kW (9,000W max PV input) models, accepting up to 7,500W of PV input across two 14A strings.
