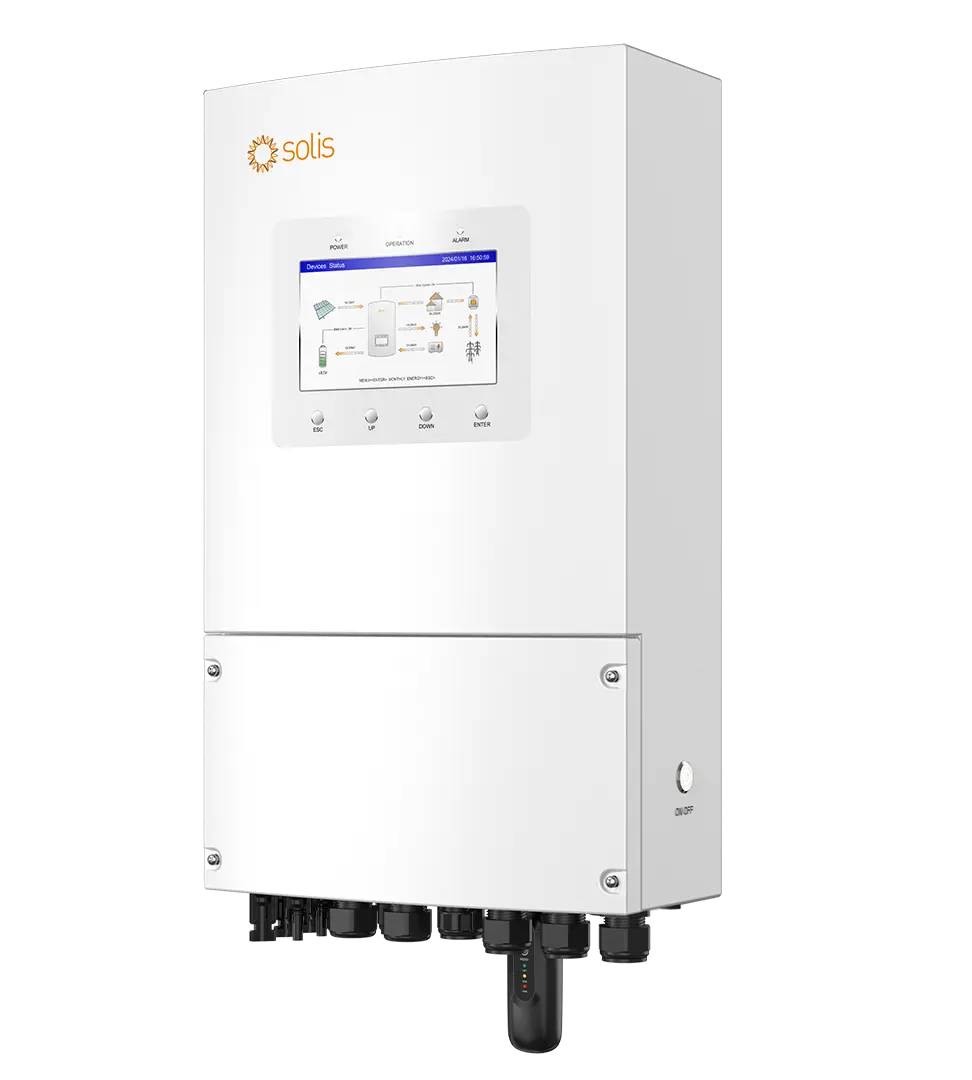

Solis S6-EH1P-10K-L-PLUS 10kW Single-Phase Low-Voltage Hybrid Inverter
The Solis S6-EH1P-10K-L-PLUS (part number SOL-S6-EH1P10K-L-PLUS-UK) is a 10 kW single-phase low-voltage hybrid inverter from the Solis S6 PLUS range, designed for demanding residential and light commercial energy storage applications. It features a built-in backup port with automatic UPS switching, up to 190 A maximum battery charge/discharge current, 200% DC oversizing capability, 200% surge power for 10 seconds, generator connectivity with automatic on/off control, and parallel operation supporting single-phase and three-phase configurations up to 48 kW. Compatible with lithium and lead-acid batteries. Intelligent AC coupling enables easy retrofitting to existing grid-connected PV systems. Available from DECO Group, a UK-based solar trade wholesaler.
Key Technical Details
- Part number: SOL-S6-EH1P10K-L-PLUS-UK
- Supplier part number: S6-EH1P-10K-L-PLUS
- Inverter type: Single-phase hybrid (PV inverter and battery storage controller)
- Rated output power: 10 kW
- PV oversizing: up to 200%
- Maximum battery charge/discharge current: 190 A
- Backup: Built-in backup port with automatic UPS switching
- Surge capability: 200% of rated power for 10 seconds
- Battery compatibility: Lithium-ion and lead-acid
- Generator input: Yes, with automatic on/off control
- Parallel operation: up to 48 kW (single-phase and three-phase configurations)
- Integrated DC switch: Yes
- Connector: MC4
- Weight: 23.8 kg
Key Features
- 10 kW single-phase hybrid inverter for demanding residential and light commercial applications
- Built-in backup port with automatic UPS switching for seamless power continuity
- Up to 190 A maximum charge/discharge current for high-power battery performance
- 200% DC oversizing to maximise PV generation potential
- 200% surge power for 10 seconds to support high-inrush loads (motors, pumps, A/C units)
- Generator connectivity with multiple input methods and automatic start/stop control
- Flexible parallel operation supporting single-phase and three-phase systems up to 48 kW
- Intelligent AC coupling for easy upgrading of existing grid-connected PV systems
- Peak shaving control in both self-use and generator modes
- 6 fully customisable charge/discharge time settings for tariff optimisation
- AI-optimised cloud-based automated energy management assistant
- Compatible with lithium and lead-acid batteries with multiple built-in battery protection features
System Compatibility
- Part of the Solis S6 PLUS single-phase LV hybrid range
- Compatible with lithium-ion and lead-acid batteries
- Refer to the Solis Battery Compatibility List for confirmed compatible battery models
- DC and AC coupling supported for new-build and retrofit installations
- Up to 48 kW in parallel (single-phase and three-phase configurations)
- DC battery cable is not included and must be ordered separately
Important: Meter Compatibility
- The SOL-METER-1PH-CT1 is not compatible with this inverter
- The correct meter is the SOL-METER-1PH-EASTRON (Solis 1-Phase Eastron SDM120CT)
Installation Notes
- At 23.8 kg, manageable for a single-person installation
- DC battery cable is not included; order separately
- Use the SOL-METER-1PH-EASTRON for metering (SOL-METER-1PH-CT1 is not compatible)
- Configure backup, generator, and peak shaving modes as required
- Must be installed by a qualified electrician or technician in compliance with local wiring regulations
Warranty
- Standard warranty: 5 years
Common Questions
Click a question below to reveal the answer.
Does this inverter include a battery cable?
No. A DC cable for connecting to battery storage is not included and must be ordered separately.
Which meter do I need for the Solis S6 10K PLUS?
The SOL-METER-1PH-EASTRON (Solis 1-Phase Eastron SDM120CT) is required. The SOL-METER-1PH-CT1 is not compatible with the PLUS model.
Does this inverter support backup power?
Yes. It includes a built-in backup port with automatic UPS switching and 200% surge power for 10 seconds to handle high-inrush loads.
Can I use a generator with this inverter?
Yes. The inverter supports generator input with multiple connection methods and automatic generator start/stop control.
Can this inverter be used in a three-phase system?
Yes. Multiple units can be connected in parallel to form single-phase or three-phase configurations up to 48 kW total.
About Solis
Ginlong Solis, established in 2005, is an internationally recognised manufacturer of solar inverters for residential, commercial, and utility-scale applications. The S6 PLUS range represents the latest generation of Solis single-phase low-voltage hybrid inverters for demanding energy storage applications.
DECO Group supplies Solis single-phase and three-phase hybrid inverters alongside compatible battery systems, metering accessories, and system components. Browse our Solis hybrid inverter catalogue for complete storage system configurations.
