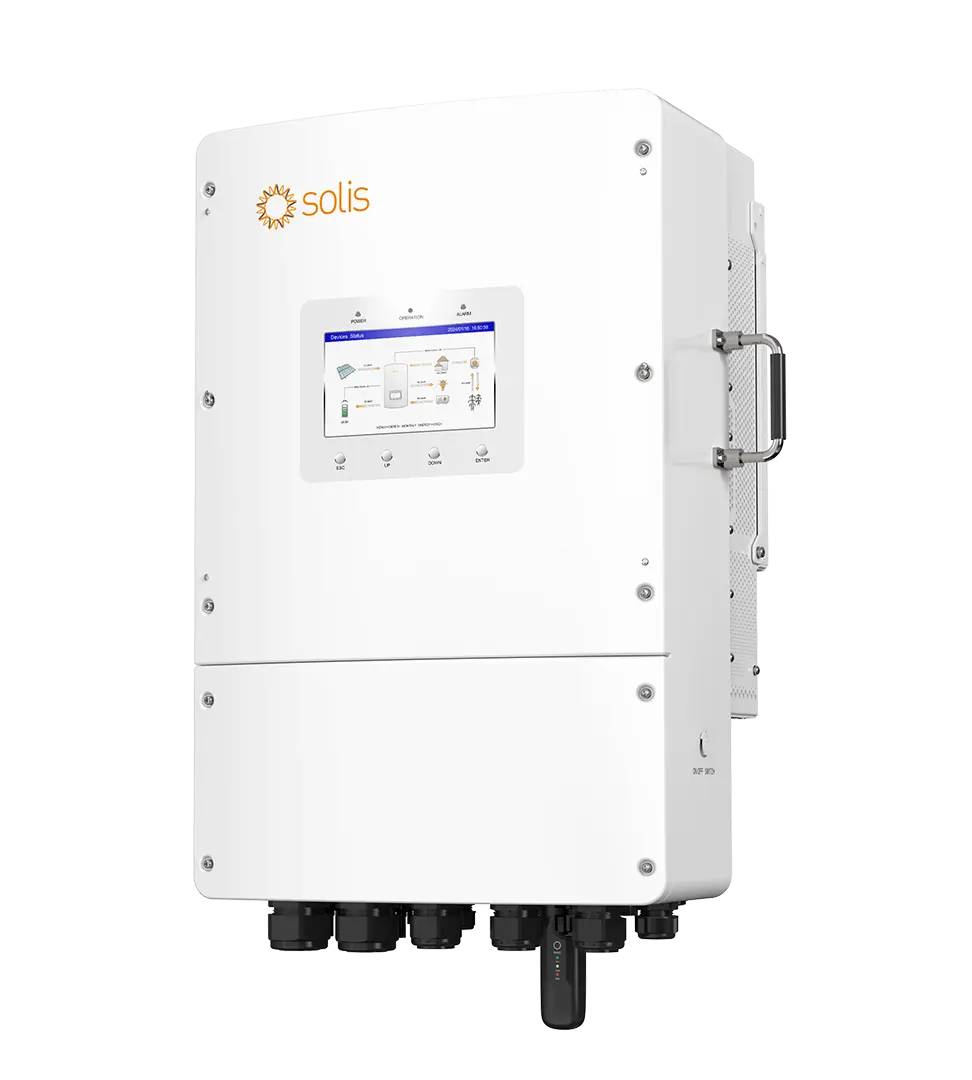

Solis S6 10kW Three-Phase Low-Voltage 48V Hybrid Inverter
The Solis S6-EH3P10K02-NV-YD-L (part number SOL-S6-EH3P10K-NV-YD-L-UK) is a 10 kW three-phase low-voltage (48 V) hybrid inverter from the Solis SOLARATOR series. It combines PV generation with 48 V battery management (lithium or lead-acid, 40–60 V range), delivering three-phase backup power with UPS-level changeover of less than 10 ms and 200% overload for 10 seconds in off-grid mode. It features 2 MPPT trackers with up to 3 string inputs, a maximum usable PV input of 16 kW (160% oversizing), DC and AC coupling support, generator connectivity with auto control, and parallel operation of up to 6 units. Three-phase unbalanced output up to 50% of rated power per phase. IP66 rated with a 7-inch touchscreen, Bluetooth, and app-based commissioning. Available from DECO Group, a UK-based solar trade wholesaler.
Key Technical Details
PV Input
- Recommended maximum PV array size: 20 kW
- Maximum usable PV input power: 16 kW
- Maximum PV input voltage: 1,000 V
- Rated PV voltage: 550 V
- MPPT voltage range: 200 V to 850 V
- DC startup voltage: 160 V
- MPPT quantity: 2
- Maximum string inputs: 3
- Maximum PV input current: 20 A / 40 A per MPPT
- Maximum PV short-circuit current: 30 A / 50 A per MPPT
- PV oversizing: up to 160%
- Integrated DC switch: Yes
- Connector: MC4
Battery
- Battery type: Li-ion / Lead-acid
- Battery voltage range: 40 V to 60 V (48 V class)
- Maximum charge/discharge current: 220 A total
- Number of battery ports: 2
- Maximum charge/discharge current per port: 150 A
- Battery communication: CAN / RS485
- Battery charged by PV max efficiency: 95.0%
- Battery charged by AC max efficiency: 94.4%
- Battery discharged to AC max efficiency: 94.5%
AC Output (Grid-Connected)
- Rated AC output power: 10 kW
- Maximum apparent output power: 10 kVA
- Rated grid voltage: 3/N/PE, 220 V / 380 V or 230 V / 400 V
- Rated grid frequency: 50 / 60 Hz
- Rated grid output current: 15.2 A / 14.4 A
- Power factor: greater than 0.99 (0.8 leading to 0.8 lagging)
- THDi: less than 3%
- Maximum efficiency: 97.5%
- EU efficiency: 96.4%
Backup / Off-Grid
- Rated backup output power: 10 kW
- Maximum apparent backup output power: 2 x rated power for 10 seconds (200% overload)
- Backup switch time: less than 10 ms (UPS-level)
- Maximum continuous AC passthrough current: 50 A
- THDv at linear load: less than 3%
- Maximum power per phase: 50% of rated power
- PV-only off-grid operation: supported (site design dependent)
- Supports unbalanced and half-wave loads on both grid and backup ports
Generator
- Generator max input power: 10 kW
- Generator max input current: 15.2 A / 14.4 A
- Generator auto control: Yes
General
- Surge protection: DC Type II / AC Type II (optional)
- AFCI 2.0: Optional
- Parallel operation: up to 6 units
- Display: 7.0-inch LCD with Bluetooth and app
- Communication: CAN, RS485, Ethernet; optional WiFi, Cellular, LAN
- Cooling: Intelligent fan-cooling
- Ingress protection: IP66
- Operating temperature: -25°C to +60°C
- Self-consumption (night): less than 30 W
- Dimensions: 430 x 660 x 305 mm (W x H x D)
- Weight: 42 kg
Key Features
- 10 kW three-phase hybrid inverter with 48 V battery storage (lithium or lead-acid)
- UPS-level backup switching in less than 10 ms
- 200% overload for 10 seconds in off-grid mode for motor, pump, and A/C start-up
- 160% PV oversizing with up to 16 kW usable PV input across 2 MPPT trackers
- PV-only off-grid operation supported, reducing upfront battery costs
- DC and AC coupling for flexible retrofits and system expansion
- Generator connectivity with automatic on/off control
- Parallel operation of up to 6 units for up to 60 kW of backup
- Three-phase unbalanced output up to 50% of rated power per phase
- Supports unbalanced and half-wave loads on both grid and backup ports
- Dual backup ports for intelligent control of critical and non-critical loads
- IP66 rated for indoor or outdoor installation in harsh environments
- 7-inch touchscreen with Bluetooth and app for fast commissioning
- Multiple inverters can operate together to form a microgrid
System Compatibility
- Part of the Solis SOLARATOR S6-EH3P(8-15)K series
- Supports lithium-ion and lead-acid batteries in the 40–60 V (48 V class) range
- Refer to the Solis Battery Compatibility List for confirmed compatible battery models
- DC and AC coupling supported for new-build and retrofit installations
- Up to 6 units in parallel for expanded capacity
Installation Notes
- At 42 kg, a two-person lift is required
- IP66 rated for indoor or outdoor installation
- Design PV strings within 1,000 V maximum PV input, operating in the 200–850 V MPPT window
- Verify battery type and configuration; connect within 40–60 V range
- If using generator input, validate generator sizing and configure auto-control parameters
- Must be installed by a qualified electrician or technician in compliance with local wiring regulations and DNO requirements
Certifications and Compliance
Warranty
- Standard warranty: 5 years
- Extended warranty: details available on request
Common Questions
Click a question below to reveal the answer.
What is the difference between the Solis S6 10kW and 15kW 3PH LV hybrids?
Both share the same SOLARATOR platform, dimensions (430 x 660 x 305 mm), weight (42 kg), efficiency (97.5% max), and feature set. The 10 kW accepts up to 16 kW PV input (vs 24 kW) with 3 string inputs (vs 4), has 220 A max battery current (vs 290 A), and allows 50% power per phase (vs 40%). Generator input matches the inverter rating.
How fast is the backup switching?
Backup changeover is specified as less than 10 ms, providing UPS-level switching for critical loads.
Can the Solis S6 10kW run off-grid without batteries?
Yes. The SOLARATOR series supports PV-only off-grid operation, though this is site design dependent.
Can I connect a generator?
Yes. The inverter supports generator connectivity with automatic on/off control. The generator maximum input power is 10 kW.
How many units can be installed in parallel?
Up to 6 units in parallel, providing up to 60 kW of backup power. Multiple units can operate together to form a microgrid.
