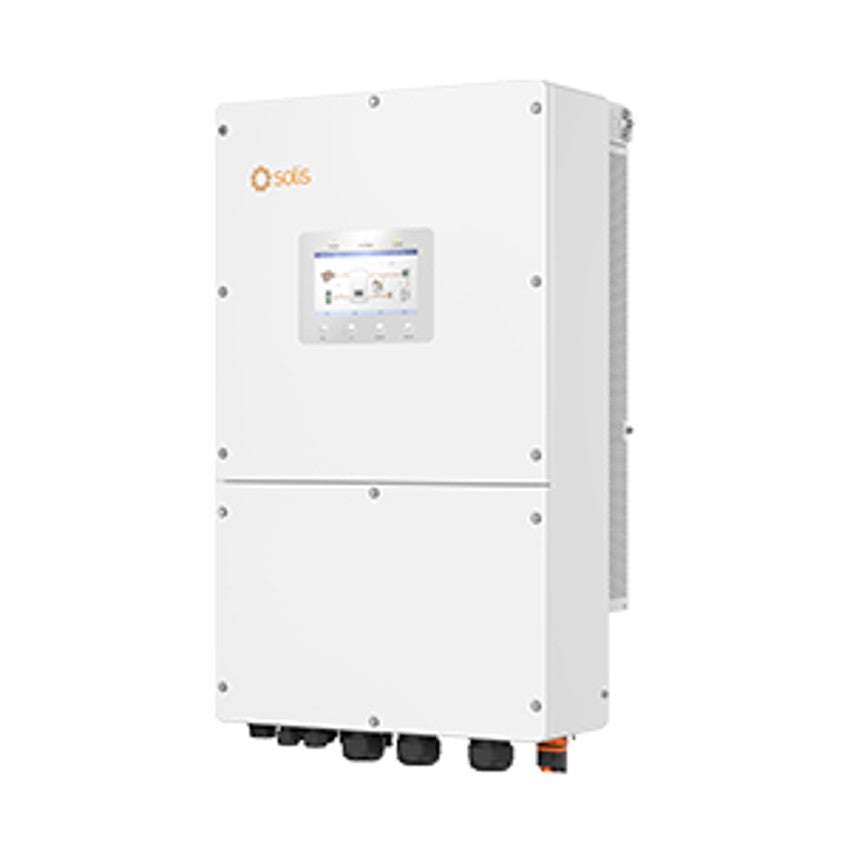

Solis S6 50kW Three Phase High Voltage Hybrid Inverter
The Solis S6 50kW Three Phase High Voltage Hybrid Inverter is a flagship commercial energy storage inverter engineered for large scale, high demand installations.
Designed for on grid, off grid and hybrid operation, this inverter delivers exceptional PV capacity, fast backup response and flexible battery integration, making it suitable for industrial sites, commercial buildings and advanced energy storage projects.
Key Technical Details
-
Product Type: Three phase high voltage hybrid inverter
-
Rated Power: 50,000W
-
Phase: Three phase
-
Weight: 85kg
-
MPPT Quantity: 4
-
Max DC Inputs: 8
-
Max DC Power: 100,000W
-
Max DC Current: 160A
-
Min MPPT Voltage: 180V
-
Max MPPT Voltage: 850V
-
DC Startup Voltage: 180V
-
DC Shutdown Voltage: 150V
-
Max Input Voltage: 1,000V
-
Max AC Power (5 Minutes): 50,000W
-
Surge AC Power (1 Second): 80,000W
-
Connector Type: MC4
-
Included Connectors: 8
-
Euro Efficiency: 97.4%
-
Transformer: None
-
Integrated DC Switch: Yes
-
Warranty: 5 years, extendable
-
Supplier Part Number: S6 EH3P50K H
-
Part Number: SOL S6 EH3P50K H
System Capabilities
- Allowable PV input up to 100kW across a wide 180–1000V MPPT range
- 4 MPPTs rated at 40A each with dual string inputs supporting up to 8 PV strings
- Supports grid and generator AC inputs
- Parallel operation of up to 6 inverters for systems up to 300kW
- Dual battery ports with combined charge and discharge current up to 140A
- UPS transfer time under 10ms for seamless backup power
- 160% surge power for 2 seconds to support inductive loads
- Wide battery voltage compatibility for flexible storage design
- Peak shaving control in both self use and generator modes
- Supports on grid, off grid and hybrid operating modes
Safety, Monitoring and Control
- Integrated AFCI protection to actively mitigate DC arc fault risks
- LCD display for local system visibility
- Remote monitoring and firmware upgrades via Solis Cloud
- S4 WiFi and LAN data logger supplied as standard
- Current transformer ESCT T50 300A 5A included in the box
- NRS 097 certified and CoCT approved
Installation Notes
The inverter supports a maximum battery charge and discharge current of 140A.
Each battery port supports up to 70A using 25mm² cable. Where the full 140A is required from a single battery stack, battery cables must be connected to a common positive and negative busbar, with a 25mm² cable run to each battery port.
Battery settings should be configured to 1 BAT 2 DC with the BMS connected to port 1.
Designed for Large Scale Commercial Energy Storage
The Solis S6 50kW high voltage hybrid inverter is built for demanding commercial and industrial environments where power density, reliability and scalability are critical.
Its high PV capacity, fast backup switching and parallel expansion capability make it ideal for peak shaving, load management and resilient energy infrastructure.
About Solis
Solis inverters are developed by a global research and development team of professors and specialists from multiple countries.
Known for reliability, precise MPPT algorithms and wide operating voltage ranges, Solis delivers high performance inverter and energy storage solutions trusted across residential, commercial and industrial solar markets.
