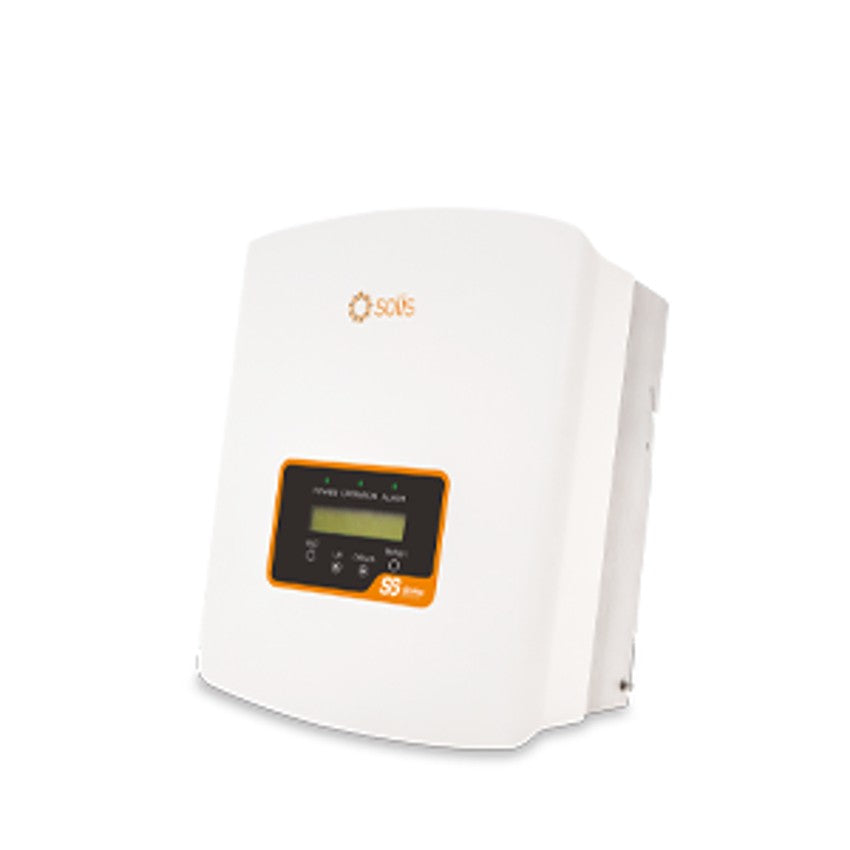

Solis S6 Mini 1kW Single Phase Grid-Tie Inverter with DC Isolator
The Solis S6 Mini Series 1kW grid-tie inverter (part number SOL-1.0-MINI-S6-DC, manufacturer model S6-GR1P1K-M) is a compact, single-phase string inverter with an integrated DC switch, built for small-scale single-tracker PV installations. Rated at 1000 W output with a maximum PV input of 1.5 kW, this single MPPT inverter achieves a maximum efficiency of 96.6% and a Euro efficiency of 95.3%. It is compatible with high-efficiency and bifacial modules, accepting up to 14 A input current and a maximum PV voltage of 600 V. The fanless design produces less than 20 dB(A) and carries an IP66 ingress protection rating. Available from DECO Group, a UK solar wholesaler for professional installers and trade buyers.
Key Technical Details
- DECO part number: SOL-1.0-MINI-S6-DC
- Manufacturer part number: S6-GR1P1K-M
- Inverter type: Single-phase grid-tie string inverter
- Rated output power: 1000 W
- Maximum output power: 1100 W
- Maximum AC power (5 minutes): 1100 W
- Surge AC power (1 second): 1100 W
- Maximum PV input power: 1.5 kW
- Maximum input voltage: 600 V
- MPPT voltage range: 60 V to 500 V
- Rated voltage: 200 V
- DC startup voltage: 60 V
- DC shutdown voltage: 50 V
- Maximum DC input current: 14 A
- MPPT quantity: 1
- Maximum DC inputs: 1
- Maximum efficiency: 96.6%
- Euro efficiency: 95.3%
- Grid voltage: 220 V / 230 V
- Transformer: Transformerless
- Connector: MC4 (1 included)
- Communication: RS485
- Integrated DC switch: Yes
- Cooling: Natural (fanless)
- Noise level: less than 20 dB(A)
- Ingress protection: IP66
- Dimensions: 310 x 373 x 160 mm (W x H x D)
- Weight: 7.4 kg
Key Features
- Super high frequency switching technology achieving 96.6% maximum efficiency
- Wide voltage range with an ultra-low startup voltage of 60 V and maximum PV input voltage of 600 V
- Integrated DC switch for safe PV maintenance and emergency isolation
- Integrated Arc Fault Circuit Interrupter (AFCI) for DC arc-fault circuit protection, proactively reducing fire risk
- Integrated Export Power Manager (EPM) with backflow power control for smart grid requirements
- DRM (Demand Response Mode) integrated for grid compliance
- Fanless natural cooling, producing less than 20 dB(A)
- Compact and lightweight at 7.4 kg for single-person installation
- Compatible with high-efficiency and bifacial solar modules up to 14 A per string
- Precise MPPT algorithm for optimised energy harvesting
System Compatibility
- Compatible with high-efficiency and bifacial modules via MC4 connectors
- Supports optional S3-WIFI-ST WiFi data logging stick for remote monitoring
- RS485 communication port for wired monitoring and control systems
- This inverter does not include a data logger or current transformer. For single inverter deployments, a CT such as SOL-CT-100A-10M is required. For multiple inverter installations, an EPM1 unit or separate data logger is needed.
Installation Notes
- At 7.4 kg and 310 x 373 x 160 mm, this inverter is a straightforward single-person lift and mount
- IP66 rated for both indoor and outdoor installation
- Supply cable must be at least 2.5 mm² in the distribution connection
- Must be installed by a qualified electrician or technician in compliance with local wiring regulations and standards
Warranty
- Standard warranty: 5 years
- Extended warranty options available: 10-year extension (SOL-WAR-10Y-S6-MINI) and additional 10-year extension (SOL-WAR-20Y-S6-MINI)
Common Questions
- What are the dimensions and weight of the Solis S6 Mini 1kW inverter?
- The S6 Mini 1kW measures 310 x 373 x 160 mm (W x H x D) and weighs 7.4 kg, making it a comfortable single-person lift and install.
- Does the Solis S6 Mini 1kW include an integrated DC isolator?
- Yes. This model (S6-GR1P1K-M) includes an integrated DC switch for safe PV maintenance and emergency shutdown.
- What is the maximum PV input power and voltage for the Solis S6 Mini 1kW?
- The inverter accepts a maximum PV input power of 1.5 kW and a maximum input voltage of 600 V, with an MPPT range of 60 V to 500 V and maximum input current of 14 A per string.
- Does the Solis S6 Mini 1kW include monitoring equipment?
- No. A data logger and current transformer are not included. For a single inverter deployment, a CT such as SOL-CT-100A-10M is required. For multiple inverter setups, an EPM1 or separate data logger is needed. An optional S3-WIFI-ST WiFi data logging stick is also available for remote monitoring.
