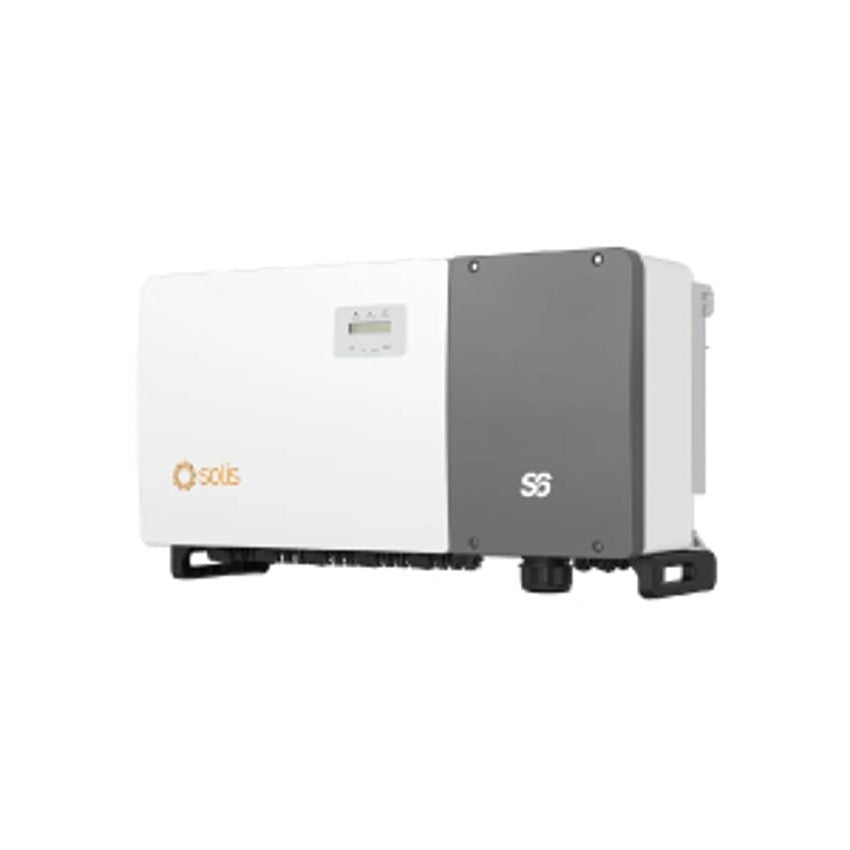

Solis S6-GC80K 80kW Three-Phase 8-MPPT Commercial Grid-Tied Inverter
The Solis S6-GC80K (part number SOL-S6-GC80K) is an 80 kW three-phase, 8-MPPT commercial and industrial grid-tied string inverter. Part of the S6-GC(80-125)K series, it features 8 MPPT trackers with 16 string inputs at up to 21 A per string, support for greater than 150% DC/AC ratio with a maximum PV DC input of 120 kW, and a maximum efficiency of 98.7% (98.3% EU efficiency). With a rated output of 80 kW and maximum output of 88 kW, it is the entry-level model in the S6 C&I series, sharing the same physical platform as the 100 kW, 110 kW, and 125 kW variants. The S6-GC80K includes AI-based AFCI protection, real-time PV grounding detection, intelligent I-V curve scanning, IP66 ingress protection, and dual independent RS485 ports. Supports master-slave export power control with up to 10 units in parallel. G99 certified. Available from DECO Group, a UK-based solar trade wholesaler.
Key Technical Details
- Part number: SOL-S6-GC80K
- Manufacturer model: S6-GC80K
- Inverter type: Three-phase C&I grid-tied string inverter
- Rated AC output power: 80 kW
- Maximum output power: 88 kW
- Maximum apparent output power: 88 kVA
- Rated grid voltage: 3/N/PE, 220 V / 380 V, 230 V / 400 V
- Rated grid frequency: 50 / 60 Hz
- Rated grid output current: 121.6 A / 115.5 A
- Maximum output current: 133.7 A
- Power factor: greater than 0.99 (0.8 leading to 0.8 lagging)
- THDi: less than 3%
- Maximum efficiency: 98.7%
- EU efficiency: 98.3%
- Transformer: None (transformerless)
- Maximum PV DC input power: 120 kW
- Maximum DC input voltage: 1,100 V
- Rated DC voltage: 600 V
- MPPT voltage range: 160 V to 1,000 V
- DC startup voltage: 180 V
- Maximum input current: 4 x (42 A / 36 A)
- Maximum short-circuit current: 8 x 50 A
- MPPT quantity: 8
- Maximum string inputs: 16 (2 per MPPT)
- Maximum input current per string: 18 A / 21 A
- DC/AC ratio: greater than 150%
- Integrated DC switch: Yes
- Integrated AC switch: Optional
- Integrated EPM function: Optional (up to 10 devices)
- AFCI 2.0: Optional (AI-based)
- PID recovery: Optional
- Surge protection: Type II (DC and AC)
- Strings monitoring: Yes
- I-V curve scanning: Yes
- Night SVG function: Yes
- Communication: RS485 (dual independent); optional WiFi, GPRS, PLC
- Display: LCD
- DC connection: MC4
- AC connection: OT terminal (max 240 mm²)
- Cooling: Intelligent fan-cooling
- Ingress protection: IP66
- Operating ambient temperature: -30°C to +60°C
- Relative humidity: 0% to 100%
- Maximum operating altitude: 4,000 m
- Self-consumption (night): less than 2 W
- Dimensions: 1,014 x 567 x 345 mm (W x H x D)
- Weight: 93 kg
Key Features
- 80 kW rated output with 88 kW maximum and 120 kW DC input for greater than 150% DC/AC oversizing
- 8 MPPT trackers with 16 string inputs for flexible array design
- Up to 21 A per string, compatible with high-power 182 mm and 210 mm PV modules
- 98.7% maximum efficiency and 98.3% EU efficiency
- AI-based millisecond arc protection (AFCI 2.0, optional)
- Real-time PV grounding detection and protection
- Intelligent I-V curve scanning and strings monitoring
- IP66 ingress protection for outdoor installation
- Dual independent RS485 ports for third-party integration
- Master-slave export power control with up to 10 units in parallel
- Supports single and multiple genset applications without an external genset controller
- SolisCloud ready for remote monitoring, diagnostics, and firmware upgrades
- Night SVG function
System Compatibility
- Part of the Solis S6-GC(80-125)K three-phase C&I inverter series
- MC4 DC connectors; OT terminal AC connection (max 240 mm²)
- No WiFi/USB datalogger included in the box
- Optional export power meter: METER-3PH-CT3
- Optional WiFi/LAN logger: S2-WL-ST-USB
- Optional PLC communication
- EPM still required for the S6-GC(80-125)K range (UK installations)
- Extended warranty available: SOL-WAR-10Y-S6-GC80-125K (10-year extension)
Protection Features
- AI-based AFCI 2.0 (optional)
- Real-time PV grounding detection and protection
- Strings monitoring
- DC reverse polarity protection
- DC short-circuit protection
- Output overcurrent protection
- Surge protection: Type II (DC and AC)
- Anti-islanding protection
- Temperature protection
- Arc fault and RSD co-operation (optional)
- IP66 ingress protection
Certifications and Compliance
- G99
- IEC 61727
- EN 50549-1/2
- VDE 4110
- IEC/EN 62109-1/2 (Safety)
- IEC/EN 61000-6-2/4 (EMC)
- NRS 097-2-1
- CE certified
Included Components
- 1 x Solis S6-GC80K inverter
- 1 x Mounting bracket
- 2 x Fastening screws
- 16 x DC connectors
- 1 x User manual
Installation Notes
- At 93 kg, a minimum of two people are required for safe handling and mounting
- IP66 rated for indoor or outdoor installation
- Install vertically or with a slight backward tilt up to 15 degrees
- Maintain at least 500 mm clearance between inverters and 1,000 mm above for ventilation
- Avoid direct sunlight where possible to reduce thermal derating
- Inverter surface can exceed 75°C during operation
- For startup: AC ON first, then DC ON. For shutdown: Grid Off, then AC OFF, then DC OFF
- Must be installed by a qualified electrician or competent commercial solar installer
Warranty
- Standard warranty: 5 years
- Extended warranty: available up to 20 years (SOL-WAR-10Y-S6-GC80-125K for 10-year extension)
Common Questions
Click a question below to reveal the answer.
How does the Solis S6-GC80K compare to the larger S6 models?
The S6-GC80K shares the same physical platform (1,014 x 567 x 345 mm, 93 kg) and 98.7% max efficiency as the 100 kW, 110 kW, and 125 kW variants. It has 8 MPPTs with 16 strings (vs 10 MPPTs/20 strings on the 100–125 kW models). It accepts up to 120 kW DC input and delivers 80 kW rated / 88 kW max output.
How many MPPT inputs does the Solis S6-GC80K have?
The S6-GC80K has 8 MPPT trackers with 16 string inputs (2 per MPPT), supporting up to 21 A per string.
Does the Solis S6-GC80K include monitoring equipment?
No. There is no WiFi/USB datalogger in the box. Use the S2-WL-ST-USB for WiFi/LAN connectivity, and the METER-3PH-CT3 for export power management. An EPM is still required for UK installations.
Can multiple Solis S6-GC80K inverters be installed in parallel?
Yes. The S6-GC80K supports master-slave export power control with up to 10 units in parallel.
