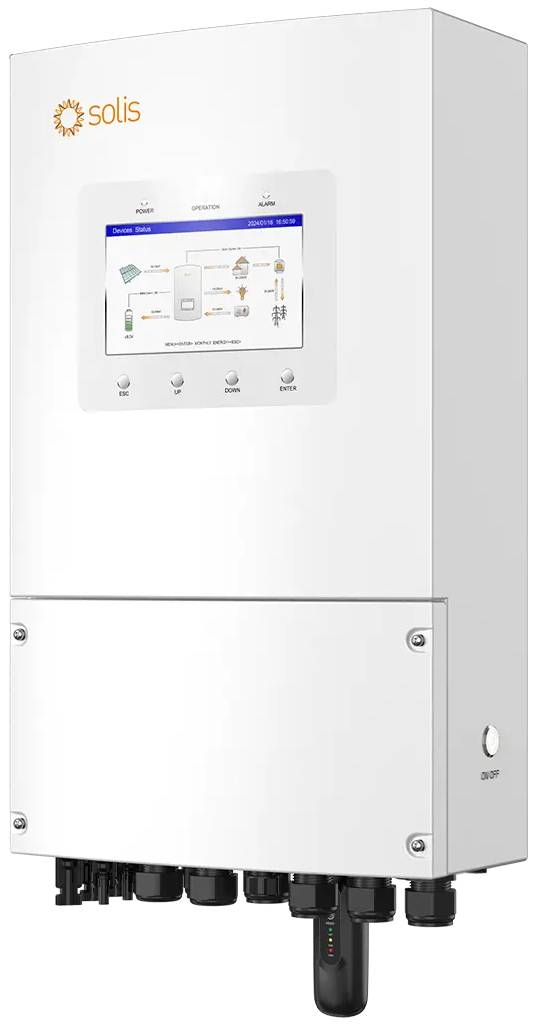

Solis S6-EH1P6K-L-PLUS 6kW Single-Phase Low-Voltage Hybrid Inverter
The Solis S6-EH1P6K-L-PLUS (part number SOL-S6-EH1P6K-L-PLUS-5Y) is a 6 kW single-phase low-voltage hybrid inverter from the Solis S6 PLUS range. Designed for residential solar battery storage, it features 2 MPPT trackers with 2 string inputs, a maximum usable PV input of 9.6 kW (160% oversizing), 48 V battery support (40–60 V, lithium or lead-acid), backup switching in less than 10 ms, and 200% overload for 10 seconds in off-grid mode. With 135 A maximum battery charge/discharge current, generator connectivity, AC coupling for existing grid-tied systems, parallel operation of up to 6 units, smart load management, and AI-powered VPP-ready energy management, the S6-EH1P6K-L-PLUS is a feature-rich residential hybrid inverter. IP66 rated with a 7-inch touchscreen and Bluetooth. CT included. Available from DECO Group, a UK-based solar trade wholesaler.
Key Technical Details
PV Input
- Recommended maximum PV array size: 12 kW
- Maximum usable PV input power: 9.6 kW
- Maximum PV input voltage: 500 V
- Rated PV voltage: 330 V
- MPPT voltage range: 90 V to 435 V
- Full load MPPT voltage range: 300 V to 435 V
- DC startup voltage: 90 V
- MPPT quantity: 2
- Maximum string inputs: 2 (1 per MPPT)
- Maximum PV input current: 16 A / 16 A per MPPT
- Maximum PV short-circuit current: 20 A / 20 A per MPPT
- PV oversizing: up to 160%
- PV connection: MC4
Battery
- Battery type: Li-ion / Lead-acid
- Battery voltage range: 40 V to 60 V (48 V class)
- Maximum charge/discharge power: 6 kW
- Maximum charge/discharge current: 135 A
- Battery communication: CAN / RS485
- Battery connection: Terminal block
- Battery charged by PV max efficiency: 95.3%
- Battery charged by AC max efficiency: 93.9%
- Battery discharged max efficiency: 93.8%
AC Output (Grid-Connected)
- Rated AC output power: 6 kW
- Maximum apparent output power: 6 kVA
- Rated grid voltage: L/N/PE, 220 V / 230 V
- Rated grid frequency: 50 / 60 Hz
- Rated grid output current: 27.3 A / 26.1 A
- Power factor: greater than 0.99 (0.8 leading to 0.8 lagging)
- THDi: less than 3%
- Grid input voltage range: 187 V to 253 V
- Maximum grid input current: 40 A
- Maximum efficiency: 96.2%
- EU efficiency: 96.1%
Backup / Off-Grid
- Rated backup output power: 6 kW
- Maximum apparent backup output power: 2 x rated power for 10 seconds (200% overload)
- Backup switch time: less than 10 ms
- Maximum AC passthrough current: 40 A
- THDv at linear load: less than 2%
- PV-only off-grid operation: supported
- Smart load management for critical load prioritisation
General
- Generator connectivity: Yes, with auto control
- Parallel operation: up to 6 units
- AC coupling: supported for existing grid-tied PV systems
- AI-powered energy management, VPP-ready
- Display: 7.0-inch LCD with Bluetooth and app
- Communication: WiFi + LAN + Bluetooth standard; CAN-BMS, CAN-Parallel x 2, RS485-Meter, RS485, DRM, DI, DO x 2
- Cooling: Natural cooling
- Ingress protection: IP66
- Operating temperature: -25°C to +60°C
- Maximum operating altitude: 3,000 m
- AC connection: Terminal block
- Dimensions: 335 x 560 x 253 mm (W x H x D)
- Weight: 23.5 kg
Key Features
- 6 kW single-phase hybrid inverter with 48 V battery storage (lithium or lead-acid)
- 2 MPPT trackers with up to 160% PV oversizing (9.6 kW usable input)
- Backup switching in less than 10 ms for uninterrupted power supply
- 200% overload for 10 seconds for motor, pump, and A/C start-up
- 135 A maximum battery charge/discharge current
- PV-only off-grid operation to reduce upfront battery costs
- Smart load management to extend backup time for critical loads
- Generator connectivity with automatic on/off control
- AC coupling for upgrading existing grid-connected PV systems
- Parallel operation of up to 6 units for scalable capacity
- AI-powered energy management, VPP-ready for grid services revenue
- Customisable battery backup level
- IP66 rated with natural cooling for outdoor installation
- 7-inch touchscreen with Bluetooth and app for local commissioning
- WiFi + LAN standard for SolisCloud monitoring
Included Components
- 1 x Solis S6-EH1P6K-L-PLUS hybrid inverter
- 1 x CT clamp
System Compatibility
- Part of the Solis S6-EH1P(3-10)K-L-PLUS range
- Compatible with lithium-ion and lead-acid batteries in the 40–60 V range
- Refer to the Solis Battery Compatibility List for confirmed compatible models
- DC battery cable is not included
- AC coupling supported for existing grid-tied PV systems
- Up to 6 units in parallel
Installation Notes
- At 23.5 kg, single-person installation is feasible
- IP66 rated for indoor or outdoor installation
- Mount vertically on a non-flammable, load-bearing surface capable of supporting at least 4 times the inverter weight
- Maintain 150 mm minimum clearance between adjacent equipment, unit at least 800 mm above floor level
- Install the supplied CT at the grid connection point with the arrow pointing toward the grid
- Must be installed by a qualified electrician or technician
Warranty
- Standard warranty: 5 years
Common Questions
Click a question below to reveal the answer.
What is the difference between the Solis 6kW and 10kW PLUS hybrid inverters?
Both are in the S6 PLUS single-phase LV hybrid range with the same feature set. The 6 kW has 9.6 kW max usable PV input (vs higher on the 10 kW), 135 A max battery current (vs 190 A), and smaller dimensions at 335 x 560 x 253 mm (23.5 kg). Both support 48 V batteries, less than 10 ms backup switching, 200% overload, and up to 6 units in parallel.
Can I keep my existing grid-tied solar inverter?
Yes. The S6 PLUS supports AC coupling, allowing connection to an existing PV grid-tied inverter for export control and off-grid use.
Does this inverter come with a battery cable?
No. A DC cable for connecting to battery storage is not included. The inverter comes with a CT clamp only.
Does this inverter support backup power?
Yes. It provides backup switching in less than 10 ms with 200% overload for 10 seconds, and smart load management for critical load prioritisation.
Is this inverter VPP-ready?
Yes. The S6 PLUS features AI-powered energy management and is VPP-ready, enabling potential revenue from grid services participation.
