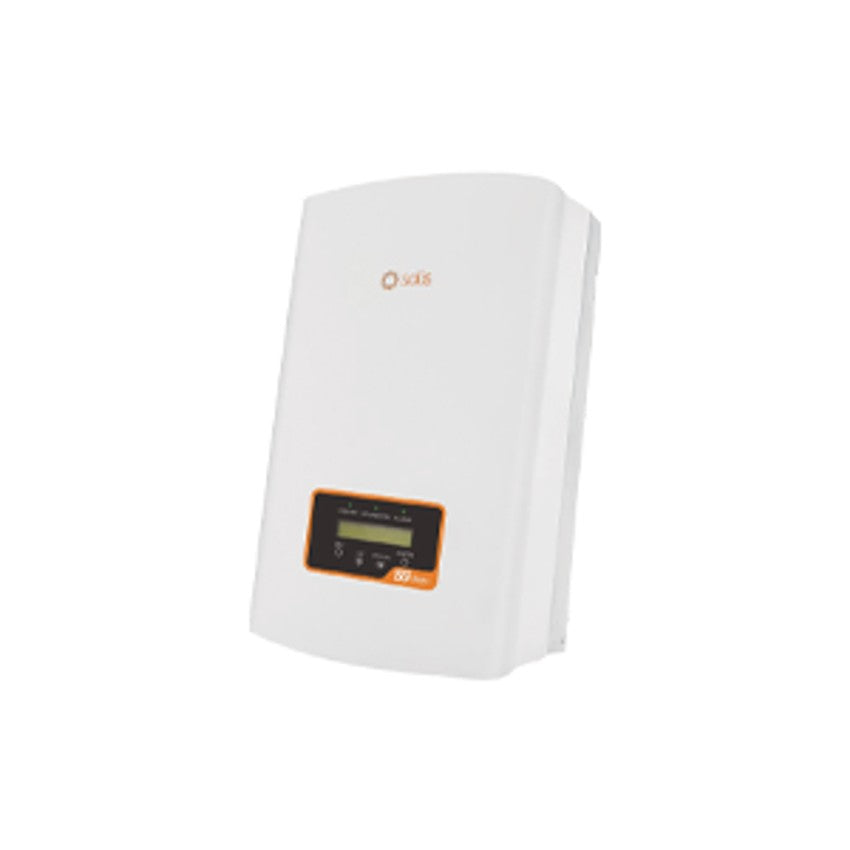

Solis 3kW S6 Dual MPPT Single-Phase Grid-Tie Inverter with DC Isolator (EU, No Export Limitation)
The Solis 3kW S6 EU is a single-phase, dual MPPT grid-tie inverter rated at 3,000W from the Ginlong Solis Series 6 range. This EU variant (SOL-3.0-S6-DT-EU-DC) ships without an export limitation function and includes CTs only; a separate meter is required to enable export limitation. The transformerless inverter accepts up to 4,500W of PV input across two independent MPPT trackers, each supporting 14A maximum input current for compatibility with high-efficiency and bifacial modules. Maximum efficiency is 97.1% with Euro efficiency of 96.7%. The unit includes an integrated DC isolator, integrated AFCI arc-fault protection, and an IP66-rated enclosure. Also referenced as S6-GR1P3K-DC. Available from DECO Group, a UK-based solar wholesaler for professional trade installers.
Key Technical Details
- Brand: Solis (Ginlong Solis)
- Model: S6 Series, 3kW Dual Tracker (EU variant)
- Part number (SKU): SOL-3.0-S6-DT-EU-DC
- MPN: S6-GR1P3K-DC
- Supplier part number: S6-GR1P3K-EU
- Inverter type: Grid-tie, transformerless
- Rated output power: 3,000W
- Max PV input power: 4,500W
- Max AC output power (5 minutes): 3,300W
- Surge AC power (1 second): 3,300W
- Phase configuration: Single phase
- MPPT quantity: 2
- Max DC inputs: 2
- Max input voltage: 600V
- MPPT voltage range: 90V to 520V
- DC start-up voltage: 120V
- DC shutdown voltage: 90V
- Max DC current: 28A (14A per string)
- Maximum efficiency: 97.1%
- Euro efficiency: 96.7%
- Connector type: MC4 (2 pairs included)
- Integrated DC switch: Yes
- Protection rating: IP66
- Cooling: Natural
- Dimensions: 310 x 543 x 160mm (W x H x D)
- Weight: 11.2kg
- Warranty: 5 years standard (extendable to 10 or 20 years)
Key Features
- Super high frequency switching technology delivers a maximum efficiency of 97.1% and Euro efficiency of 96.7%.
- Dual MPPT design with precise MPPT algorithm enables independent tracking across two strings for improved energy yield on split or multi-orientation arrays.
- 14A maximum input current per string, compatible with high-efficiency and bifacial modules.
- Wide MPPT voltage range of 90V to 520V with a maximum PV input voltage of 600V.
- Integrated AFCI (DC arc-fault circuit protection) proactively reduces fire risk on the DC side.
- Integrated DC switch provides emergency shutdown capability and safe isolation for PV maintenance.
- Integrated Export Power Manager (EPM) with DRM (Demand Response Mode) and backflow power control for smart grid compliance.
- IP66-rated enclosure with natural cooling for reliable outdoor installation.
- Compact and lightweight at 11.2kg for straightforward installation.
System Compatibility
- Compatible with high-efficiency and bifacial PV modules up to 14A per string.
- This EU variant (SOL-3.0-S6-DT-EU-DC) does not include an export limitation function. The unit ships with CTs only; a separate meter is required to enable export limitation.
- RS485 communication with optional S3-WIFI-ST WiFi data logging stick for real-time remote monitoring via SolisCloud.
Installation Notes
- IP66-rated enclosure allows installation in exposed outdoor locations without additional weatherproofing.
- Natural cooling design with no moving parts, reducing long-term maintenance requirements.
- Dimensions of 310 x 543 x 160mm (W x H x D) and a weight of 11.2kg allow for single-person handling and installation.
- Two pairs of MC4 connectors included for direct connection to PV string inputs.
- Must be installed by a qualified electrician or technician. All installations must adhere to local wiring regulations and standards.
Certifications and Compliance
- NRS-097 certified (South Africa).
Warranty
- 5-year standard manufacturer warranty.
- Optional warranty extensions available to 10 or 20 years.
Common Questions
- What is the difference between the SOL-3.0-S6-DT-EU-DC and the SOL-3.0-S6-DT-DC?
- The EU variant (SOL-3.0-S6-DT-EU-DC) does not include an export limitation function and ships with CTs only. A separate meter is required to enable export limitation. The standard variant (SOL-3.0-S6-DT-DC) includes built-in export limitation via the integrated EPM, though a CT clamp is still required and sold separately.
- What is the maximum PV input for the Solis 3kW S6 EU Dual MPPT?
- The inverter accepts up to 4,500W of PV input power across two independent MPPT trackers, with a maximum input voltage of 600V and 14A maximum current per string.
- What are the dimensions and weight of the Solis 3kW S6 EU?
- The inverter measures 310 x 543 x 160mm (W x H x D) and weighs 11.2kg.
- How many MPPT trackers does the Solis 3kW S6 EU have?
- The Solis 3kW S6 EU features a dual MPPT design with two independent trackers, each supporting up to 14A input current. This allows two separate PV strings to be optimised independently for split or multi-orientation roof layouts.
About Solis
Since 2005, Ginlong Solis have been at the forefront of the solar inverter industry, recognised internationally for reliable and innovative energy management solutions. The Series 6 range represents the latest generation of Solis grid-tied inverters, developed by a global R&D team from eight countries delivering precise MPPT algorithms, wide input voltage ranges, and maximum efficiencies exceeding 97%.
DECO Group stocks the full Solis S6 inverter range in standard and EU configurations, alongside compatible CTs, meters, export power managers, and WiFi monitoring accessories. Browse our Solis catalogue for the complete selection of single-phase grid-tie inverters and system accessories.
About DECO Group
We are a UK solar trade wholesaler and distributor serving MCS-accredited installers and qualified electrical contractors. Our Solis inverter range spans both standard and EU variant models across the S6 series, with full accessory support including CTs, meters, data loggers, and export management solutions for every installation scenario.
