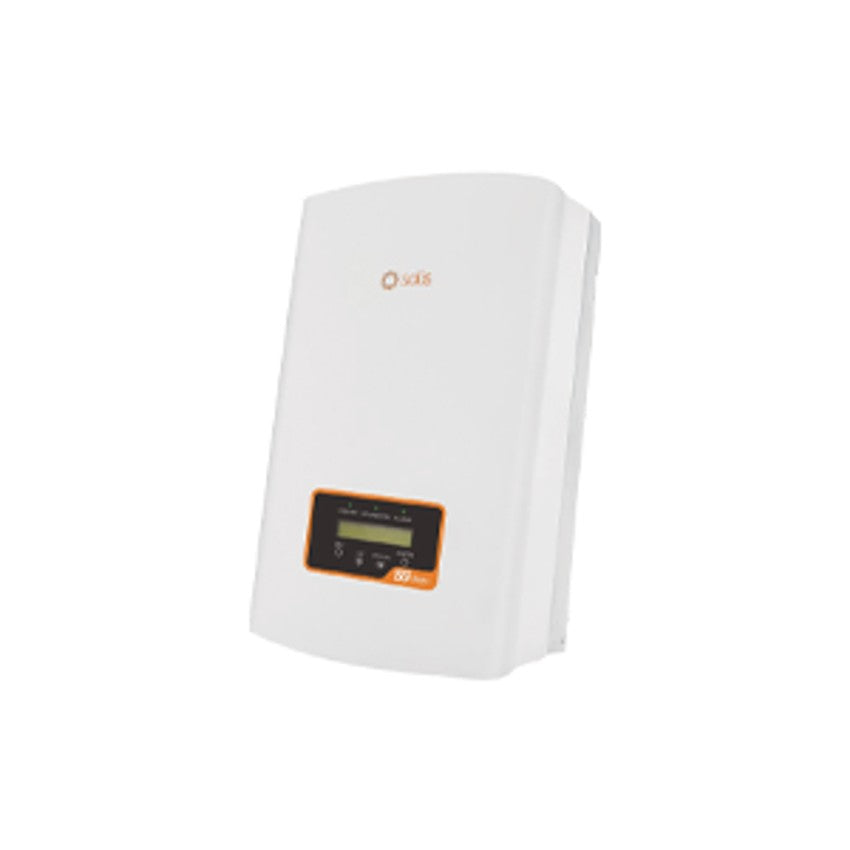

Solis 3.6kW S6 Dual MPPT Single-Phase Grid-Tie Inverter with Integrated DC Isolator
The Solis 3.6kW S6 is a single-phase, dual MPPT grid-tie inverter rated at 3,600W from the Ginlong Solis Series 6 range. This transformerless inverter accepts up to 5,400W of PV input across two independent MPPT trackers, each supporting 14A maximum input current for compatibility with high-efficiency and bifacial modules. Delivering a maximum efficiency of 97.3% and Euro efficiency of 96.6%, the S6 3.6kW is housed in an IP66-rated enclosure with natural cooling and ships with an integrated DC isolator, integrated AFCI arc-fault protection, and a built-in Export Power Manager. Manufacturer part number: SOL-3.6-S6-DT-DC (MPN: S6-GR1P3.6K). Available from DECO Group, a UK solar wholesaler for professional trade installers.
Key Technical Details
- Brand: Solis (Ginlong Solis)
- Model: S6 Series, 3.6kW Dual Tracker
- Part number (SKU): SOL-3.6-S6-DT-DC
- MPN: S6-GR1P3.6K
- Inverter type: Grid-tie, transformerless
- Rated output power: 3,600W
- Max PV input power: 5,400W
- Max AC output power (5 minutes): 4,000W
- Surge AC power (1 second): 4,000W
- Phase configuration: Single phase
- Rated voltage: 330V
- Grid voltage: 220V / 230V
- MPPT quantity: 2
- Max DC inputs: 2
- Max input voltage: 600V
- MPPT voltage range: 90V to 520V
- DC start-up voltage: 120V
- DC shutdown voltage: 90V
- Max DC current: 28A (14A per string)
- Maximum efficiency: 97.3%
- Euro efficiency: 96.6%
- Connector type: MC4 (4 pairs included)
- Communication: RS485
- Integrated DC switch: Yes
- Protection rating: IP66
- Cooling: Natural
- Dimensions: 310 x 543 x 160mm (W x H x D)
- Weight: 13.51kg
- Warranty: 5 years standard
Key Features
- Super high frequency switching technology delivers a maximum efficiency of 97.3% and Euro efficiency of 96.6%.
- Dual MPPT design with precise MPPT algorithm enables independent tracking across two strings for improved energy yield on split or multi-orientation arrays.
- 14A maximum input current per string, compatible with high-efficiency and bifacial modules.
- Wide MPPT voltage range of 90V to 520V with a maximum PV input voltage of 600V and start-up voltage of 120V.
- Integrated AFCI (DC arc-fault circuit protection) proactively reduces fire risk on the DC side.
- Integrated DC switch provides emergency shutdown capability and safe isolation for PV maintenance.
- Export limitation built in via the integrated Export Power Manager (EPM). Requires a CT clamp, sold separately.
- DRM (Demand Response Mode) integrated for smart grid compliance.
- Adaptive weak grid functionality for reliable operation on constrained network connections.
- 24-hour load consumption monitoring capability.
- IP66-rated enclosure with natural cooling for reliable outdoor installation.
- RS485 communication with optional S3-WIFI-ST WiFi data logging stick for remote monitoring.
System Compatibility
- Compatible with high-efficiency and bifacial PV modules up to 14A per string.
- This inverter does not include a data logger or current transformer (CT). Additional accessories are required for monitoring and export limitation.
- Export limitation requires a CT clamp (not included). For installations where the inverter is within 10m of the incoming power supply, use CT part number SOL-CT-100A-10M. A firmware upgrade to the latest version is required for this CT to function.
- For installations where the distance from inverter to incoming supply exceeds 10m, use the Solis Export Power Manager (SOL-EPM1-5G) instead.
- For single inverter deployments without an EPM, the CT requires a separate data logger.
- Optional S3-WIFI-ST WiFi data logging stick available for real-time remote monitoring via SolisCloud.
Installation Notes
- IP66-rated enclosure allows installation in exposed outdoor locations without additional weatherproofing.
- Natural cooling design with no moving parts, reducing long-term maintenance requirements.
- Dimensions of 310 x 543 x 160mm (W x H x D). Weight of 13.51kg is manageable for a single-person install but may benefit from assistance depending on mounting height.
- Four pairs of MC4 connectors included.
- Must be installed by a qualified electrician or technician. All installations must adhere to local wiring regulations and standards.
Certifications and Compliance
- NRS-097-2-1 certified (South Africa), pending CoCT approval.
Warranty
- 5-year standard manufacturer warranty.
Common Questions
- What is the maximum PV input for the Solis 3.6kW S6 Dual MPPT?
- The Solis 3.6kW S6 accepts up to 5,400W of PV input power across two independent MPPT trackers, with a maximum input voltage of 600V and 14A maximum current per string.
- What are the dimensions and weight of the Solis 3.6kW S6?
- The inverter measures 310 x 543 x 160mm (W x H x D) and weighs 13.51kg.
- What CT clamp is needed for export limitation on the Solis 3.6kW S6?
- For installations within 10m of the incoming power supply, use the SOL-CT-100A-10M (firmware upgrade required). For distances greater than 10m, use the Solis Export Power Manager (SOL-EPM1-5G). Note that neither the CT nor the data logger is included with this inverter.
- What is the difference between the Solis 3.6kW S6 Dual MPPT and the Solis 3.6kW Mini S6?
- The 3.6kW S6 Dual MPPT (SOL-3.6-S6-DT-DC) features two independent MPPT trackers at 14A each for split or multi-orientation arrays, and weighs 13.51kg. The 3.6kW Mini S6 (SOL-3.6-MINI-S6-DC) has a single MPPT tracker with 19A input current in a lighter 7.7kg form factor.
