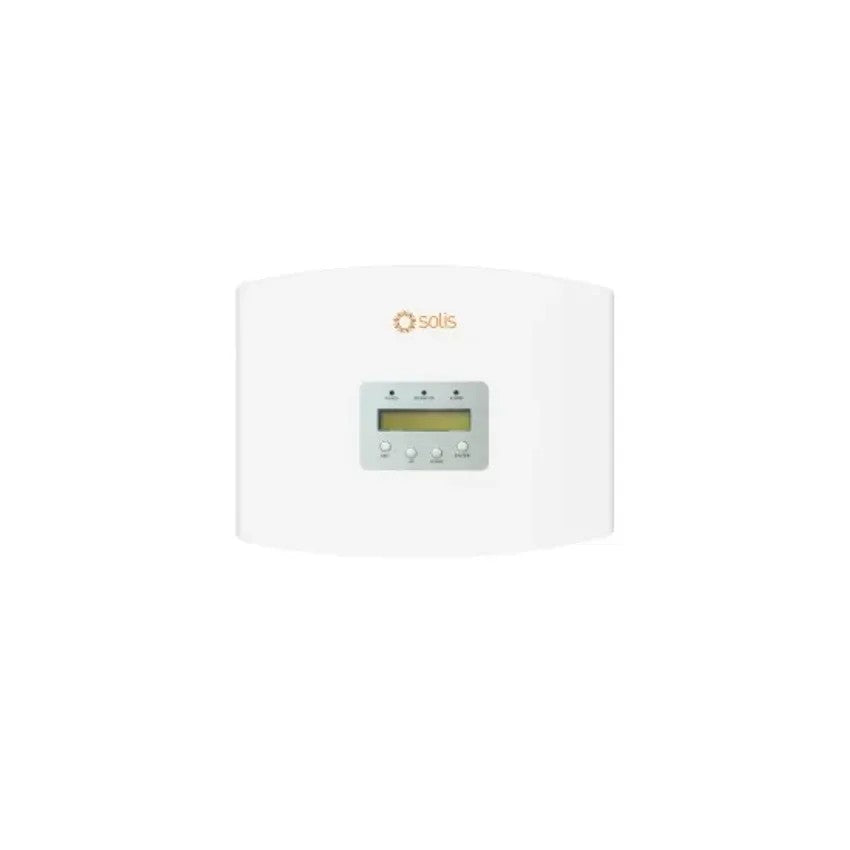

Solis Export Power Manager EPM3 5G PRO Three-Phase
The Solis EPM3 5G PRO is a three-phase export power manager designed for smart energy management across residential and commercial PV systems. This unit provides active power limitation and intelligent control for up to 20 Solis inverters via RS485 wired communication, with support for both single-phase and three-phase Solis inverter products up to 480V. The EPM3 5G PRO enables installers to set precise export values that satisfy local grid regulatory requirements while maximising self-consumption of locally generated PV power. The UK version ships with an integrated Solis datalogger and energy meter in the box. Manufacturer part number: SOL-EPM3-5G-PRO (MPN: Solis-EPM3-5G-PRO). Available from DECO Group, a UK solar wholesaler supplying professional installers.
Key Technical Details
- Brand: Solis (Ginlong Solis)
- Model: EPM3 5G PRO (Export Power Manager, 5th Generation, Three-Phase)
- Part number (SKU): SOL-EPM3-5G-PRO
- MPN: Solis-EPM3-5G-PRO
- Phase configuration: Three-phase
- Rated voltage: 1/N/PE, 230V; 3/(N)/PE, 400V; 3/PE, 480V
- Input voltage range: 100 ~ 300V (L-N); 175 ~ 519V (L-L)
- Input frequency range: 45 ~ 65Hz
- Communication with inverters: RS485 (wired)
- Maximum supported inverters: 20
- Remote monitoring: WiFi / 4G / LAN stick (optional)
- Power control accuracy: 1% Pn
- Self-consumption: Less than 6W
- Failsafe function: Yes
- Remote upgrade: Yes
- Operating temperature range: -25 to +60°C
- Ingress protection: IP65
- Weight: 2.1kg (unit without CT or meter); 5.4kg (total shipped weight)
Key Features
- Simultaneous intelligent control of up to 20 Solis inverters, supporting inverters of different power ratings within the same system.
- Active power limitation and control at the grid connection point for compliance with local network export regulations and zero-export requirements.
- Power control accuracy of 1% Pn improves system self-consumption rates.
- LCD user interface provides an overview of all inverter and load energy data, including power generation and load consumption monitoring.
- Compatible with both single-phase and three-phase Solis inverter products up to 480V.
- IP65-rated enclosure suitable for both indoor and outdoor installation.
- Built-in failsafe function and remote upgrade capability.
- Optional remote monitoring connectivity via WiFi, 4G, or LAN stick.
- Supports generator integration via the Solis 3PH Eastron SDM630 V2 meter.
System Compatibility
- Compatible with Solis single-phase and three-phase inverter products up to 480V.
- Communicates with inverters via RS485 wired connection, supporting inverters with different power levels simultaneously.
- CT clamps are not included and must be sourced separately.
- For generator integration, use the Solis 3PH Eastron SDM630 V2 meter.
- Refer to the Solis application note for details on configuring zero-export requirements.
Installation Notes
- IP65 protection rating allows installation in both indoor and outdoor locations.
- Operating temperature range of -25 to +60°C covers typical UK installation environments year-round.
- Unit weight of 2.1kg (without CT and meter) allows for straightforward single-person mounting.
- LCD interface provides on-site access to inverter operating data and load consumption without requiring a separate monitoring device.
- Must be installed by a qualified electrician or technician. All installations must adhere to local wiring regulations and standards.
Included Components
- Solis EPM3 5G PRO unit.
- Solis datalogger (UK version).
- Energy meter.
- CT clamps are not included and must be purchased separately.
Common Questions
- How many inverters can the Solis EPM3 5G PRO control?
- The EPM3 5G PRO supports intelligent control and monitoring of up to 20 Solis inverters simultaneously via RS485 wired connection, including inverters of different power ratings.
- Is the Solis EPM3 5G PRO compatible with single-phase inverters?
- Yes. The EPM3 5G PRO is a three-phase unit but works with both Solis single-phase and three-phase inverter products up to 480V.
- Are CT clamps included with the Solis EPM3 5G PRO?
- No. CT clamps are not included and must be sourced separately. The UK version ships with a Solis datalogger and energy meter in the box.
- What is the difference between the Solis EPM1 5G and the EPM3 5G PRO?
- The EPM1 5G (SOL-EPM1-5G) is designed for single-phase systems only. The EPM3 5G PRO (SOL-EPM3-5G-PRO) is a three-phase unit that supports both single-phase and three-phase Solis inverters up to 480V, with a wider input voltage range and generator integration capability via the Eastron SDM630 V2 meter.
