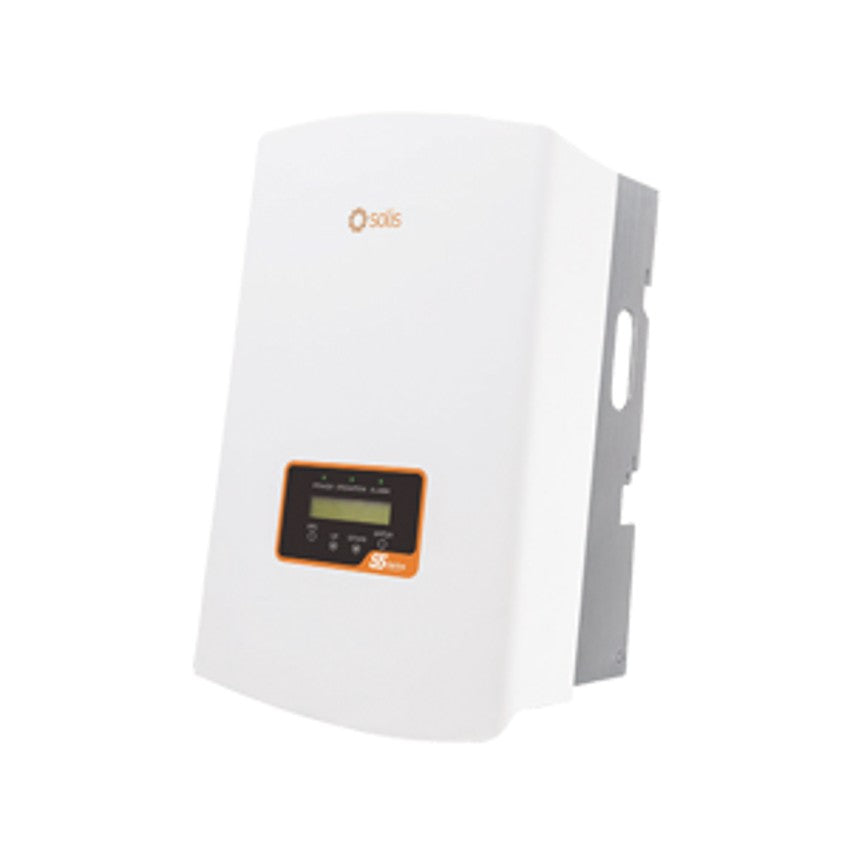

Solis S5-GR3P8K 8kW Three-Phase 2-MPPT Grid-Tied Inverter
The Solis S5-GR3P8K (part number SOL-S5-GR3P-8K-DC) is an 8 kW three-phase, 2-MPPT grid-tied string inverter from the Solis S5 GR3P series. Part of the S5-GR3P(3-20)K range, it features 2 MPPT trackers with 2 string inputs at 16 A per string, a maximum PV DC input of 12 kW (150% DC/AC ratio), and a maximum efficiency of 98.5% (97.9% EU efficiency). With a maximum output of 8.8 kW, integrated AFCI arc-fault protection, IP66 ingress protection, and SolisCloud remote monitoring capability, the S5-GR3P8K is a compact and lightweight three-phase inverter for residential PV systems. G98/G99 certified. Available from DECO Group, a UK-based solar trade wholesaler.
Key Technical Details
- Part number: SOL-S5-GR3P-8K-DC
- Supplier part number: S5-GR3P8K
- Inverter type: Three-phase grid-tied string inverter
- Rated AC output power: 8 kW
- Maximum AC output power: 8.8 kW
- Surge AC power (1 second): 8.8 kW
- Maximum efficiency: 98.5%
- EU efficiency: 97.9%
- Transformer: None (transformerless)
- Maximum PV DC input power: 12 kW
- DC/AC ratio: 150%
- Maximum DC input voltage: 1,100 V
- MPPT voltage range: 180 V to 1,000 V
- DC startup voltage: 180 V
- DC shutdown voltage: 160 V
- Maximum DC input current: 32 A total (16 A per string)
- MPPT quantity: 2
- Maximum DC inputs: 2 (1 per MPPT)
- Connector: MC4 (4 included)
- Integrated DC switch: Yes
- AFCI: Yes (integrated DC arc-fault circuit protection)
- Surge protection: Type II (DC and AC)
- DC reverse polarity protection: Yes
- Communication: RS485; optional WiFi, GPRS
- Ingress protection: IP66
- Weight: 17.8 kg
Key Features
- 8 kW rated output with 8.8 kW maximum and 12 kW DC input for 150% DC/AC oversizing
- 2 MPPT trackers with 2 string inputs for split-array flexibility
- 98.5% maximum efficiency and 97.9% EU efficiency
- Integrated AFCI protection for proactive DC arc-fault fire risk reduction
- IP66 rated for dependable outdoor installation
- Compact and lightweight at 17.8 kg
- Export power control support with compatible accessories
- SolisCloud ready for remote monitoring
System Compatibility
- Part of the Solis S5-GR3P(3-20)K series
- MC4 DC connectors; AC quick connection plug
- This inverter does not include a data logger, CT, meter, or export power manager
- For export power control of a single inverter: use the SOL-METER-3PH-CT3 (requires a data logging stick)
- For export power control of multiple inverters: use the EPM3-5G-PLUS (has built-in data logger)
- Extended warranty available: SOL-WAR-10Y-S5-GR3PK (5 additional years) or SOL-WAR-20Y-S5-GR3PK (15 additional years)
Certifications and Compliance
- G98 / G99
- G100
- EN 50549
- NRS 097-2-1
- CE certified
Installation Notes
- At 17.8 kg, single-person installation is feasible
- IP66 rated for indoor or outdoor installation
- Must be installed by a qualified electrician or technician
Warranty
- Standard warranty: 5 years (10 years standard in the Netherlands, Belgium, France, Germany, Poland, and Italy)
- Extended warranty: extendable to 10 years (SOL-WAR-10Y-S5-GR3PK) or 20 years (SOL-WAR-20Y-S5-GR3PK)
Common Questions
Click a question below to reveal the answer.
Where does the 8kW sit in the Solis GR3P range?
The 8 kW sits between the 6 kW and 10 kW models, all sharing the 2 MPPT / 2 string architecture with natural convection cooling. The 12/15/20 kW models step up to 4 string inputs and fan cooling. All models in the range use the same warranty extension parts.
Does the Solis S5-GR3P8K include monitoring equipment?
No. Data logger, CT, meter, and export power manager are sold separately.
Can I extend the warranty?
Yes. The standard 5-year warranty (10 years in selected EU countries) can be extended to 10 or 20 years.
