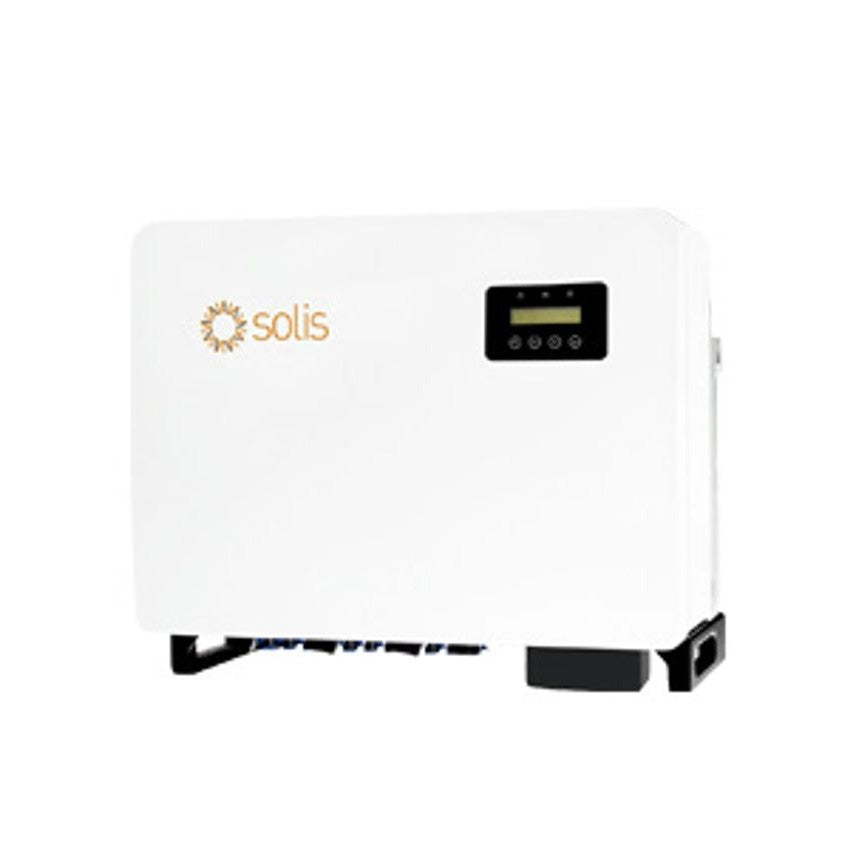

Solis S5-GC60K 60kW Three-Phase 6-MPPT Commercial Grid-Tied Inverter
The Solis S5-GC60K (part number SOL-S5-GC60K-DC) is a 60 kW three-phase, 6-MPPT commercial and industrial grid-tied string inverter from the Solis S5 series. It features 6 MPPT trackers with 12 string inputs (2 per MPPT) at 32 A per MPPT and 16 A per string, a maximum PV DC input of 90 kW (150% DC/AC ratio), and a maximum efficiency of 98.7% (98.4% EU efficiency). With a maximum output of 66 kW, IP66 ingress protection, C5 anti-corrosion rating, integrated AFCI arc-fault protection, intelligent string monitoring with I-V curve scanning, and SolisCloud remote monitoring capability, the S5-GC60K is designed for commercial rooftop, industrial, and agricultural PV installations. G99 certified. Available from DECO Group, a UK-based solar trade wholesaler.
Key Technical Details
- Part number: SOL-S5-GC60K-DC
- Supplier part number: S5-GC60K
- Inverter type: Three-phase commercial grid-tied string inverter
- Rated AC output power: 60 kW
- Maximum AC output power: 66 kW
- Surge AC power (1 second): 66 kW
- Maximum efficiency: 98.7%
- EU efficiency: 98.4%
- Transformer: None (transformerless)
- Maximum PV DC input power: 90 kW
- DC/AC ratio: 150%
- Maximum DC input voltage: 1,100 V
- MPPT voltage range: 195 V to 1,000 V
- DC startup voltage: 200 V
- DC shutdown voltage: 180 V
- Maximum DC input current: 192 A total (32 A per MPPT, 16 A per string)
- MPPT quantity: 6
- Maximum DC inputs: 12 (2 per MPPT)
- Connector: MC4 (24 included)
- Integrated DC switch: Yes
- AFCI: Yes (integrated DC arc-fault circuit protection)
- Surge protection: Type II (DC and AC)
- DC reverse polarity protection: Yes
- Ingress protection: IP66
- Corrosion protection: C5
- Cooling: Intelligent redundancy fan
- Communication: Supports PLC, GPRS, WiFi (accessories sold separately)
- Weight: 56 kg
Key Features
- 60 kW rated output with 66 kW maximum and 90 kW DC input for 150% DC/AC oversizing
- 6 MPPT trackers with 12 string inputs (32 A per MPPT, 16 A per string)
- 98.7% maximum efficiency and 98.4% EU efficiency
- Integrated AFCI (DC arc-fault circuit protection) for proactive fire risk reduction
- IP66 ingress protection with C5 anti-corrosion rating for harsh environments
- Intelligent string monitoring with smart I-V curve scanning
- Integrated DC switch for emergency shutdown and safe PV maintenance
- Night SVG function for improved power quality
- SolisCloud ready for remote monitoring, diagnostics, and firmware upgrades
- Supports PLC, GPRS, and WiFi communication with reduced wiring requirements
System Compatibility
- Part of the Solis S5-GC(50-60)K series
- MC4 DC connectors (24 included)
- This inverter does not include a data logger, CT, meter, or export power manager
- For export power control of a single inverter: use the SOL-METER-3PH-CT3 meter (requires a data logging stick)
- For export power control of multiple inverters: use the EPM3-5G-PLUS (has built-in data logger)
- Optional WiFi/LAN logger sold separately
- AC protection box available: ACDB-125A-125A-1-1 (125 A 3PH with power analyser)
- Extended warranty available: SOL-WAR-10Y-S5-GC50-60K (5 additional years) or SOL-WAR-20Y-S5-GC50-60K (further 5 years)
Protection Features
- Integrated AFCI (DC arc-fault circuit protection)
- DC reverse polarity protection
- Integrated DC switch
- Surge protection: Type II (DC and AC)
- IP66 ingress protection
- C5 anti-corrosion protection
Certifications and Compliance
- G99
- G100 V2
- EN 50549
- VDE 4105
- NRS 097-2-1
- CE certified
Installation Notes
- At 56 kg, a two-person lift is required for safe handling and mounting
- IP66 and C5 rated for indoor or outdoor installation in demanding environments
- Must be installed by a qualified electrician or technician in compliance with local wiring regulations
Warranty
- Standard warranty: 5 years
- Extended warranty: extendable to 10 years (SOL-WAR-10Y-S5-GC50-60K) or further to 20 years (SOL-WAR-20Y-S5-GC50-60K)
Common Questions
Click a question below to reveal the answer.
Does the Solis S5-GC60K include monitoring equipment?
No. This inverter does not include a data logger, CT, meter, or export power manager. For single-inverter export control, use the SOL-METER-3PH-CT3 (requires a data logging stick). For multi-inverter systems, use the EPM3-5G-PLUS (has a built-in data logger). All accessories are sold separately.
How many MPPT inputs does the Solis S5-GC60K have?
The S5-GC60K has 6 MPPT trackers with 12 string inputs (2 per MPPT), rated at 32 A per MPPT and 16 A per string.
Is the Solis S5-GC60K suitable for coastal installations?
Yes. The S5-GC60K features IP66 ingress protection and C5 anti-corrosion rating, suitable for harsh and coastal environments.
What is the maximum DC input on the Solis S5-GC60K?
The S5-GC60K accepts up to 90 kW of DC input (150% DC/AC ratio) at a maximum voltage of 1,100 V across 6 MPPT trackers.
Can I extend the warranty on the Solis S5-GC60K?
Yes. The standard 5-year warranty can be extended to 10 years or 20 years with the appropriate warranty extension parts.
