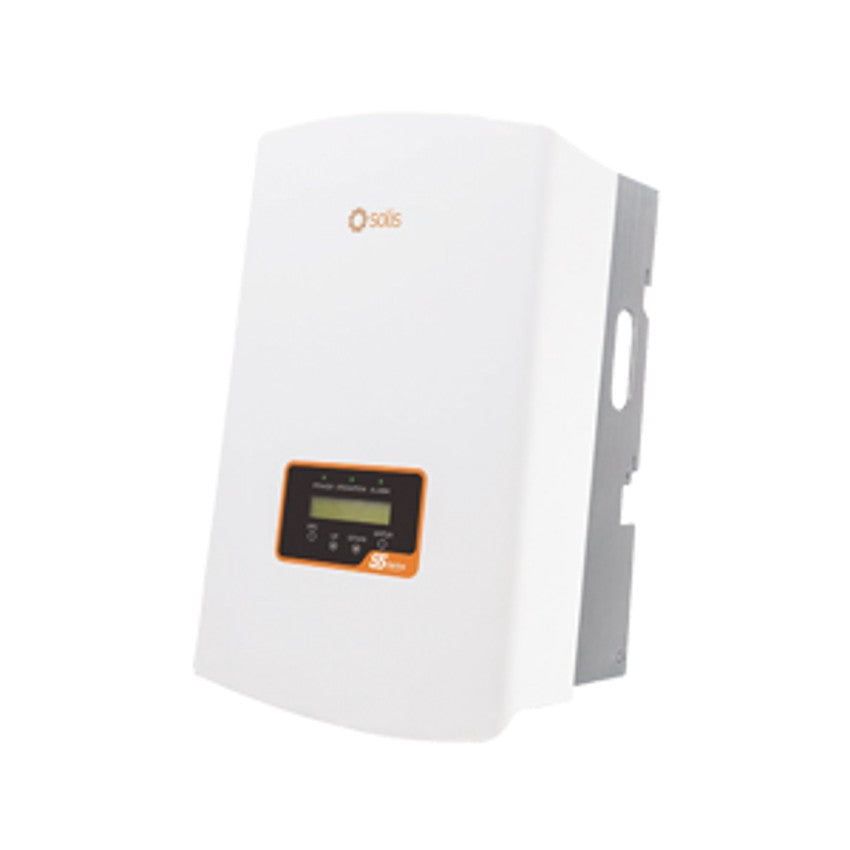

Solis S5-GR3P5K 5kW Three-Phase 2-MPPT Grid-Tied Inverter
The Solis S5-GR3P5K (part number SOL-S5-GR3P-5K-DC) is a 5 kW three-phase, 2-MPPT grid-tied string inverter from the Solis S5 GR3P series. Part of the S5-GR3P(3-20)K range, it features 2 MPPT trackers with 2 string inputs at 16 A per string, a recommended maximum PV input of 7.5 kW (150% DC/AC ratio), and a maximum efficiency of 98.3% (97.9% EU efficiency). With a maximum output of 5.5 kW, integrated AFCI protection, IP66 ingress protection, and SolisCloud remote monitoring capability, the S5-GR3P5K is a compact three-phase inverter for smaller residential PV systems. G98/G99 certified. Available from DECO Group, a UK-based solar trade wholesaler.
Key Technical Details
- Part number: SOL-S5-GR3P-5K-DC
- Supplier part number: S5-GR3P5K
- Inverter type: Three-phase grid-tied string inverter
- Rated AC output power: 5 kW
- Maximum apparent output power: 5.5 kVA
- Maximum output current: 7.9 A
- Rated grid voltage: 3/N/PE, 220 V / 380 V, 230 V / 400 V
- Rated grid frequency: 50 / 60 Hz
- Maximum efficiency: 98.3%
- EU efficiency: 97.9%
- Transformer: None (transformerless)
- Recommended maximum PV power: 7.5 kW
- Maximum DC input voltage: 1,100 V
- Rated DC voltage: 600 V
- MPPT voltage range: 160 V to 1,000 V
- DC startup voltage: 180 V
- DC shutdown voltage: 160 V
- Maximum DC input current: 32 A total (16 A / 16 A per MPPT)
- MPPT quantity: 2
- Maximum string inputs: 2 (1 per MPPT)
- Connector: MC4 (4 included)
- Integrated DC switch: Yes
- AFCI: Yes (integrated DC arc-fault circuit protection)
- Surge protection: Type II (DC and AC)
- DC reverse polarity protection: Yes
- Communication: RS485; optional WiFi, GPRS
- Ingress protection: IP66
- Dimensions: 310 x 563 x 219 mm (W x H x D)
- Weight: 17.2 kg
Key Features
- 5 kW rated output with 5.5 kW maximum and 7.5 kW recommended PV input
- 2 MPPT trackers with 2 string inputs for split-array flexibility
- 98.3% maximum efficiency and 97.9% EU efficiency
- Integrated AFCI protection for proactive DC arc-fault fire risk reduction
- IP66 rated for dependable outdoor installation
- Compact and lightweight at 17.2 kg
- Export power control support with compatible accessories
- SolisCloud ready for remote monitoring
System Compatibility
- Part of the Solis S5-GR3P(3-20)K series
- MC4 DC connectors; AC quick connection plug
- Extended warranty available: SOL-WAR-10Y-S5-GR3PK or SOL-WAR-20Y-S5-GR3PK
Certifications and Compliance
- G98 / G99
- G100
- EN 50549
- NRS 097-2-1
- CE certified
Installation Notes
- At 17.2 kg, single-person installation is feasible
- IP66 rated for indoor or outdoor installation
- Must be installed by a qualified electrician or technician
Warranty
- Standard warranty: 5 years (10 years standard in the Netherlands, Belgium, France, Germany, Poland, and Italy)
- Extended warranty: extendable to 10 years or 20 years
Common Questions
Click a question below to reveal the answer.
Where does the 5kW sit in the Solis GR3P range?
The 5 kW is the smallest model in the GR3P range with the same 2 MPPT / 2 string architecture as the 6, 8, and 10 kW models. All share the same 310 x 563 x 219 mm compact enclosure. The 12/15/20 kW models step up to 4 string inputs.
Does the Solis S5-GR3P5K include monitoring equipment?
No. Data logger, CT, meter, and export power manager are sold separately.
Can I extend the warranty?
Yes. The standard 5-year warranty (10 years in selected EU countries) can be extended to 10 or 20 years.
