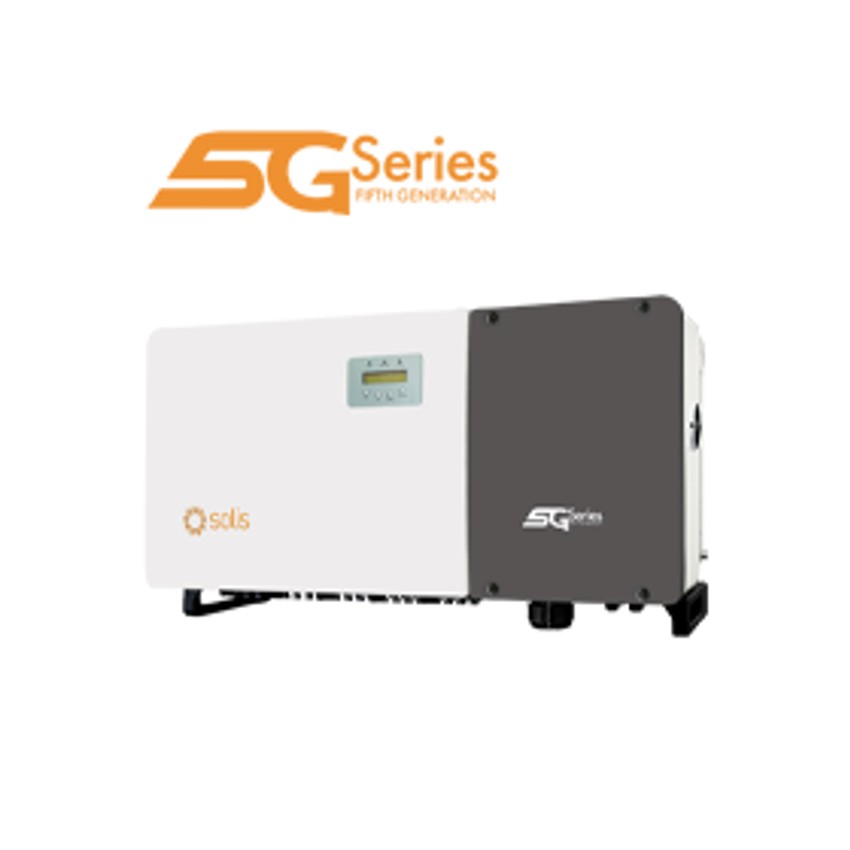

Solis 5G Pro 110kW Three-Phase 8-MPPT Commercial Grid-Tied Inverter
The Solis 5G Pro 110kW (part number SOL-110K-5G-PRO-DC, supplier part number Solis-110K-5G-PRO) is a 110 kW three-phase, 8-MPPT commercial and industrial grid-tied string inverter from the Solis Pro 5G series. It features 8 MPPT trackers with 16 string inputs (4 x 32 A and 4 x 36 A), support for greater than 150% DC/AC ratio with a maximum PV DC input of 165 kW, and a maximum efficiency of 98.5% (98% EU efficiency). With IP66 protection, AFCI arc-fault protection, night SVG function, intelligent string monitoring with I-V curve scanning, and SolisCloud remote monitoring and firmware upgrade capability, it delivers a strong combination of performance, safety, and smart O&M for commercial and industrial PV systems. G99 Type A certified. Available from DECO Group, a UK-based solar trade wholesaler.
Key Technical Details
- Part number: SOL-110K-5G-PRO-DC
- Supplier part number: Solis-110K-5G-PRO
- Inverter type: Three-phase commercial grid-tied string inverter
- Rated AC output power: 110 kW
- Maximum AC power (5 minutes): 110 kW
- Surge AC power (1 second): 121 kW
- Maximum efficiency: 98.5%
- EU efficiency: 98%
- Transformer: None (transformerless)
- Maximum PV DC input power: 165 kW
- DC/AC ratio: greater than 150%
- Maximum DC input voltage: 1,100 V
- MPPT voltage range: 180 V to 1,000 V
- DC startup voltage: 180 V
- DC shutdown voltage: 160 V
- Maximum DC input current: 272 A total
- MPPT quantity: 8 (4 x 32 A and 4 x 36 A)
- Maximum DC inputs: 16 (2 per MPPT)
- Connector: MC4 (16 included)
- Integrated DC switch: Yes
- Integrated AC switch: No (external AC isolator required)
- AFCI: Yes (DC arc-fault protection)
- Surge protection: Type II (DC and AC)
- Night SVG function: Yes
- Strings monitoring: Yes
- I-V curve scanning: Yes
- Cooling: Intelligent redundancy fan
- Ingress protection: IP66
- Weight: 93 kg
Key Features
- 110 kW rated output with 165 kW maximum DC input for greater than 150% DC/AC oversizing
- 8 MPPT trackers (4 x 32 A and 4 x 36 A) with 16 string inputs for flexible array design
- 98.5% maximum efficiency
- AFCI (DC arc-fault) protection to proactively reduce fire risk
- Night SVG function for improved power quality and grid stability
- Intelligent string monitoring with smart I-V curve scanning
- IP66 rated with globally recognised branded componentry for long service life
- SolisCloud ready for remote monitoring and firmware upgrades
- Ultra-low startup voltage of 180 V
- Supports bifacial module compatibility
- DC side supports Y-connectors for flexible design
- Aluminium wire access to reduce balance-of-system costs
System Compatibility
- Part of the Solis Pro 5G series (80–110 kW)
- MC4 DC connectors
- External AC isolator is required (not integrated)
- Extended warranty available: SOL-WAR-10Y-80-110K-5G-PRO-DC (5 additional years) or SOL-WAR-20Y-80-110K-5G-PRO-DC (15 additional years)
Important Notes
- MPPT current ratings may vary by batch: units may be supplied with either 36 A / 32 A or 40 A / 32 A MPPT configurations
- This inverter includes integrated DC isolators but does not include an AC isolator; an external AC isolator is required
Protection Features
- AFCI (DC arc-fault circuit protection)
- DC reverse polarity protection
- Surge protection: Type II (DC and AC)
- IP66 ingress protection
- Intelligent redundancy fan cooling
Certifications and Compliance
- G99 Type A
- G100 V2
- EN 50549
- VDE 4105
- IEC 62109 / EN 62109
- IEC 61000
- CE certified
Installation Notes
- At 93 kg, a minimum of two people are required for safe handling and mounting
- IP66 rated for indoor or outdoor installation
- External AC isolator must be provided
- Must be installed by a qualified electrician or competent commercial solar installer
Warranty
- Standard warranty: 5 years
- Extended warranty: extendable to 10 years (SOL-WAR-10Y-80-110K-5G-PRO-DC) or 20 years (SOL-WAR-20Y-80-110K-5G-PRO-DC)
Common Questions
Click a question below to reveal the answer.
What is the difference between the Solis 5G Pro 110kW and the S6 110kW?
The 5G Pro (SOL-110K-5G-PRO-DC) is from the older Pro 5G series with 8 MPPTs and 16 string inputs, while the S6 (SOL-S6-GC110K) is the newer S6 generation with 10 MPPTs and 20 string inputs. The 5G Pro has a higher max efficiency of 98.5% vs 98.7% on the S6. The S6 also adds dual independent RS485 ports, optional PLC communication, and optional EPM integration. Both are 110 kW rated, 121 kW surge, IP66, with AFCI protection.
Does the Solis 5G Pro 110kW include an AC isolator?
No. The 5G Pro includes integrated DC isolators but does not include an AC isolator. An external AC isolator is required.
Why do the MPPT current ratings vary?
Depending on the manufacturing batch, units may be supplied with either 36 A / 32 A or 40 A / 32 A MPPT configurations. Both variants deliver the same rated output.
How many MPPT inputs does the Solis 5G Pro 110kW have?
The 5G Pro 110kW has 8 MPPT trackers with 16 string inputs (2 per MPPT). Four MPPTs are rated at 32 A and four at 36 A (or 40 A depending on batch).
Can I extend the warranty on the Solis 5G Pro 110kW?
Yes. The standard 5-year warranty can be extended to 10 years or 20 years with the appropriate warranty extension parts.
