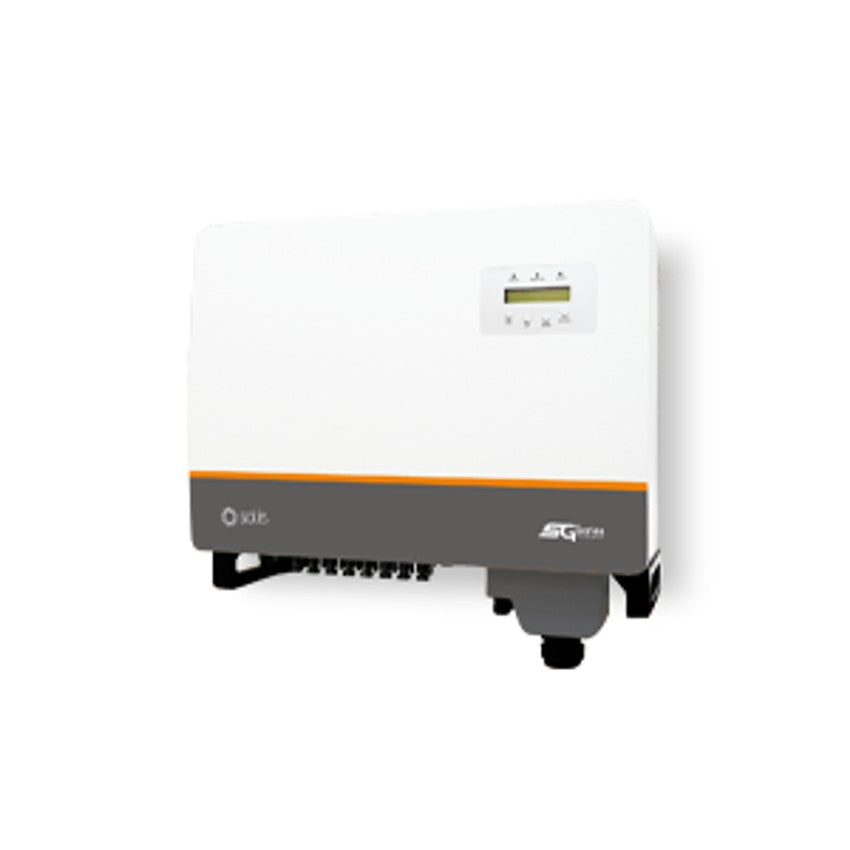

Solis S5-GC25K 25kW Three-Phase 3-MPPT Commercial Grid-Tied Inverter
The Solis S5-GC25K (part number SOL-S5-GC25K-DC) is a 25 kW three-phase, 3-MPPT commercial grid-tied string inverter from the Solis S5 series. Part of the S5-GC(25-40)K range, it features 3 MPPT trackers with 6 string inputs (2 per MPPT) at 32 A per MPPT, a recommended maximum PV input of 37.5 kW, and a maximum efficiency of 98.5% (98.1% EU efficiency). With a maximum AC output of 27.5 kW, optional AFCI arc-fault protection, IP66 ingress protection, intelligent I-V curve and multi-peak scanning, 24-hour load consumption monitoring (with compatible meter), and SolisCloud remote monitoring, the S5-GC25K is designed for commercial rooftop, agricultural, and industrial PV systems. G99 certified. Available from DECO Group, a UK-based solar trade wholesaler.
Key Technical Details
- Part number: SOL-S5-GC25K-DC
- Supplier part number: S5-GC25K
- Inverter type: Three-phase commercial grid-tied string inverter
- Rated AC output power: 25 kW
- Maximum output power: 27.5 kW
- Maximum apparent output power: 27.5 kVA
- Rated grid voltage: 3/N/PE, 220 V / 380 V, 230 V / 400 V
- Rated grid frequency: 50 / 60 Hz
- Rated grid output current: 38.0 A / 36.1 A
- Maximum output current: 41.8 A
- Power factor: greater than 0.99 (0.8 leading to 0.8 lagging)
- THDi: less than 3%
- Maximum efficiency: 98.5%
- EU efficiency: 98.1%
- Transformer: None (transformerless)
- Recommended maximum PV power: 37.5 kW
- Maximum DC input voltage: 1,100 V
- Rated DC voltage: 600 V
- MPPT voltage range: 200 V to 1,000 V
- DC startup voltage: 180 V
- Maximum input current: 32 A / 32 A / 32 A per MPPT
- Maximum short-circuit current: 40 A / 40 A / 40 A per MPPT
- MPPT quantity: 3
- Maximum string inputs: 6 (2 per MPPT)
- Integrated DC switch: Yes
- AFCI 2.0: Optional
- PID recovery: Optional (night-time)
- Surge protection: DC Type II / AC Type II
- Strings monitoring: Yes
- I-V curve scanning: Yes
- Multi-peak scan: Yes
- Communication: RS485; optional WiFi, GPRS
- Display: LCD
- DC connection: MC4
- AC connection: OT terminal
- Cooling: Intelligent fan-cooling
- Noise emission: ≤60 dB(A)
- Ingress protection: IP66
- Operating temperature: -25°C to +60°C
- Relative humidity: 0% to 100%
- Maximum operating altitude: 4,000 m
- Self-consumption (night): less than 1 W
- Dimensions: 647 x 629 x 252 mm (W x H x D)
- Weight: 38.2 kg
Key Features
- 25 kW rated output with 27.5 kW maximum and 37.5 kW recommended PV input
- 3 MPPT trackers with 6 string inputs for multi-orientation roof layouts
- 98.5% maximum efficiency and 98.1% EU efficiency
- Optional AFCI (DC arc-fault circuit protection) for proactive fire risk reduction
- Optional night-time PID recovery to increase overall system yield
- IP66 rated with intelligent fan-cooling for quiet outdoor installation
- Intelligent string monitoring with I-V curve scanning and multi-peak scan
- 24-hour load consumption monitoring when paired with a compatible smart meter
- Integrated DC switch for emergency shutdown and safe maintenance
- SolisCloud ready for remote monitoring, diagnostics, and firmware upgrades
- Compact wall-mounted design at 38.2 kg
- Night self-consumption of less than 1 W
Included Components
- 1 x Solis S5-GC25K inverter
- 1 x Back plate
- 4 x Cross screws
- 2 x Hex screws
- 1 x AC terminal cover
- 6 x DC connectors
- 1 x RJ45 connector
- 1 x User manual
System Compatibility
- Part of the Solis S5-GC(25-40)K series
- MC4 DC connectors; OT terminal AC connection
- This inverter does not include a data logger, CT, meter, or export power manager
- For export power control of a single inverter: use the SOL-METER-3PH-CT3 meter (requires a data logging stick)
- For export power control of multiple inverters: use the EPM3-5G-PLUS (has built-in data logger)
- For WiFi monitoring: use the S5-WiFi-ST Solis WiFi Data Logger Stick
- Extended warranty available: SOL-WAR-10Y-25-40K-S5 (5 additional years) or SOL-WAR-20Y-25-40K-S5 (15 additional years)
Protection Features
- AFCI 2.0 (optional)
- DC reverse polarity protection
- DC short-circuit protection
- Output overcurrent protection
- Integrated DC switch
- Surge protection: DC Type II / AC Type II
- Anti-islanding protection
- Temperature protection
- IP66 ingress protection
Certifications and Compliance
- G99
- G100
- EN 50549-1
- VDE 4105 / VDE V 0124
- IEC 62116, IEC 61727, IEC 60068, IEC 61683
- EN 50530
- IEC/EN 62109-1/2 (Safety)
- IEC/EN 61000-6-1/2/3/4 (EMC)
- NRS 097-2-1
- CE certified
Installation Notes
- At 38.2 kg, a two-person lift is recommended
- IP66 rated for indoor or outdoor installation
- Install on a vertical surface; may be tilted backward up to 15 degrees
- Allow at least 500 mm clearance from the ground and surrounding equipment
- Avoid direct sunlight where possible to reduce thermal derating
- Inverter surface can exceed 75°C during operation
- For startup: AC ON first, then DC ON. For shutdown: Grid Off, then AC OFF, then DC OFF
- Must be installed by a qualified electrician or technician in compliance with local wiring regulations
Warranty
- Standard warranty: 5 years
- Extended warranty: extendable to 10 years (SOL-WAR-10Y-25-40K-S5) or 20 years (SOL-WAR-20Y-25-40K-S5)
Common Questions
Click a question below to reveal the answer.
Does the Solis S5-GC25K include monitoring equipment?
No. This inverter does not include a data logger, CT, meter, or export power manager. For single-inverter export control, use the SOL-METER-3PH-CT3 (requires a data logging stick). For multi-inverter systems, use the EPM3-5G-PLUS (has a built-in data logger). For WiFi monitoring, use the S5-WiFi-ST. All accessories are sold separately.
What is the difference between the Solis S5 25kW, 30kW, 36kW, and 40kW?
All four are in the S5-GC(25-40)K series. The 25 kW and 30 kW have 3 MPPTs with 6 inputs; the 36 kW and 40 kW have 4 MPPTs with 8 inputs. The 25 kW accepts up to 37.5 kW PV input, the 30 kW takes 45 kW, the 36 kW takes 54 kW, and the 40 kW takes 60 kW. All share the same warranty extension parts.
Can this inverter monitor site consumption at night?
Yes. When paired with a compatible smart meter and correctly configured, the inverter supports 24-hour load consumption monitoring.
Can I extend the warranty?
Yes. The standard 5-year warranty can be extended to 10 years or 20 years with the appropriate warranty extension parts.
About Solis
Ginlong Solis, established in 2005, is an internationally recognised manufacturer of solar inverters for residential, commercial, and utility-scale applications. Designed by a global R&D team of specialists from eight countries, Solis inverters deliver high efficiency, wide input voltage ranges, and precise MPPT performance.
DECO Group supplies Solis commercial grid-tied inverters across the S5 and S6 series alongside compatible monitoring accessories, export power meters, and extended warranty packages. Browse our commercial inverter catalogue for the complete Solis C&I range.
About DECO Group
We supply Solis commercial-scale inverters and system accessories to professional solar installers and electrical contractors across the UK. Our Solis S5 range covers three-phase grid-tied inverters from 25 kW to 60 kW. Contact our commercial team or visit decogroup.co.uk for project support.
