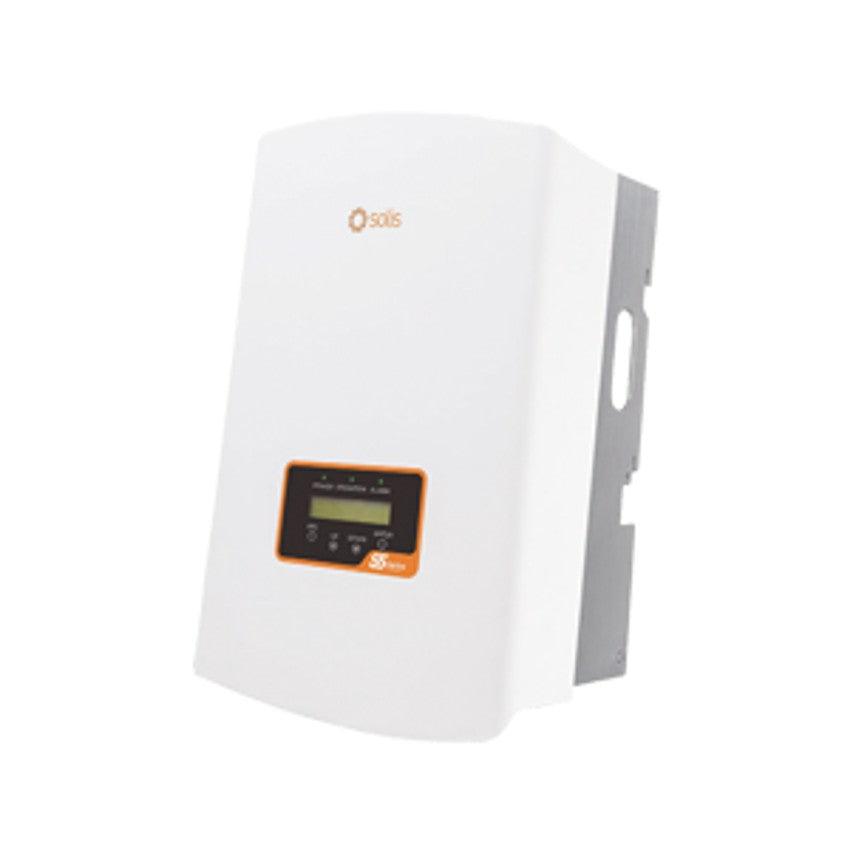

Solis S5-GR3P20K 20kW Three-Phase 2-MPPT Grid-Tied Inverter
The Solis S5-GR3P20K (part number SOL-S5-GR3P-20K-DC) is a 20 kW three-phase, 2-MPPT grid-tied string inverter from the Solis S5 GR3P series. Designed for residential, small commercial, and light industrial PV systems, it features 2 MPPT trackers with 4 string inputs at 32 A per MPPT, a recommended maximum PV input of 30 kW (150% DC/AC ratio), and a maximum efficiency of 98.7% (98.1% EU efficiency). With a maximum output of 22 kW, optional AFCI arc-fault protection, IP66 ingress protection, THDi below 2%, adaptive weak grid support, and optional 24-hour load consumption monitoring, the S5-GR3P20K delivers a compact, high-efficiency solution for professional three-phase installations. G98/G99 certified. Available from DECO Group, a UK-based solar trade wholesaler.
Key Technical Details
- Part number: SOL-S5-GR3P-20K-DC
- Supplier part number: S5-GR3P20K
- Inverter type: Three-phase grid-tied string inverter
- Rated AC output power: 20 kW
- Maximum output power: 22 kW
- Maximum apparent output power: 22 kVA
- Rated grid voltage: 3/N/PE, 220 V / 380 V, 230 V / 400 V
- Rated grid frequency: 50 / 60 Hz
- Rated grid output current: 30.4 A / 28.9 A
- Maximum output current: 31.8 A
- Power factor: greater than 0.99 (0.8 leading to 0.8 lagging)
- THDi: less than 2%
- Maximum efficiency: 98.7%
- EU efficiency: 98.1%
- Transformer: None (transformerless)
- Recommended maximum PV power: 30 kW
- Maximum DC input voltage: 1,100 V
- Rated DC voltage: 600 V
- MPPT voltage range: 160 V to 1,000 V
- DC startup voltage: 180 V
- Maximum input current: 32 A / 32 A per MPPT
- Maximum short-circuit current: 40 A / 40 A per MPPT
- MPPT quantity: 2
- Maximum string inputs: 4 (2 per MPPT)
- Integrated DC switch: Yes
- AFCI: Optional (supported depending on configuration)
- Surge protection: Yes
- Communication: RS485; optional WiFi, GPRS
- Display: LCD
- DC connection: MC4
- AC connection: Quick connection plug
- Cooling: Intelligent fan-cooling
- Noise emission: less than 60 dB(A)
- Ingress protection: IP66
- Operating temperature: -25°C to +60°C
- Relative humidity: 0% to 100%
- Maximum operating altitude: 4,000 m
- Self-consumption (night): less than 1 W
- Dimensions: 310 x 563 x 219 mm (W x H x D)
- Weight: 20.8 kg
Key Features
- 20 kW rated output with 22 kW maximum and 30 kW recommended PV input for greater than 150% DC/AC oversizing
- 2 MPPT trackers with 4 string inputs for flexible split-array design
- 98.7% maximum efficiency and 98.1% EU efficiency
- THDi below 2% for clean power export and stable grid interaction
- Optional AFCI protection for proactive DC arc-fault fire risk reduction
- Adaptive weak grid support for challenging grid conditions
- IP66 rated for dependable outdoor installation
- 24-hour load consumption monitoring when paired with a compatible smart meter
- Export power control support for grid-limited applications
- Integrated DC switch
- SolisCloud ready for remote monitoring
- Compact and lightweight at 20.8 kg and 310 x 563 x 219 mm
- Night self-consumption of less than 1 W
Included Components
- 1 x Solis S5-GR3P20K inverter
- 1 x Back plate
- 2 x Fastening screws
- DC connectors
- 1 x AC quick connection plug
- 1 x RJ45 connector
- 1 x User manual
System Compatibility
- Part of the Solis S5-GR3P(3-20)K series
- MC4 DC connectors; AC quick connection plug
- This inverter does not include a data logger, CT, meter, or export power manager
- For export power control of a single inverter: use the SOL-METER-3PH-CT3 (requires a data logging stick such as the S5-WiFi-ST)
- For export power control of multiple inverters: use the EPM3-5G-PRO (or EPM3-5G-PLUS)
- Extended warranty available: SOL-WAR-10Y-S5-GR3PK (5 additional years) or SOL-WAR-20Y-S5-GR3PK (15 additional years)
Protection Features
- AFCI (optional, depending on configuration)
- DC reverse polarity protection
- DC short-circuit protection
- Output overcurrent protection
- Over-temperature protection
- Integrated DC switch
- Surge protection
- Anti-islanding protection
- IP66 ingress protection
Certifications and Compliance
- G98 / G99
- G100
- EN 50549
- NRS 097-2-1
- CE certified
Installation Notes
- At 20.8 kg, single-person installation is feasible
- IP66 rated for indoor or outdoor installation
- Install vertically or with a slight backward tilt up to 15 degrees
- Allow at least 500 mm clearance around sides and bottom, 1,000 mm above
- Avoid direct sunlight where possible
- Inverter surface can exceed 75°C during operation
- For startup: AC ON first, then DC ON. For shutdown: Grid Off, then AC OFF, then DC OFF
- Must be installed by a qualified electrician or technician
Warranty
- Standard warranty: 5 years
- Extended warranty: extendable to 10 years (SOL-WAR-10Y-S5-GR3PK) or 20 years (SOL-WAR-20Y-S5-GR3PK)
Common Questions
Click a question below to reveal the answer.
What is the difference between the Solis S5-GR3P and S5-GC series?
The GR3P series (3–20 kW) is designed for residential and small commercial three-phase systems with a compact, lightweight form factor and quick-connect AC plug. The GC series (25–60 kW) targets larger commercial and industrial installations with more MPPT trackers, higher current ratings, and OT terminal AC connections.
Does the Solis S5-GR3P20K include monitoring equipment?
No. Data logger, CT, meter, and export power manager are sold separately. For single-inverter export control, use the SOL-METER-3PH-CT3 with a data logging stick. For multi-inverter systems, use the EPM3-5G-PRO or EPM3-5G-PLUS.
Is the Solis S5-GR3P20K suitable for residential installations?
Yes. The S5-GR3P series is specifically designed for residential, small commercial, and light industrial three-phase PV systems. At 20.8 kg and 310 x 563 x 219 mm, it's compact enough for domestic installations.
Can I extend the warranty?
Yes. The standard 5-year warranty can be extended to 10 years or 20 years with the appropriate warranty extension parts.
