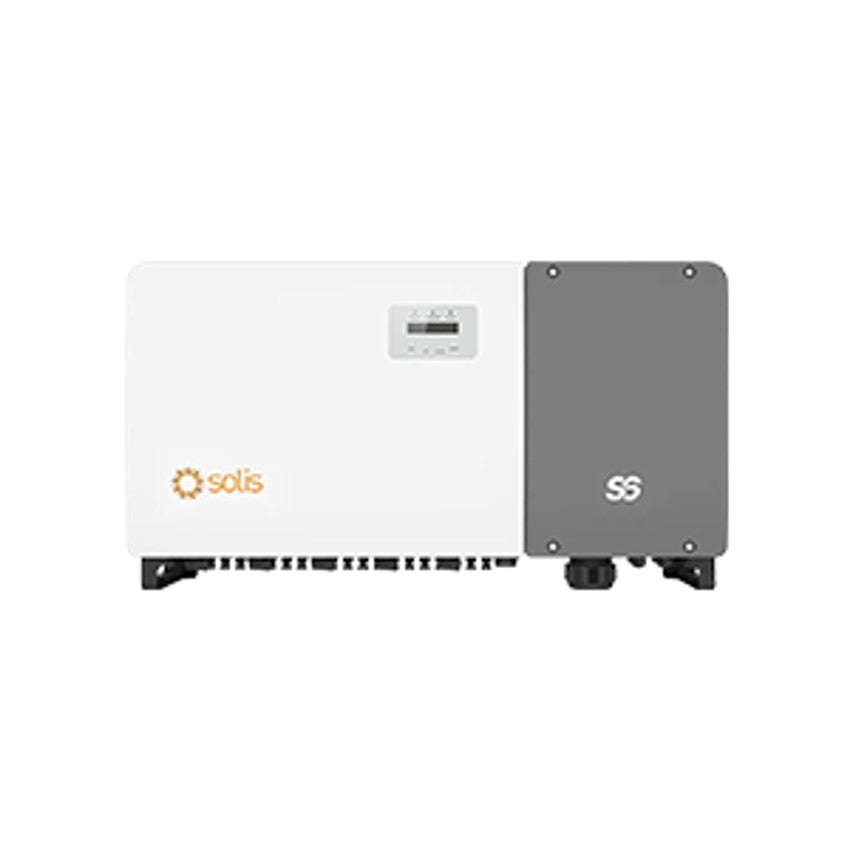

Solis S6-GC125K 125kW Three-Phase 10-MPPT Commercial Grid-Tied Inverter
The Solis S6-GC125K (part number SOL-S6-GC125K) is a 125 kW three-phase, 10-MPPT commercial and industrial grid-tied string inverter. Part of the S6-GC(80-125)K series, it features 10 MPPT trackers with 20 string inputs, support for greater than 150% DC/AC ratio, and a maximum efficiency of 98.7% (98.3% EU efficiency). Designed for commercial rooftop, industrial, utility-scale, and agricultural PV systems using high-power modules, the S6-GC125K includes AI-based AFCI protection, real-time PV grounding detection, intelligent I-V curve scanning, IP66 ingress protection, and dual independent RS485 ports. Supports master-slave export power control with up to 10 units in parallel. G99 certified. Available from DECO Group, a UK-based solar trade wholesaler.
Key Technical Details
- Part number: SOL-S6-GC125K
- Manufacturer model: S6-GC125K
- Inverter type: Three-phase C&I grid-tied string inverter
- Rated AC output power: 125 kW
- Maximum output power: 125 kW
- Maximum apparent output power: 125 kVA
- Rated grid voltage: 3/N/PE, 220 V / 380 V, 230 V / 400 V
- Rated grid frequency: 50 / 60 Hz
- Rated grid output current: 189.9 A / 180.4 A
- Maximum output current: 189.9 A
- Power factor: greater than 0.99 (0.8 leading to 0.8 lagging)
- THDi: less than 3%
- Maximum efficiency: 98.7%
- EU efficiency: 98.3%
- Transformer: None (transformerless)
- Maximum DC input voltage: 1,100 V
- Rated DC voltage: 600 V
- MPPT voltage range: 160 V to 1,000 V
- DC startup voltage: 180 V
- Maximum input current: 5 x (42 A / 36 A)
- Maximum short-circuit current: 10 x 50 A
- MPPT quantity: 10
- Maximum string inputs: 20 (2 per MPPT)
- Maximum input current per string: 21 A
- DC/AC ratio: greater than 150%
- Integrated DC switch: Yes
- Integrated AC switch: Optional
- Integrated EPM function: Optional (up to 10 devices)
- AFCI 2.0: Optional (AI-based)
- PID recovery: Optional
- Surge protection: Type II (DC and AC)
- Strings monitoring: Yes
- I-V curve scanning: Yes
- Night SVG function: Yes
- Communication: RS485 (dual independent); optional WiFi, GPRS, PLC
- Display: LCD
- DC connection: MC4
- AC connection: OT terminal (max 240 mm²)
- Cooling: Intelligent fan-cooling
- Ingress protection: IP66
- Operating ambient temperature: -30°C to +60°C
- Relative humidity: 0% to 100%
- Maximum operating altitude: 4,000 m
- Self-consumption (night): less than 2 W
- Dimensions: 1,014 x 567 x 345 mm (W x H x D)
- Weight: 96 kg
Key Features
- 125 kW three-phase output with support for greater than 150% DC/AC oversizing
- 10 MPPT trackers with 20 string inputs for maximum design flexibility across large arrays
- Up to 21 A per string, compatible with high-power 182 mm and 210 mm PV modules
- 98.7% maximum efficiency and 98.3% EU efficiency
- AI-based millisecond arc protection (AFCI 2.0, optional)
- Real-time PV grounding detection and protection
- Intelligent I-V curve scanning and strings monitoring for smart diagnostics
- IP66 ingress protection for outdoor installation in demanding environments
- Dual independent RS485 ports for third-party integration
- Master-slave export power control with up to 10 units in parallel
- Supports single and multiple genset applications without an external genset controller
- SolisCloud ready for remote monitoring, diagnostics, and firmware upgrades
- Night SVG function
- Optional integrated EPM, PID recovery, and AC switch
- Maximum operating altitude of 4,000 m
System Compatibility
- Part of the Solis S6-GC(80-125)K three-phase C&I inverter series
- MC4 DC connectors; OT terminal AC connection (max 240 mm²)
- Optional export power meter: METER-3PH-CT3
- Optional WiFi/LAN logger: S2-WL-ST-USB
- Optional PLC communication
- EPM still required for the S6-GC(80-125)K range (UK installations)
- Extended warranty available: SOL-WAR-10Y-S6-GC80-125K (10-year extension)
Protection Features
- AI-based AFCI 2.0 (optional)
- Real-time PV grounding detection and protection
- Strings monitoring
- DC reverse polarity protection
- DC short-circuit protection
- Output overcurrent protection
- Surge protection: Type II (DC and AC)
- Anti-islanding protection
- Temperature protection
- Arc fault and RSD co-operation (optional)
- IP66 ingress protection
Certifications and Compliance
- G99
- IEC 61727
- EN 50549-1/2
- VDE 4110
- IEC/EN 62109-1/2 (Safety)
- IEC/EN 61000-6-2/4 (EMC)
- NRS 097-2-1
- CE certified
Included Components
- 1 x Solis S6-GC125K inverter
- 1 x Mounting bracket
- 2 x Fastening screws
- 20 x DC connectors
- 1 x User manual
Installation Notes
- At 96 kg, a minimum of two people are required for safe handling and mounting
- IP66 rated for indoor or outdoor installation
- Install vertically or with a slight backward tilt up to 15 degrees; do not install leaning forward or upside down
- Maintain at least 500 mm clearance between inverters and surrounding equipment, and 1,000 mm above for ventilation and access
- Avoid direct sunlight where possible to reduce thermal derating
- Do not install in flammable or explosive atmospheres or near highly flammable materials
- Inverter surface can exceed 75°C during operation
- For startup: switch AC grid supply ON first, then DC isolator ON. For shutdown: Grid Off, then AC OFF, then DC OFF
- Must be installed by a qualified electrician or competent commercial solar installer
Warranty
- Standard warranty: 5 years
- Extended warranty: available up to 20 years (SOL-WAR-10Y-S6-GC80-125K for 10-year extension)
Common Questions
Click a question below to reveal the answer.
How many MPPT inputs does the Solis S6-GC125K have?
The S6-GC125K has 10 MPPT trackers with 20 string inputs (2 strings per MPPT), supporting up to 21 A per string for compatibility with high-power modules.
What is the difference between the Solis S6 125kW and 150kW?
The 125 kW (S6-GC125K) has 10 MPPTs with 20 strings, while the 150 kW (S6-GC3P150K07) has 7 MPPTs with 21 strings. The 150 kW model has higher per-MPPT current (54 A vs 42 A) and higher maximum efficiency (98.8% vs 98.7%). Both share IP66 protection, dual RS485, and support for 10-unit parallel operation.
Does the Solis S6-GC125K include monitoring equipment?
No. Monitoring, export power control, and communications accessories are sold separately. Use the METER-3PH-CT3 for export power management and the S2-WL-ST-USB for WiFi/LAN connectivity. The inverter is SolisCloud ready. An EPM is still required for UK installations.
Can multiple Solis S6-GC125K inverters be installed in parallel?
Yes. The S6-GC125K supports master-slave export power control with up to 10 units in parallel.
What are the dimensions and weight of the Solis S6-GC125K?
The S6-GC125K measures 1,014 x 567 x 345 mm (W x H x D) and weighs 96 kg. A minimum of two people are required for handling.
