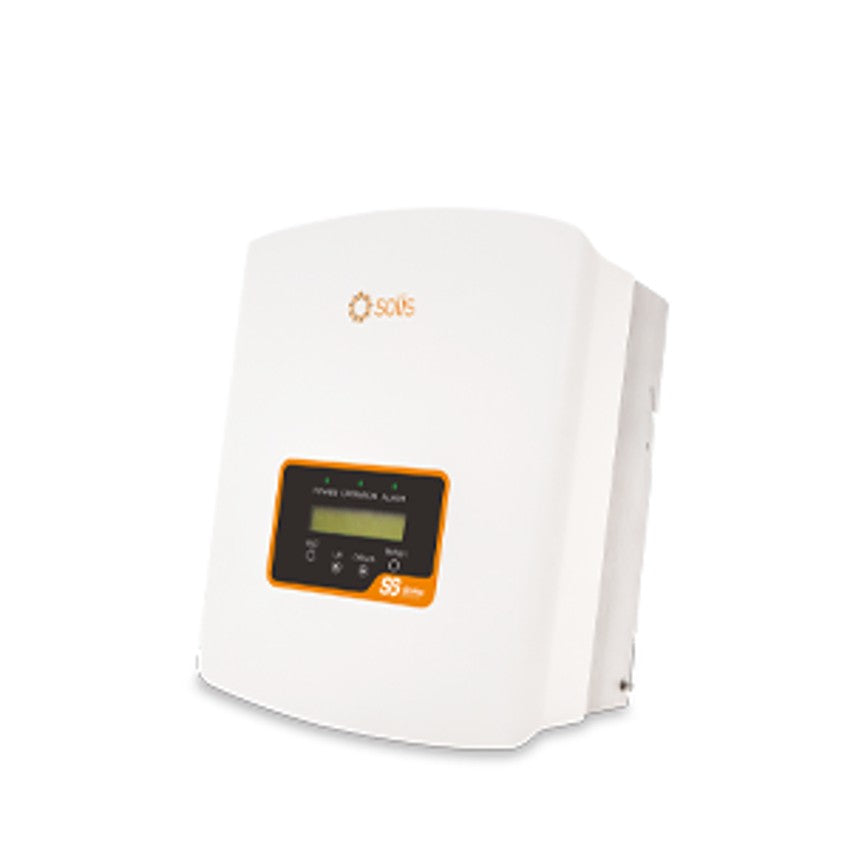

Solis 0.7kW Mini S6 Single Tracker Grid-Tie Inverter with Integrated DC Isolator
The Solis 0.7kW Mini S6 is a single-phase, single MPPT grid-tie inverter rated at 700W, designed for compact residential PV installations. Part of the Solis Mini S6 series from Ginlong Solis, this transformerless inverter pairs an ultra-low 60V start-up voltage with a maximum PV input of 1,100W and a maximum input voltage of 600V, making it compatible with high-efficiency and bifacial modules. The unit ships with an integrated DC isolator for safe PV maintenance and emergency shutdown. Manufacturer part numbers: SOL-0.7-MINI-S6-EU-DC and SOLIS-0.7-MINI-DC. Available from DECO Group, a UK-based solar wholesaler supplying professional installers.
Key Technical Details
- Brand: Solis (Ginlong Solis)
- Model: Mini S6 Single Tracker
- Part number (SKU): SOL-0.7-MINI-S6-EU-DC
- MPN: SOLIS-0.7-MINI-DC
- Inverter type: Grid-tie, transformerless
- Rated output power: 700W
- Max PV input power: 1,100W
- Max AC output power (5 minutes): 770W
- Surge AC power (1 second): 770W
- Phase configuration: Single phase
- MPPT quantity: 1
- Max DC inputs: 1
- Max input voltage: 600V
- MPPT voltage range: 60V to 500V
- DC start-up voltage: 60V
- DC shutdown voltage: 50V
- Max DC current: 14A
- Maximum efficiency: 96.6%
- Euro efficiency: 95.3%
- Connector type: MC4 (1 pair included)
- Integrated DC switch: Yes
- Weight: 8kg
- Warranty: 5 years
Key Features
- Super high frequency switching technology delivers a maximum efficiency of 96.6% and Euro efficiency of 95.3%.
- Fanless design with noise output below 20 dBA, suitable for noise-sensitive installations.
- Ultra-low start-up voltage of 60V allows generation to begin in low-light conditions.
- Wide MPPT voltage range of 60V to 500V with a maximum PV input voltage of 600V.
- Integrated AFCI (DC arc-fault circuit protection) for enhanced safety on the DC side.
- Integrated DC switch provides emergency shutdown capability and safe PV maintenance isolation.
- DRM (Demand Response Mode) integrated for smart grid compliance.
- Integrated Export Power Manager (EPM) with backflow power control function.
- Compact and lightweight at 8kg for straightforward single-person installation.
- Compatible with high-efficiency modules and bifacial modules.
Installation Notes
- This inverter does not include an export limitation function as standard. It ships with CTs only; a meter is required to enable export limitation.
- The inverter can be reduced in power output with the agreement of the energy supplier to comply with local regulations. A "Manufacturer Power Limit Declaration" document is available from Solis for this purpose.
- AC wiring requires a minimum conductor size of 2.5mm².
- At 8kg, this unit is comfortably within the single-person lift threshold.
- Fanless operation eliminates moving parts, reducing long-term maintenance requirements.
Warranty
- 5-year standard manufacturer warranty.
Common Questions
- What is the start-up voltage of the Solis 0.7kW Mini S6?
- The Solis 0.7kW Mini S6 has an ultra-low DC start-up voltage of 60V, allowing it to begin generating in low-irradiance conditions.
- Does the Solis 0.7kW Mini S6 include export limitation?
- The SOL-0.7-MINI-S6-EU-DC variant does not include an export limitation function. It ships with CTs only. A separate meter is required to enable export limitation.
- What is the weight of the Solis 0.7kW Mini S6 inverter?
- The inverter weighs 8kg, making it a straightforward single-person lift and install.
- Does the Solis 0.7kW Mini S6 have integrated arc-fault protection?
- Yes. The inverter includes integrated AFCI (DC arc-fault circuit protection) as standard.
