VarioSole Stainless Steel roof hook for Pantiles No Wood Screws

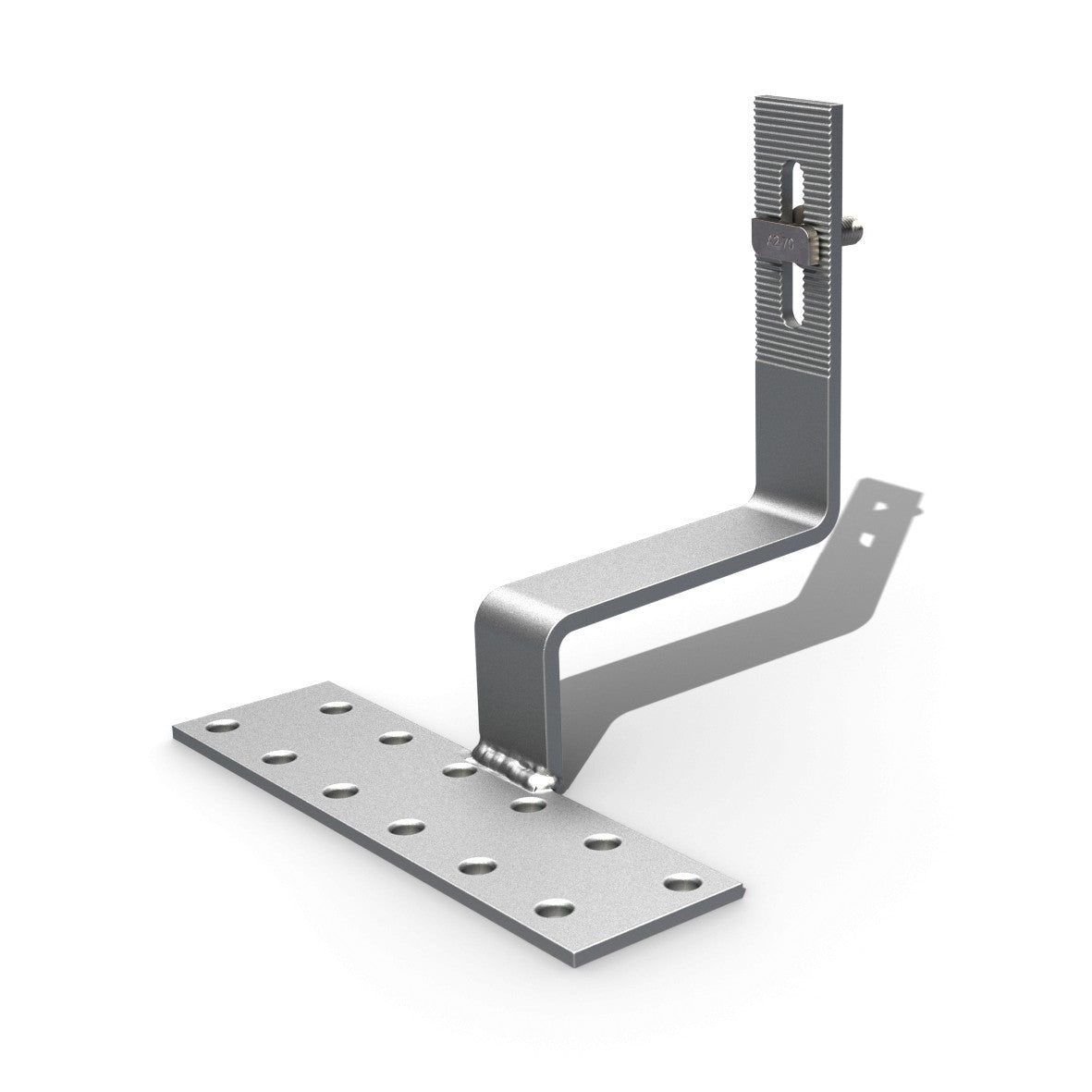

Renusol VarioSole Stainless Steel Roof Hook for Pantiles

The Renusol VarioSole Stainless Steel Roof Hook for Pantiles is a robust, UK-approved roof anchoring solution designed specifically for pantile roofs with wooden roof decking. Manufactured from high-grade stainless steel, this pre-assembled roof hook delivers excellent corrosion resistance, long-term durability, and precise adjustability for professional solar PV installations.

Designed as part of the Renusol VarioSole mounting system, this roof hook features a serrated frictional connection to ensure a secure fixing point and reliable load transfer. Supplied without wood screws, it allows installers to select fixings appropriate to the specific roof structure and site conditions.

Key Benefits

• Designed specifically for pantile roofs
• Stainless steel construction for superior corrosion resistance
• Pre-assembled for faster installation
• Serrated frictional connection for secure fixing
• Vertical and horizontal adjustment for precise alignment

Technical Specifications

• Product: Renusol VarioSole Stainless Steel Roof Hook for Pantiles
• Part number: REN-420150
• Mounting category: Roof anchor – tile & slate roofs
• Material: Stainless steel A2-70
• Material thickness: 4.0mm

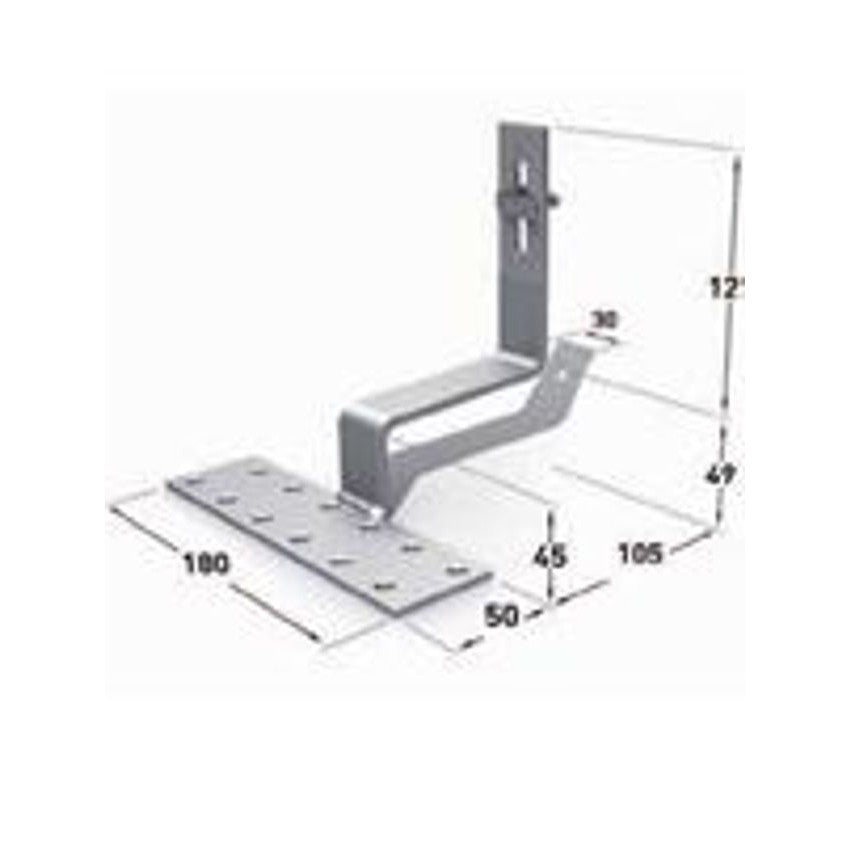

• Overall dimensions: 156 x 180 x 170mm
• Weight: 0.64kg
• Screw diameter: M8
• Horizontal adjustment: 60mm
• Vertical adjustment: 37.5mm
• Certifications: TÜV ID 1111212485; MCS012 IK0197/05

What’s Included

• 1 × Stainless steel roof hook
• 1 × Hammerhead bolt M8 x 25
• 1 × Hexagon nut with serration DIN6923 – M8 A2-70

Applications

• Residential solar PV installations on pantile roofs
• Commercial solar systems with tiled roof decking
• Projects using Renusol VarioSole mounting components

Compatibility & Warranty

• Compatible with Renusol VarioSole mounting systems
• Designed for use on pantile roofs with wooden substructures
• Must be used exclusively with Renusol mounting components
• Use with other manufacturers’ equipment will void the Renusol system warranty

Important: This roof hook is not approved for use in Belgium due to wind load requirements.
