Variosole RH1 Pantile roof hook Aluminium adjustable 100 mm (without wood screws)

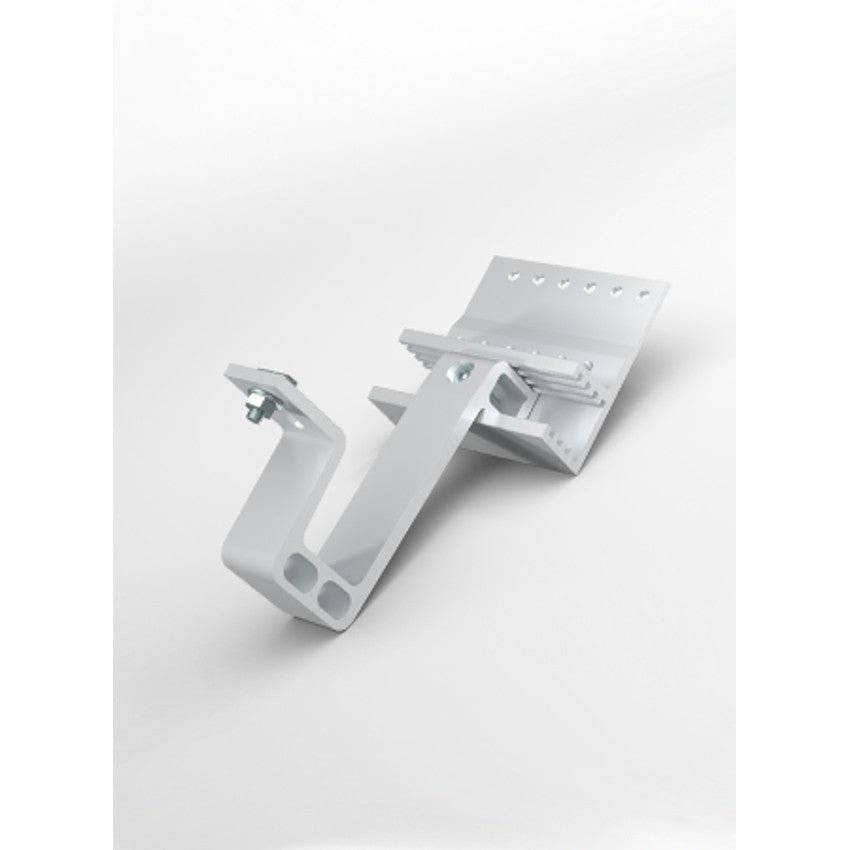

Renusol VarioSole RH1 Pantile Roof Hook – Aluminium Adjustable (Without Wood Screws)

The Renusol VarioSole RH1 Pantile Roof Hook is a high-performance, heavy-duty roof anchoring solution engineered to deliver exceptional strength and flexibility for pitched roof solar installations. Designed specifically for pantile and profiled tile roofs, the RH1 is Renusol’s strongest roof hook to date, offering up to 25% higher load capacity than any previous Renusol roof hook.

Manufactured from lightweight yet robust aluminium, the RH1 combines outstanding durability with advanced adjustability. Its adjustable base plate allows precise positioning between rafters or tiles, while four-stage height adjustment ensures a secure and flush rail alignment, even on uneven roof surfaces.

Please note: This product is supplied without wood screws.

Key Benefits

• 25% stronger than Renusol’s previous strongest roof hook
• Extraordinarily high load capacity for demanding roof conditions
• Universal application reduces the number of hooks required per installation
• Adjustable base plate for optimal rafter or tile positioning
• Height adjustable in four steps up to 25mm
• Suitable for uneven roofs thanks to vertical rail adjustment
• Lightweight, corrosion-resistant aluminium construction

Advanced Adjustability

• Horizontal adjustment: Up to 80mm for precise rafter or tile positioning
• Height adjustment: 4-step adjustment up to 25mm
• Vertical rail adjustment: 25mm to compensate for uneven roofs

Applications

• Pitched roof PV installations
• Pantile and profiled tile roofs
• Residential and commercial solar PV systems
• Installations requiring higher load capacity and reduced mounting points

Technical Specifications

• Product: Renusol VarioSole RH1 Pantile Roof Hook
• Part number: REN-420171
• Mounting category: Roof anchor – tile & slates
• Roof type: Pantile / profiled tiles
• Material: Aluminium
• Height adjustment: Up to 25mm (4 steps)
• Vertical rail adjustment: 25mm
• Horizontal adjustment: Up to 80mm
• Compatibility: Renusol VarioSole mounting system
• Supply: Without wood screws
• Weight: 0.64kg

Installation Notes

• Fix the roof hook to the roof substructure in line with Renusol installation guidelines
• Adjust the base plate to position the hook optimally between rafters or tiles
• Select the appropriate height setting for a flush and secure rail fit
• Use the vertical adjustment to compensate for uneven roof surfaces
• Complete the installation using Renusol-approved mounting components only

Compatibility & Warranty

• Designed exclusively for use with Renusol mounting systems
• Use of non-Renusol components will void the system warranty

About Renusol

Renusol is a globally recognised manufacturer of professional solar mounting systems and part of the PARI Group. Guided by the motto “Solid, Simple Service”, Renusol delivers durable, installer-focused solutions for residential, commercial, agricultural, and industrial PV installations worldwide.
