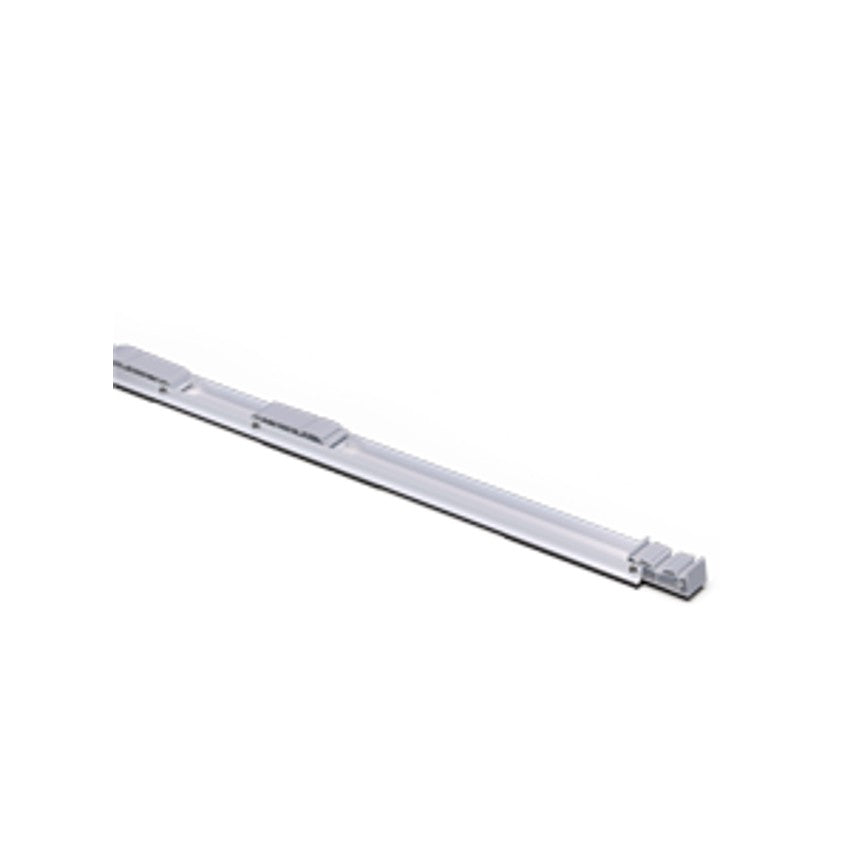

Renusol FS Pro 10-EW Base Rail 2300 (Set)

The Renusol FS Pro 10-EW Base Rail 2300 is a structural mounting component within the FS Pro system for east-west flat roof PV installations. This rail provides a 10° inclination angle and is configured for landscape-oriented module mounting in aerodynamic east-west array layouts.

Key Technical Details

• Product: Renusol FS Pro 10-EW Base Rail 2300 (Set)
• Part No: REN-520223
• Supplier Part No: 520223
• Mounting category: Mounting rails
• Assembly variant: East-West
• Dimensions: 2400 × 98 × 61 mm
• Length: 2.3 m
• Weight: 2.748 kg
• Material: Aluminium, Stainless Steel, Polyethylene (PE)
• Module orientation: Landscape
• Angle of inclination: 10°
• Maximum module width (FS Pro 10-EW): 1,071 – 1,150 mm
• Maximum module width (FS Pro 10-EW-LS): 1,050 – 1,134 mm
• Maximum module length (FS Pro 10-EW): Check module clamping range
• Maximum module length (FS Pro 10-EW-LS): No limitation

Key Features

• 10° tilt angle engineered for east-west flat roof configurations
• Aluminium, stainless steel, and polyethylene construction delivers corrosion resistance and structural stability
• Lightweight profile designed to support efficient handling and roof loading requirements
• Aerodynamic design supports reduced wind load and flat roof performance
• Compatible with landscape module orientation and FS Pro system components

System Capabilities

• Designed for east-west PV arrays on flat roofs with inclinations up to 5°
• Supports landscape-mounted modules within specified width and length parameters
• Functions within FS Pro 10-EW and FS Pro 10-EW-LS system configurations
• Integrates with Renusol FS Pro clamps and ballast-based mounting layouts

Installation Notes

• Supplied as a complete base rail set
• Position base rail according to FS Pro east-west system design and spacing requirements
• Secure modules using compatible FS Pro clamps within specified clamping range
• Follow Renusol ballast calculations and wind load guidelines for full system compliance
• Renusol mounting equipment must be used exclusively with Renusol mounting components

Included Components

• 1 × Renusol FS Pro 10-EW Base Rail 2300 (Set)
