Renusol
Self Drilling Screw 4.8 x 19 A2
Self Drilling Screw 4.8 x 19 A2
Share

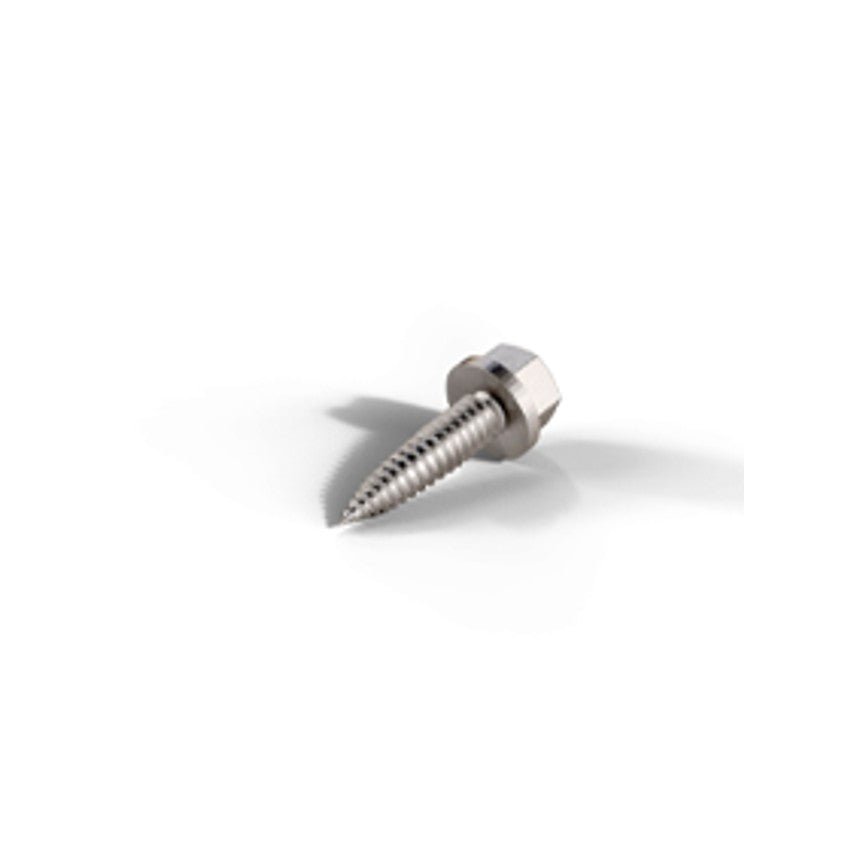

Renusol Self Drilling Screw 4.8 x 19mm A2 REN-900229
The Renusol REN-900229 is a 4.8 x 19mm A2 stainless steel self drilling screw used as a flat roof fixing within compatible Renusol mounting systems. It features an integrated drill bit tip for direct installation into aluminium and steel roof sheets without pre-drilling.
Key Technical Details
- Product type: Self drilling screw
- Mounting category: Mounting - Flat Roof
- Screw diameter: 4.8 mm
- Thread length: 19.0 mm
- Material: Stainless steel A2
- Screw head: Hexagon head with flange
- Screw tip: Drill bit
- Drive: Width across flats 8 mm
- Pre-drilling: Not required
- Renusol part number: REN-900229
- Supplier part number: 900229
- Weight: 0.004 kg
System Capabilities
- Compatible with FS10S and FS18S ballasted mounting systems
- Can be used with connectors to join lengths of rail
Installation Notes
- Install directly into aluminium or steel roof sheets without pre-drilling
- Ensure the flange seats evenly on the roof surface
- Tighten in accordance with Renusol installation torque specifications
- Renusol mounting equipment must not be combined with mounting components from other suppliers
Certifications and Compliance
- Certification: ETA 10/0200
- Compatible roof materials: Aluminium, Steel
- Metal thickness aluminium: 0.50 - 1.00 mm
- Metal thickness steel: 0.40 - 1.00 mm
About Renusol
Renusol operates internationally within the solar sector under the principle of Solid, Simple Service. The company develops PV mounting systems across multiple product families and is part of the PARI Group. Its focus remains on secure, standardised mounting solutions supported by structured system design.
About DECO Group
We are a UK-based solar wholesaler and distributor supplying professional installers with trade-focused PV mounting components. Our emphasis is on technically proven hardware, accurate specification data, and consistent support across installation-led solar projects.
