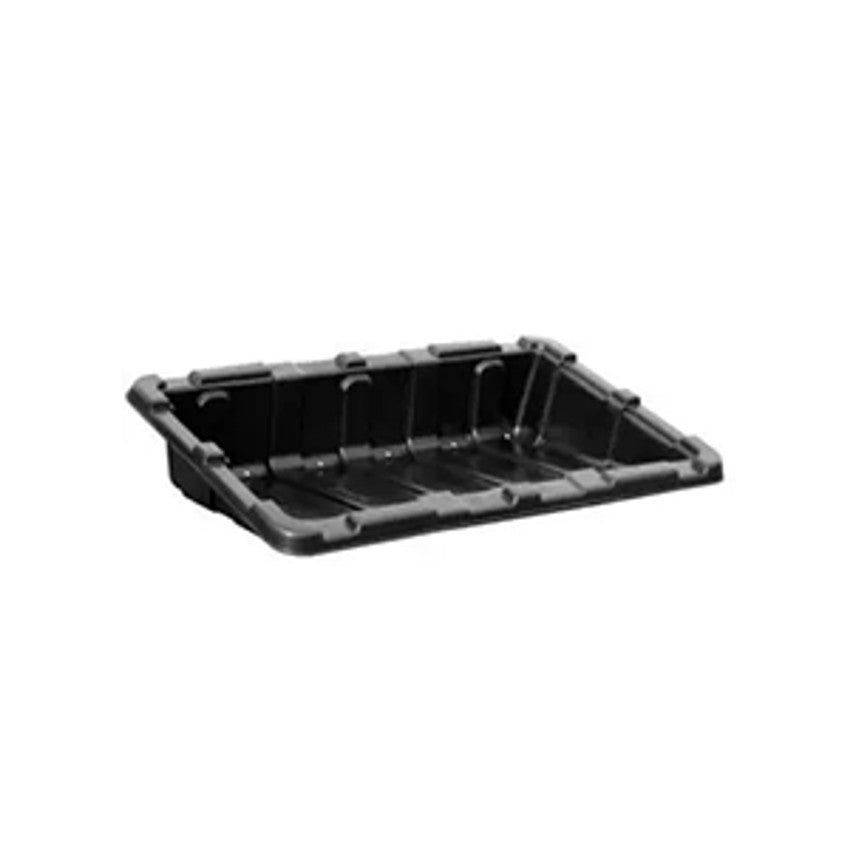

Renusol ConSole+ with Mounting Material and U-Profile
The Renusol ConSole+ is a ballasted PV mounting system engineered for flat roof installations with pitches up to 5°. This system provides a fixed 15° tilt angle and enables non-penetrative module installation using weighted ballast to resist wind loads, making it suitable for membrane, bitumen, and green roof substrates where roof penetration is restricted or undesirable.
Key Technical Details
- Product: Renusol ConSole+ (including mounting material and U-Profile)
- Part No: REN-520075-K
- Supplier Part No: 520075-K
- Mounting category: Flat roof trays
- System angle: 15°
- Maximum roof pitch: 5°
- Mounting method: Ballasted (non-penetrative)
- Weight: 8 kg
- Length: 1.71 m
- Module type: Framed PV modules
- Module width (approximate): 1046 – 1160 mm
- Module min–max W: Not required
- Module min–max X: 1016 – 1110 mm
- Module min–max Y: 690 – 1180 mm
- Module min–max Z: 1550 – 2400 mm
- Ballast type: Gravel, paving slabs, or similar
Key Features
- 15° fixed tilt angle engineered for flat roof PV performance and structural stability
- Ballasted design eliminates roof penetration, preserving waterproofing integrity on membrane and bitumen roofs
- Compatible with most commercially available framed standard PV modules within specified dimensional ranges
- UV-resistant construction designed for long-term outdoor exposure and environmental durability
- Lightweight system supports efficient transport, handling, and installation procedures
System Capabilities
- Designed for flat roof PV installations with roof pitches up to 5° without penetration
- Supports commercial and residential flat roof solar deployments on membrane, bitumen, and green roof substrates
- Functions in locations where roof penetration is prohibited or carries waterproofing risk
- Ballast weight requirements depend on building height, location, roof condition, and local wind and snow load parameters
- Reference ballast values provided in Renusol installation manual (Preparing the Assembly – Point 2, Page 5)
Installation Notes
- Supplied as complete unit including U-profile and mounting hardware
- Position ConSole+ unit on flat roof surface according to system layout and spacing requirements
- Install framed PV modules at fixed 15° tilt angle using included mounting components
- Apply ballast material in accordance with site-specific wind load, snow load, building height, and roof condition calculations
- Verify system stability and ballast adequacy before commissioning
- Renusol mounting equipment must not be used with mounting equipment from other suppliers
Included Components
- 1 × ConSole+ unit
- 1 × U-profile
- Complete mounting hardware
About Renusol
Renusol GmbH is based in Cologne, Germany, and manufactures photovoltaic mounting systems across the European market. The company develops mounting solutions under four core product platforms: VarioSole, MetaSole, InterSole, and ConSole, addressing pitched roof, flat roof, and ground-mounted installation requirements with both penetrative and non-penetrative system variants.
