Renusol ConSole+ Ground Mount
The Renusol ConSole+ Ground Mount is a ballasted mounting system engineered for ground-level PV installations where traditional anchoring is impractical or restricted. This system provides a fixed 15° tilt angle and is designed for unstable ground conditions including landfill sites, brownfield locations, and soft or reclaimed land where ground penetration is not feasible.
Key Technical Details
- Product: Renusol ConSole+ Ground Mount
- Part No: REN-520075-GROUND
- Mounting category: Ground mount
- System angle: 15°
- Mounting method: Ballasted (non-penetrative)
- Weight: 8 kg
- Length: 1.71 m
- Module type: Framed PV modules
- Module width (approximate): 1046 – 1160 mm
- Module dimension X: 1016 – 1110 mm
- Module dimension Y: 690 – 1180 mm
- Module dimension Z: 1550 – 2400 mm
- Ballast type: Gravel, paving slabs, or similar
Key Features
- 15° fixed tilt angle engineered for balanced energy yield and structural stability
- Ballasted design eliminates requirement for ground penetration or concrete foundations
- Compatible with most commercially available framed standard PV modules within specified dimensions
- Low-impact installation method suitable for unstable, sensitive, or temporary ground conditions
- Durable construction designed for long-term outdoor exposure and environmental resistance
System Capabilities
- Designed for ground-mounted PV installations on unstable soil, landfill sites, and brownfield locations
- Supports temporary or relocatable solar arrays where permanent foundations are not appropriate
- Functions in off-grid systems and remote locations requiring non-invasive mounting solutions
- Ballast weight requirements depend on site-specific wind load, snow load, ground condition, and location parameters
- Reference ballast values provided in Renusol installation manual (Preparing the Assembly – Point 2, Page 5)
Installation Notes
- Prepare level ground surface suitable for ballast placement
- Assemble ConSole+ frame according to Renusol installation guidelines
- Install framed PV modules at fixed 15° tilt angle using included mounting hardware
- Apply ballast material in accordance with site-specific wind and snow load calculations
- Verify system stability and ballast adequacy before commissioning
- Renusol mounting equipment must be used exclusively with Renusol mounting components

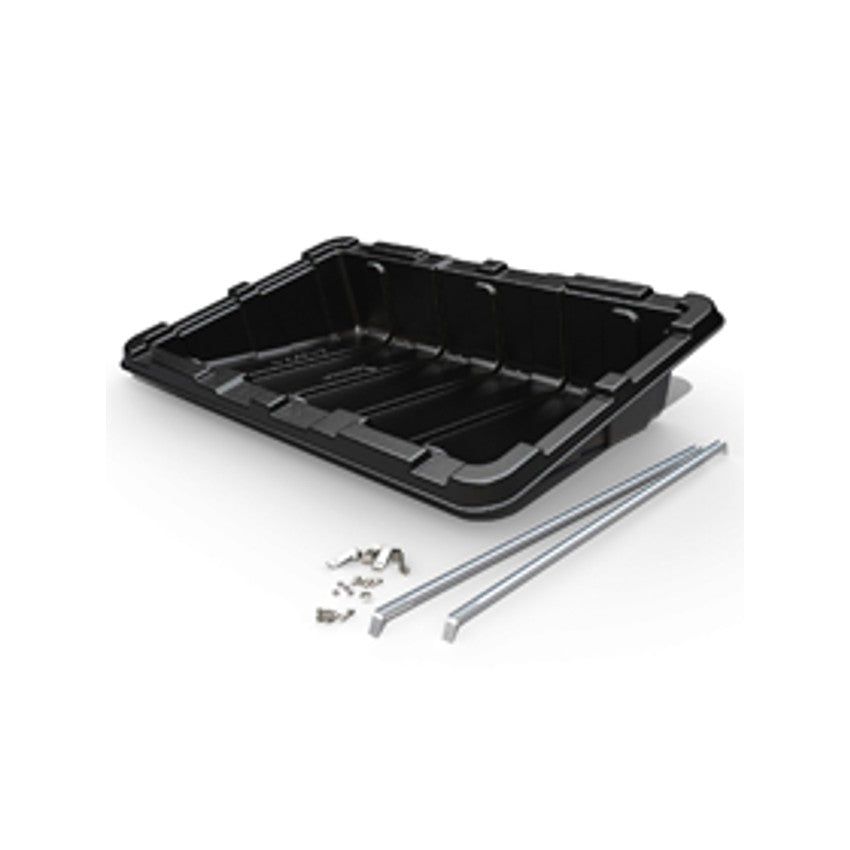

Included Components
- 1 × ConSole+ unit (520075-K)
- 1 × U-profile
- Complete mounting hardware
