Key Information
- Built-in module level monitoring with Ethernet, wireless and GSM communication
- Easy config using smartphone and SolarEdge SetApp
- Small and light to install
- Type 2 DC and AC surge protection
- Arc Fault protection
- IP65
- DC safety unit for external DC Isolators
- Compatible with S1200 Optimisers
SolarEdge
Three Phase Inverter, 33.3kW, MC4, DC safety unit with switch, AC & DC SPD, AC/DC Segregation
Three Phase Inverter, 33.3kW, MC4, DC safety unit with switch, AC & DC SPD, AC/DC Segregation
Ready to ship
Next working day delivery available
Order by noon for delivery the next working day
Choose your delivery date at checkout
Couldn't load pickup availability
Share

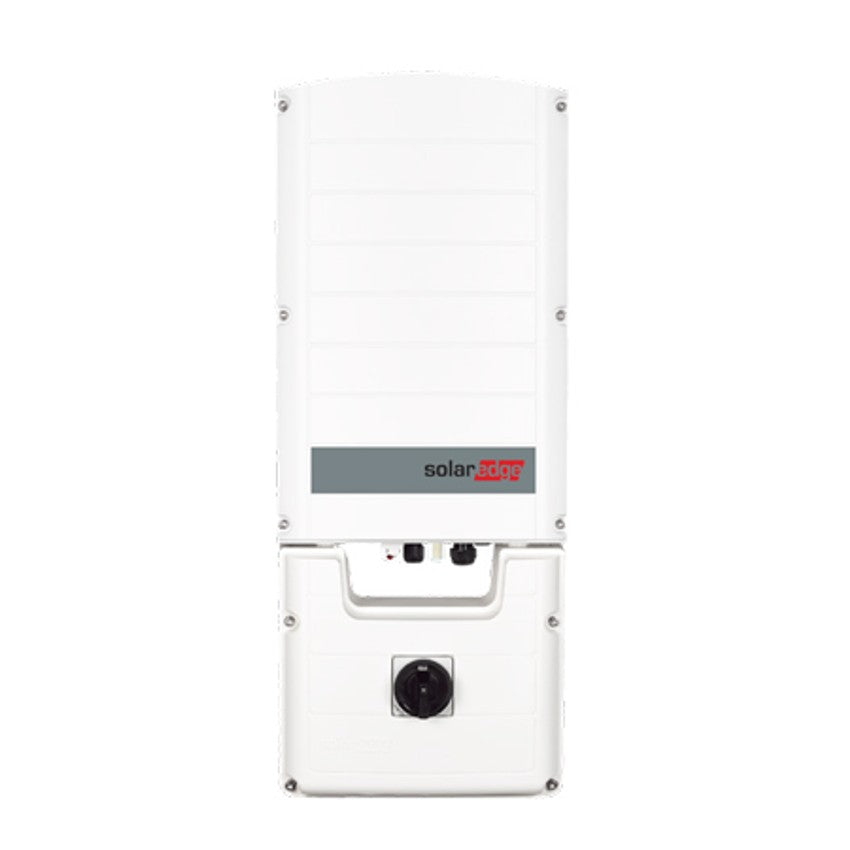

SolarEdge Three Phase Inverter, 33.3kW, MC4, DC Safety Unit with Switch, AC & DC SPD, AC/DC Segregation
The SolarEdge SE33.3K-RW00IBNJ4 is a 33.3kW three-phase inverter designed for medium to large commercial rooftop and ground mount installations. It combines sophisticated digital control technology with efficient power conversion architecture to achieve superior solar power harvesting and best-in-class reliability, featuring integrated AC and DC surge protection, DC safety unit with switch, and AC/DC segregation for enhanced safety with 98.3% system efficiency.
Key Technical Details
- Product: SolarEdge Three Phase Inverter, 33.3kW, MC4, DC Safety Unit with Switch, AC & DC SPD, AC/DC Segregation
- Part No: SE33.3K-RW00IBNJ4
- Supplier Part No: SE33.3K-RW00IBNJ4
- Rated power: 33,300 W
- Maximum DC power: 50,000 W (58,275 W)
- Maximum AC power (5 minutes): 33,300 W
- Surge AC power (1 second): 33,300 W
- Maximum current (per phase): 48.25 A
- Maximum input voltage: 1,000 V
- Minimum MPPT voltage: 750 V
- Maximum MPPT voltage: 1,000 V
- Maximum DC current: 48.25 A
- Maximum DC inputs: 4
- Euro efficiency: 98%
- System efficiency: 98.3%
- Connector type: MC4
- Included connectors: 0
- Transformer: None
- Integrated DC switch: Yes
- Dimensions: 836 x 317 x 300 mm
- Weight: 32 kg
- IP rating: IP65
- Number of phases: 3
- Communication: Ethernet, RS485, (WiFi, cellular optional)
- Standard warranty: 12 years
Key Features
- Outstanding inverter for medium to large commercial rooftop and ground mount installations
- Built-in module-level monitoring with Ethernet, wireless and GSM communication
- Easy configuration using smartphone and SolarEdge SetApp
- Small and lightweight design for easy installation
- Type 2 DC and AC surge protection for enhanced system protection
- Arc fault protection for advanced safety
- IP65 rating for outdoor and indoor installation
- DC safety unit with switch for external DC isolators
- AC/DC segregation for enhanced safety and installation flexibility
- Compatible with S1200 power optimisers (30A fuse inbuilt)
- Fixed-voltage technology ensures optimal input voltage operation regardless of module count or environmental conditions
- Proprietary data monitoring receiver integrated into inverter
System Capabilities
- Oversizing up to 150% possible
- Superior solar power harvesting with best-in-class reliability
- Compatible with S1200 power optimisers with 30A fuse inbuilt
- Built-in module-level monitoring for enhanced system performance tracking
- Multiple communication options: Ethernet, RS485, WiFi, and cellular (optional)
- Aggregates power optimiser performance data from each PV module
- Data transmission to SolarEdge monitoring platform for performance analysis, fault detection and troubleshooting
- Export limitations possible using meter
- Fixed-voltage technology ensures inverter operates at optimal input voltage
Installation Notes
- Three-phase commercial installation
- Designed for medium to large commercial rooftop and ground mount installations
- Easy configuration via SolarEdge SetApp mobile application
- Compact and lightweight design for simplified installation
- DC safety unit with integrated switch for external DC isolators
- Type 2 AC and DC surge protection included
- AC/DC segregation for enhanced safety
- IP65 rating suitable for outdoor and indoor installation
- DC fuses: Not included
- Compatible with S1200 power optimisers
- Extended warranty options available: 20-year extension (standard and DC)
About SolarEdge
SolarEdge is a global leader in smart energy technology, focusing on innovation and environmental protection. For over a decade, SolarEdge has revolutionised solar products by changing the way power is harvested and managed in photovoltaic systems, maximising power generation for residential and large-scale PV installations.
About DECO Group
We distribute SolarEdge three-phase commercial inverters and power optimiser systems to professional installers throughout the UK. Our technical support covers medium to large commercial installations with SetApp commissioning, DC safety unit with integrated switch, Type 2 AC and DC surge protection, AC/DC segregation for enhanced safety, S1200 optimiser compatibility with 30A inbuilt fuse, fixed-voltage technology, and module-level monitoring for 33.3kW three-phase commercial rooftop and ground mount installations delivering 98.3% system efficiency with comprehensive built-in protection features and up to 150% DC oversizing capability.
