Key Information
- Built-in module level monitoring with Ethernet, wireless and GSM communication
- Easy config using smartphone and SolarEdge SetApp
- Small and light to install
- Type 2 DC and AC surge protection
- Arc Fault protection
- IP65
- DC safety unit for external DC Isolators
- Compatible with S1200 Optimisers
SolarEdge
Three Phase Inverter, 30kW, MC4, DC safety unit with switch, AC & DC SPD, AC/DC Segregation
Three Phase Inverter, 30kW, MC4, DC safety unit with switch, AC & DC SPD, AC/DC Segregation
Share

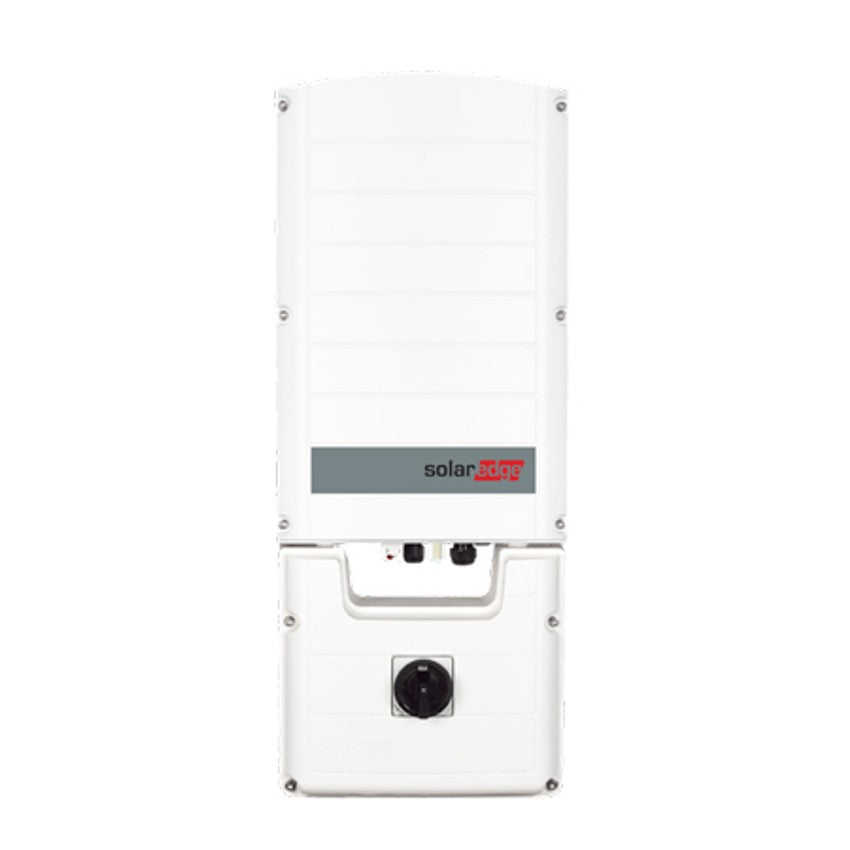

SolarEdge Three Phase Inverter, 30kW, MC4, DC Safety Unit with Switch, AC & DC SPD, AC/DC Segregation
The SolarEdge SE30K-RW00IBNJ4 is a 30kW three-phase inverter designed for medium to large commercial rooftop and ground mount installations. It features built-in module-level monitoring, Type 2 DC and AC surge protection, DC safety unit with integrated switch, and AC/DC segregation for enhanced safety, with easy configuration using smartphone via SolarEdge SetApp.
Key Technical Details
- Product: SolarEdge Three Phase Inverter, 30kW, MC4, DC Safety Unit with Switch, AC & DC SPD, AC/DC Segregation
- Part No: SE30K-RW00IBNJ4
- Supplier Part No: SE30K-RW00IBNJ4
- Rated power: 30,000 W
- Maximum DC power: 45,000 W
- Maximum AC power (5 minutes): 29,990 W
- Surge AC power (1 second): 29,990 W
- Maximum input voltage: 1,000 V
- Minimum MPPT voltage: 13 V
- Maximum MPPT voltage: 60 V
- Maximum DC current: 43.5 A
- Maximum DC inputs: 4
- Euro efficiency: 98%
- Connector type: MC4
- Included connectors: 0
- Transformer: None
- Integrated DC switch: Yes
- Weight: 32 kg
- IP rating: IP65
- Number of phases: 3
- Standard warranty: 12 years
Key Features
- Outstanding inverter for medium to large commercial rooftop and ground mount installations
- Built-in module-level monitoring with Ethernet, wireless and GSM communication
- Easy configuration using smartphone and SolarEdge SetApp
- Small and lightweight design for easy installation
- Type 2 DC and AC surge protection for enhanced system protection
- Arc fault protection for advanced safety
- IP65 rating for outdoor and indoor installation
- DC safety unit with integrated switch for external DC isolators
- AC/DC segregation for enhanced safety and installation flexibility
- Compatible with S1200 power optimisers
System Capabilities
- Designed for medium to large commercial rooftop and ground mount installations
- 98% Euro efficiency for maximum energy production
- Compatible with S1200 power optimisers
- Built-in module-level monitoring for enhanced system performance tracking
- Multiple communication options: Ethernet, wireless, and GSM
- Supports DC oversizing for optimal power generation
Installation Notes
- Three-phase commercial installation
- Easy configuration using SolarEdge SetApp mobile application
- Compact and lightweight design for simplified installation
- DC safety unit with integrated switch included
- Type 2 DC and AC surge protection included
- AC/DC segregation for enhanced safety
- IP65 rating suitable for outdoor and indoor installation
- DC fuses: Not included
- Compatible with S1200 power optimisers
- Extended warranty options available: 20-year extension (standard and DC)
