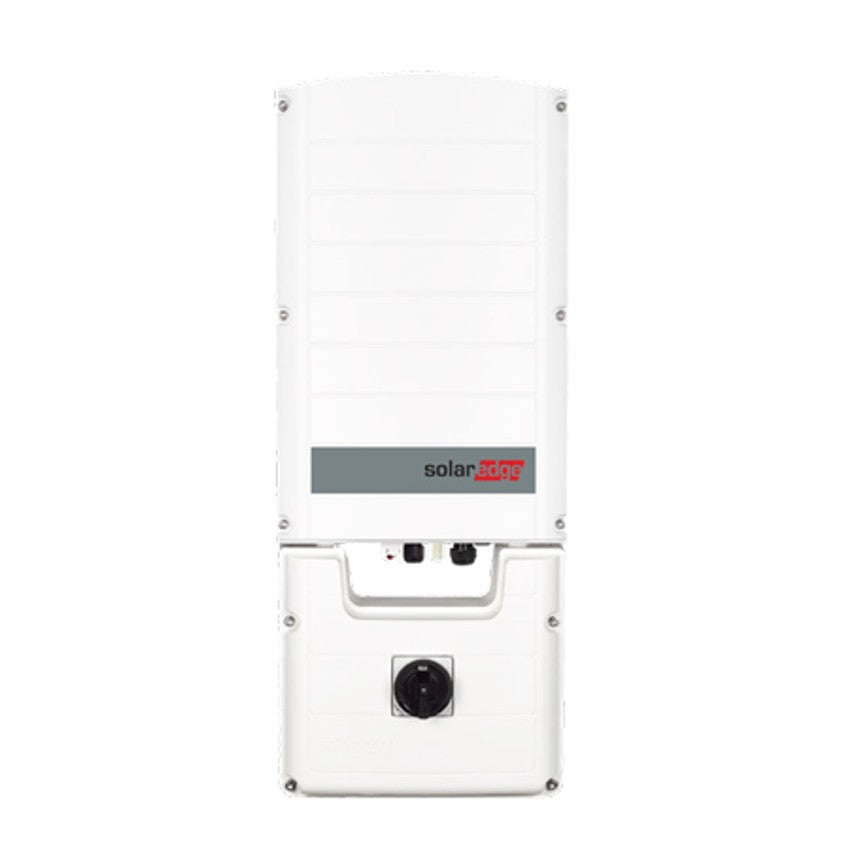

SolarEdge Three Phase Inverter, 25kW, MC4, DC Safety Unit with Switch, AC & DC SPD, AC/DC Segregation

The SolarEdge SE25K-RW00IBNJ4 is a 25kW three-phase inverter specifically designed to work with SolarEdge power optimisers. It features integrated AC and DC surge protection, DC safety unit with switch eliminating the need for external DC isolators, and AC/DC segregation for enhanced safety, combining sophisticated digital control technology with efficient power conversion architecture for superior solar power harvesting and 98.3% maximum efficiency.

Key Technical Details

• Product: SolarEdge Three Phase Inverter, 25kW, MC4, DC Safety Unit with Switch, AC & DC SPD, AC/DC Segregation
• Part No: SE25K-RW00IBNJ4
• Supplier Part No: SE25K-RW00IBNJ4
• Rated power: 25,000 W
• Rated AC active power output: 25,000 W
• Maximum DC power: 37,500 W
• Maximum DC power (Module STC): 43,750 W
• Maximum AC power (5 minutes): 25,000 W
• Surge AC power (1 second): 25,000 W
• Maximum current (per phase): 36.25 A
• Maximum input voltage: 1,000 V
• Operating voltage range: 680 - 1000 Vdc
• Minimum MPPT voltage: 750 V
• Maximum MPPT voltage: 1,000 V
• Maximum DC current: 36.25 A
• Maximum DC inputs: 4
• DC fuses: 8
• Maximum inverter efficiency: 98.3%
• Euro efficiency: 98%
• System efficiency: 98.3%
• Connector type: MC4
• Included connectors: 4
• Transformer: None
• Integrated DC switch: Yes
• Dimensions with Safety Unit (H x W x D): 836 x 317 x 300 mm
• Weight: 32 kg (36.5 kg with Safety Unit)
• IP rating: IP65
• Number of phases: 3
• Communication: Ethernet, RS485, (WiFi, cellular optional)
• Standard warranty: 12 years

Key Features

• Specifically designed to work with SolarEdge power optimisers
• Integrated DC Safety Unit eliminates need for external DC isolators
• Integrated Type 2 AC and DC surge protection, designed to provide enhanced resilience against surges from lightning or other electrical disturbances
• Ideal for commercial systems and medium to large commercial rooftop and ground mount installations
• Excellent reliability with standard 12-year warranty
• Quick and easy commissioning from smartphone via the SolarEdge SetApp
• Built-in module-level monitoring with Ethernet, wireless and GSM communication
• IP65 rated - suitable for outdoor and indoor installations
• Small and lightweight design for easy installation
• Arc fault protection for advanced safety
• AC/DC segregation for enhanced safety and installation flexibility
• Compatible with S1200 power optimisers (30A fuse inbuilt)
• Fixed-voltage technology ensures optimal input voltage operation
• Proprietary data monitoring receiver integrated into inverter

System Capabilities

• Oversizing up to 150% possible
• Superior solar power harvesting with best-in-class reliability
• Compatible with S1200 power optimisers
• Built-in module-level monitoring for enhanced system performance tracking
• Multiple communication options: Ethernet, RS485, WiFi, and cellular (optional)
• Aggregates power optimiser performance data from each PV module
• Data transmission to SolarEdge monitoring platform for performance analysis, fault detection and troubleshooting
• Export limitations possible using meter
• Fixed-voltage technology ensures inverter operates at optimal input voltage regardless of module count or environmental conditions

Installation Notes

• Three-phase commercial installation
• Outstanding inverter for medium to large commercial rooftop and ground mount installations
• Quick and easy commissioning via SolarEdge SetApp mobile application
• Compact and lightweight design for simplified installation
• Integrated DC safety unit with switch eliminates need for external DC isolators
• Type 2 AC and DC surge protection included
• AC/DC segregation for enhanced safety
• IP65 rating suitable for outdoor and indoor installation
• 8 DC fuses included
• Compatible with S1200 power optimisers with 30A fuse inbuilt
• Extended warranty options available: 20-year and 25-year extensions
