Key Information
- Dimensions (H x W x D): 558 x 328 x 273mm
- Weight: 32kg
- Unit for Three phase inverter with Synergy technology with Automatic Rapid Shutdown upon AC grid disconnect.
SolarEdge
Synergy Secondary Unit with Rapid Shutdown Device
Synergy Secondary Unit with Rapid Shutdown Device
Share

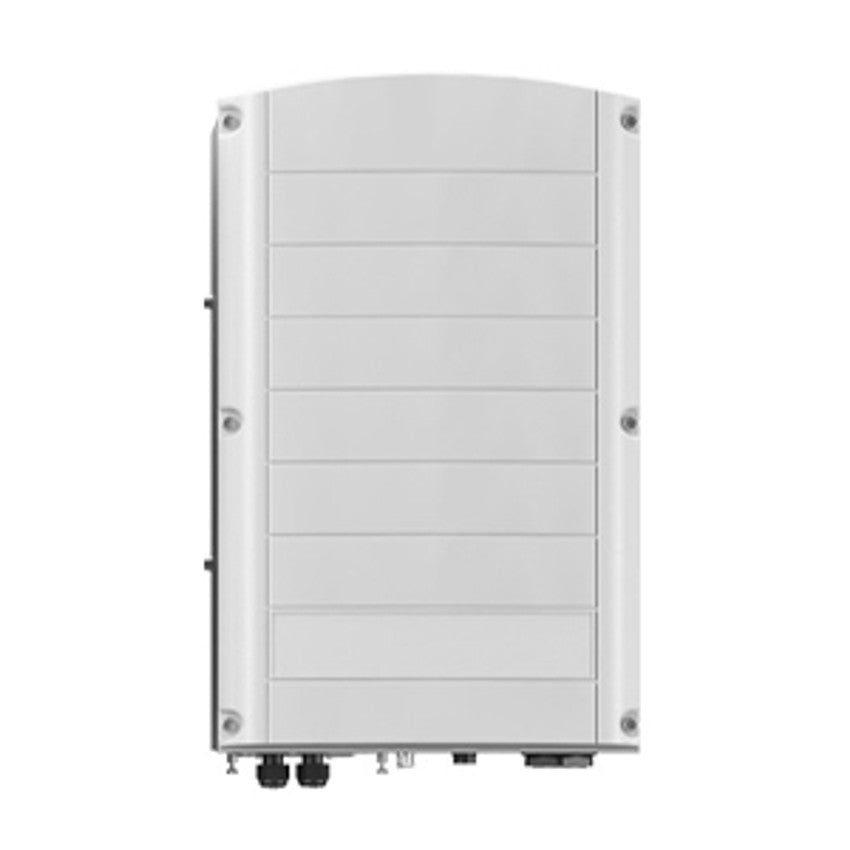

SolarEdge Synergy Secondary Unit with Rapid Shutdown Device
The SolarEdge SE-SYNERGY-RSD is a Synergy Secondary Unit with integrated Rapid Shutdown Device designed for three-phase inverter systems with Synergy technology. It features a lightweight, modular design that enables simple 2-person installation and is powered by a unique pre-commissioning process for rapid system deployment, with automatic rapid shutdown upon AC grid disconnect.
Key Technical Details
- Product: SolarEdge Synergy Secondary Unit with Rapid Shutdown Device
- Part No: SE-SYNERGY-RSD
- Supplier Part No: SESUK-RWR0INNN4
- Maximum DC power: 67,500 W
- Maximum AC power (5 minutes): 49,990 W
- Surge AC power (1 second): 49,990 W
- Maximum input voltage: 1,000 V
- Maximum DC current: 74 A
- Maximum DC inputs: 6
- Euro efficiency: 98%
- Connector type: MC4
- Included connectors: 12
- DC fuses: 12
- Transformer: None
- Integrated DC switch: Yes
- Dimensions (H x W x D): 558 x 328 x 273mm
- Weight: 32 kg
- Number of phases: 3
- Standard warranty: 12 years
Key Features
- Rapid system installation thanks to pre-commissioning feature
- Lightweight, modular design enables simple 2-person installation
- Built-in thermal sensors detect faulty wiring, ensuring enhanced protection and safety
- Includes RSD (Rapid Shutdown Device)
- Automatic rapid shutdown upon AC grid disconnect
- Integrated DC switch for safe system isolation
- Three-phase configuration for commercial and industrial applications
- Powered by unique pre-commissioning process for rapid deployment
System Capabilities
- Unit for three-phase inverter with Synergy technology
- Must be paired with Synergy Manager to form complete inverter system
- Should be paired with one or two other secondary units, as well as at least one Synergy Manager
- Supports modular system configuration for scalable commercial installations
- Enhanced thermal monitoring for improved safety and reliability
- Automatic rapid shutdown functionality for enhanced safety
Installation Notes
- Warning: SolarEdge Synergy Unit cannot be used on its own - it always requires a Synergy Manager to work
- Designed for three-phase commercial and industrial installations
- Lightweight modular design enables 2-person installation
- Pre-commissioning process enables rapid system installation
- Integrated DC switch included
- 12 DC fuses included
- Built-in thermal sensors for faulty wiring detection
- With Rapid Shutdown Device for automatic shutdown upon AC grid disconnect
