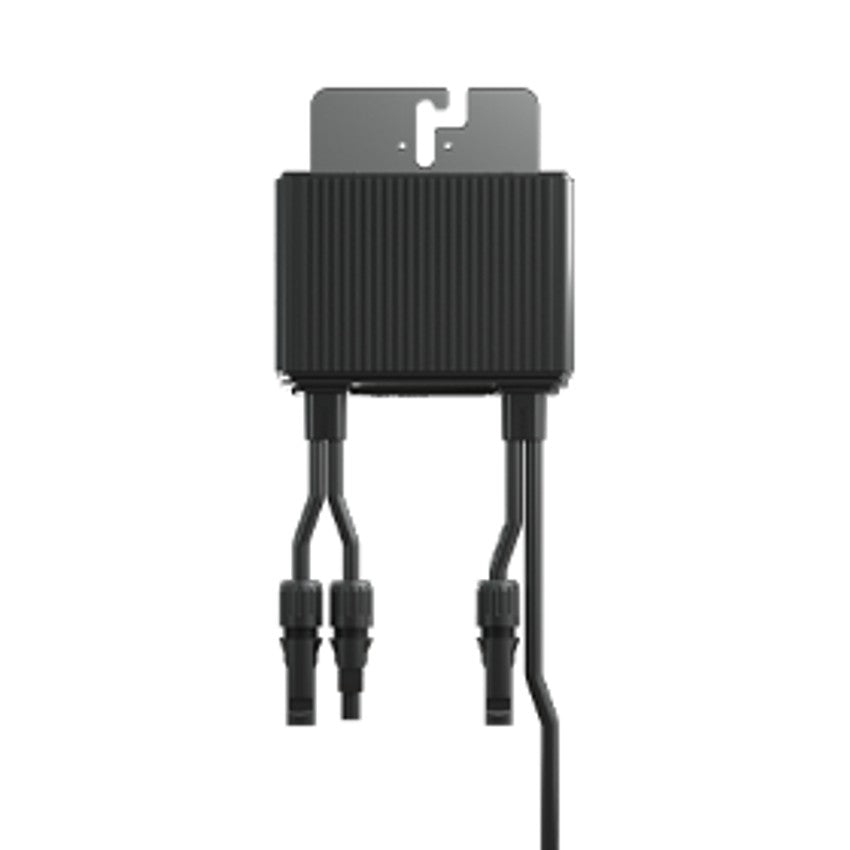

SolarEdge S440-1GM4MRM Power Optimiser 440W

The SolarEdge S440-1GM4MRM is a 440W power optimiser designed for residential PV installations. It enables module-level power optimisation and is specifically designed to work with SolarEdge residential inverters, supporting modules up to 440Wp.

Key Technical Details

• Product: SolarEdge S440-1GM4MRM Power Optimiser
• Part No: S440-MC4
• Supplier Part No: S440-1GM4MRM
• Rated input DC power: 440 W
• Maximum DC power: 440 W
• Absolute maximum input voltage: 60 V
• MPPT operating range: 8 – 60 Vdc
• Minimum MPPT voltage: 8 V
• Maximum MPPT voltage: 60 V
• DC startup voltage: 8 V
• DC shutdown voltage: 8 V
• Maximum DC current: 14.5 A
• Maximum efficiency: 99.5%
• Euro efficiency: 98.6%
• MPPT quantity: 1
• Maximum DC inputs: 1
• Connector type: MC4
• Input wire length: 0.1m
• Output wire length: 2.3m+ / 0.1m-
• Dimensions: 129 x 153 x 30 mm
• Weight: 0.69 kg
• Warranty: 25 years

Key Features

• Specifically designed to work with SolarEdge residential inverters
• Module-level power optimisation tracks individual solar modules to increase system energy production
• Mitigates all types of module mismatch loss, from manufacturing tolerance to partial shading
• Simplified cable management and easy assembly using single bolt installation
• Detects abnormal PV connector behaviour, preventing potential safety issues
• Module-level voltage shutdown for installer and firefighter safety
• Compatible with bifacial PV modules
• Superior efficiency of 99.5%

System Capabilities

• Supports PV modules up to 440Wp
• Flexible system design for maximum space utilisation
• Optimises energy production at individual module level
• Compatible with SolarEdge residential inverter range

Installation Notes

• Designed for residential PV installations
• Single bolt assembly for faster installation
• Integrated DC switch: No
• DC fuses: Not included
• Connectors: Not included
