Key Information
- Specifically designed to work with SolarEdge Comercial inverters
- Mitigates all types of module mismatch loss, from manufacturing tolerance to partial shading
- Faster installations with simplified cable management and easy assembly using a single bolt
- Detects abnormal PV connector behavior, preventing potential safety issues
- Module-level voltage shutdown for installer and firefighter safety
- Flexible system design for maximum space utilization
- Compatible with bifacial PV modules
- Superior efficiency (99.5%)
SolarEdge
S1400 Power Optimizer (Short Input 0.1m)
S1400 Power Optimizer (Short Input 0.1m)
Ready to ship
Next working day delivery available
Order by noon for delivery the next working day
Choose your delivery date at checkout
Couldn't load pickup availability
Share

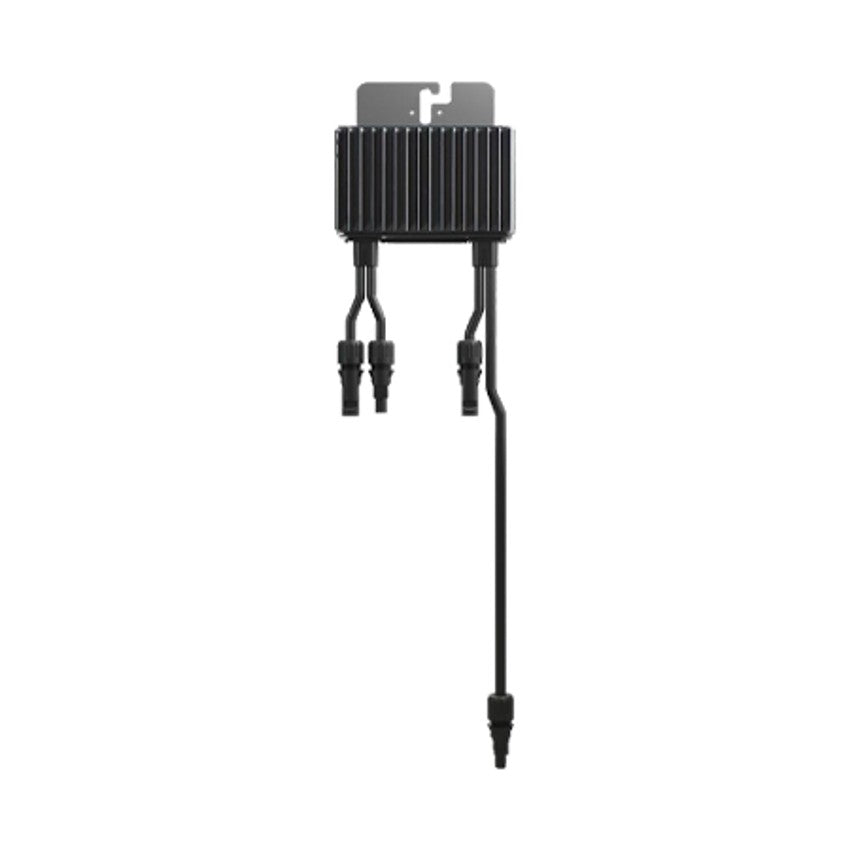

SolarEdge S1400 Power Optimiser (Short Input 0.1m) - Commercial
The SolarEdge S1400-MC4 is a commercial-grade dual-panel power optimiser with short input cable configuration. Designed for commercial installations, it supports two high-powered or bifacial panels in series with 1400W capacity, providing module-level optimisation and enhanced safety features for large-scale PV systems.
Key Technical Details
- Product: SolarEdge S1400 Power Optimiser (Short Input)
- Part No: S1400-MC4
- Supplier Part No: S1400-1GM4MBWD
- Maximum DC power: 1,400 W
- Maximum input voltage: 125 V
- Minimum MPPT voltage: 12 V
- Maximum MPPT voltage: 125 V
- DC startup voltage: 12 V
- DC shutdown voltage: 125 V
- Maximum DC current: 20 A
- Maximum DC inputs: 2
- Maximum efficiency: 99.5%
- MPPT quantity: 1
- Input cable length: 0.1m
- Output cable length: 5.7m+ / 0.1m-
- Connector type: MC4
- Included connectors: 12
- Weight: 1.09 kg
- Phases: 1
Key Features
- Specifically designed to work with SolarEdge commercial inverters
- Dual-panel optimisation supports two high-output or bifacial PV modules, reducing system hardware requirements
- Mitigates all types of module mismatch loss, from manufacturing tolerance to partial shading
- Single-bolt mounting and simplified cable management for faster installations
- Detects abnormal PV connector behaviour, preventing potential safety issues
- Module-level voltage shutdown for installer and firefighter safety
- Compatible with bifacial PV modules
- Superior efficiency of 99.5%
- Flexible system design for maximum space utilisation
System Capabilities
- Allows connection of two high-powered or bifacial panels in series to one power optimiser
- Enables uneven string lengths, longer strings, and mix of panel types and orientations on same string
- Reduces impact of partial shading on array performance
- Compatible with wide range of commercial PV technologies
- Rated up to 24A for output current
Installation Notes
- Designed for commercial PV installations
- Short input cable (0.1m) configuration
- Single-bolt assembly for simplified deployment
- Integrated DC switch: No
- DC fuses: Not included
- Important: S1400 Power Optimisers are rated up to 24A for output current. Therefore, they are NOT suitable to be used with SolarEdge Inverter models that have integrated 25A or 30A DC-fuses. To replace these fuses you will require the part SE-FLD-3PH-NEUTRAL-LINK to replace these fuses to allow the S1400 to be compatible with the Manager inverters
- If paired with any of the fused commercial inverters, the customer is required to replace the fuses inside with SE-FLD-3PH-NEUTRAL-LINK. 1 for each fuse. 4x SE-FLD-3PH-NEUTRAL-LINK per Manager unit
About SolarEdge
SolarEdge is a global leader in smart energy technology, focusing on innovation and environmental protection. For over a decade, SolarEdge has revolutionised solar products by changing the way power is harvested and managed in photovoltaic systems, maximising power generation for residential and large-scale PV installations.
