Key Information
- Specifically designed to work with SolarEdge Comercial inverters
- Mitigates all types of module mismatch loss, from manufacturing tolerance to partial shading
- Faster installations with simplified cable management and easy assembly using a single bolt
- Detects abnormal PV connector behavior, preventing potential safety issues
- Module-level voltage shutdown for installer and firefighter safety
- Flexible system design for maximum space utilization
- Compatible with bifacial PV modules
- Superior efficiency (99.5%)
SolarEdge
S1200 Power Optimizer (Short Input 0.1m)
S1200 Power Optimizer (Short Input 0.1m)
Ready to ship
Next working day delivery available
Order by noon for delivery the next working day
Choose your delivery date at checkout
Couldn't load pickup availability
Share

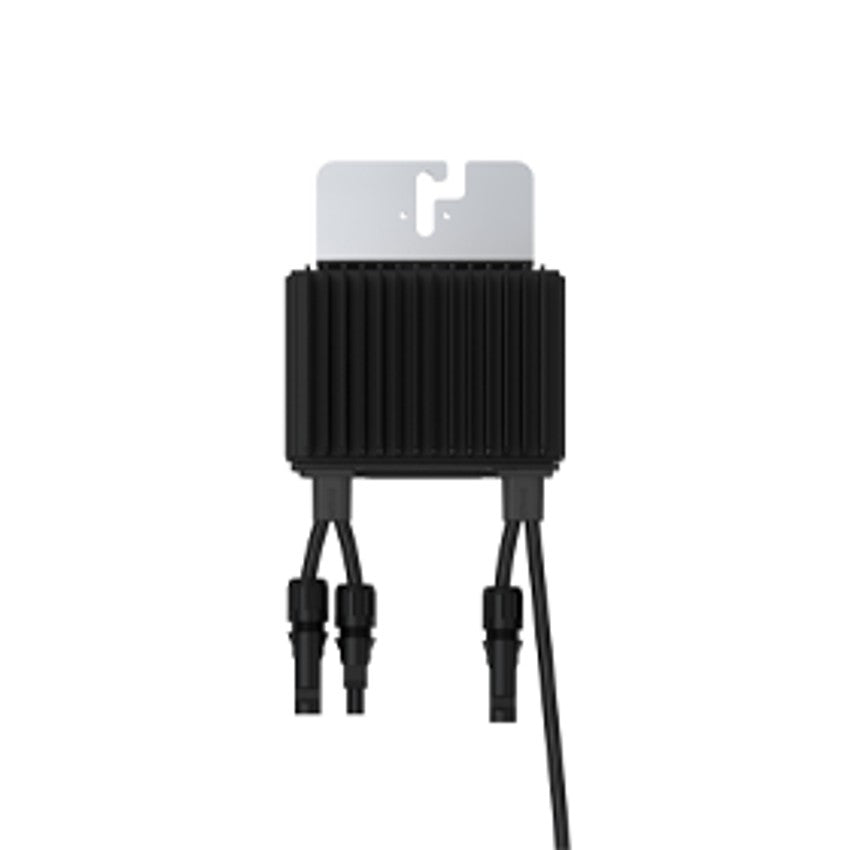

SolarEdge S1200 Power Optimiser (Short Input 0.1m) - Commercial
The SolarEdge S1200-MC4 is a commercial-grade dual-panel power optimiser with short input cable configuration. Designed for commercial installations, it supports two high-powered or bifacial panels in series with 1200W capacity, reducing the total number of optimisers required while providing module-level optimisation and enhanced safety features.
Key Technical Details
- Product: SolarEdge S1200 Power Optimiser (Short Input)
- Part No: S1200-MC4
- Supplier Part No: S1200-1GM4MBV
- Maximum DC power: 1,260 W
- Maximum input voltage: 125 V
- Minimum MPPT voltage: 12 V
- Maximum MPPT voltage: 125 V
- DC startup voltage: 12 V
- DC shutdown voltage: 125 V
- Maximum DC current: 15 A
- Maximum DC inputs: 2
- Maximum efficiency: 99.5%
- MPPT quantity: 1
- Input cable length: 0.1m
- Output cable length: 5.3m+ / 0.1m-
- Connector type: MC4
- Included connectors: 12
- Weight: 1.09 kg
- Phases: 1
Key Features
- Specifically designed to work with SolarEdge commercial inverters
- Dual-panel optimisation supports two high-output or bifacial PV modules, reducing system hardware requirements
- Mitigates all types of module mismatch loss, from manufacturing tolerance to partial shading
- Single-bolt mounting and simplified cable management for faster installations
- Detects abnormal PV connector behaviour, preventing potential safety issues
- Module-level voltage shutdown for installer and firefighter safety
- Compatible with bifacial PV modules
- Superior efficiency of 99.5%
- Flexible system design for maximum space utilisation
System Capabilities
- Allows connection of two high-powered or bifacial panels in series to one power optimiser
- Enables uneven string lengths, longer strings, and mix of panel types and orientations on same string
- Reduces impact of partial shading on array performance
- Compatible with wide range of commercial PV technologies
- Higher operating current capability for increased power handling
Installation Notes
- Designed for commercial PV installations
- Short input cable (0.1m) configuration
- Single-bolt assembly for simplified deployment
- Integrated DC switch: No
- DC fuses: Not included
- Important: The S1200 has a higher operating current. When pairing with an inverter that has built-in 25A fuses, you must replace the fuses with 30A fuses before commissioning. A fuse replacement kit is available (Part number FLD-DCD-SEL1-FUSE). Applicable inverter Part Numbers: SExxK-xxxxIxxCx, SExxK-xxxxIxxDx, SExxK-TWxxIxxLx, SExxK-xxxxIxxZx
About SolarEdge
SolarEdge is a global leader in smart energy technology, focusing on innovation and environmental protection. For over a decade, SolarEdge has revolutionised solar products by changing the way power is harvested and managed in photovoltaic systems, maximising power generation for residential and large-scale PV installations.
About DECO Group
We distribute SolarEdge commercial power optimisers and high-capacity dual-panel electronics to professional installers throughout the UK. Our technical support covers S1200 optimiser integration for commercial installations, including fuse upgrade requirements for higher operating current, bifacial module compatibility, and string configuration design for large-scale systems requiring enhanced power handling and module-level safety features.
