SolarEdge Power Management package <100A grid supply

SolarEdge Power Management Package <100A Grid Supply

This comprehensive power management package provides complete monitoring and export limitation capability for SolarEdge single-phase installations with grid supplies up to 100A. It combines a Modbus energy meter with K2 firmware, 100A split-core current transformer, and RS485 communication cable for full system monitoring and DNO-compliant power export control.

Key Technical Details

• Product: SolarEdge Power Management Package <100A Grid Supply
• Part No: SE-PM-WND-1PH-100A
• Grid supply rating: Up to 100A per phase
• Phase configuration: Single-phase (1PH)
• Voltage: 230/400V
• Total weight: 1.32 kg

Included Components

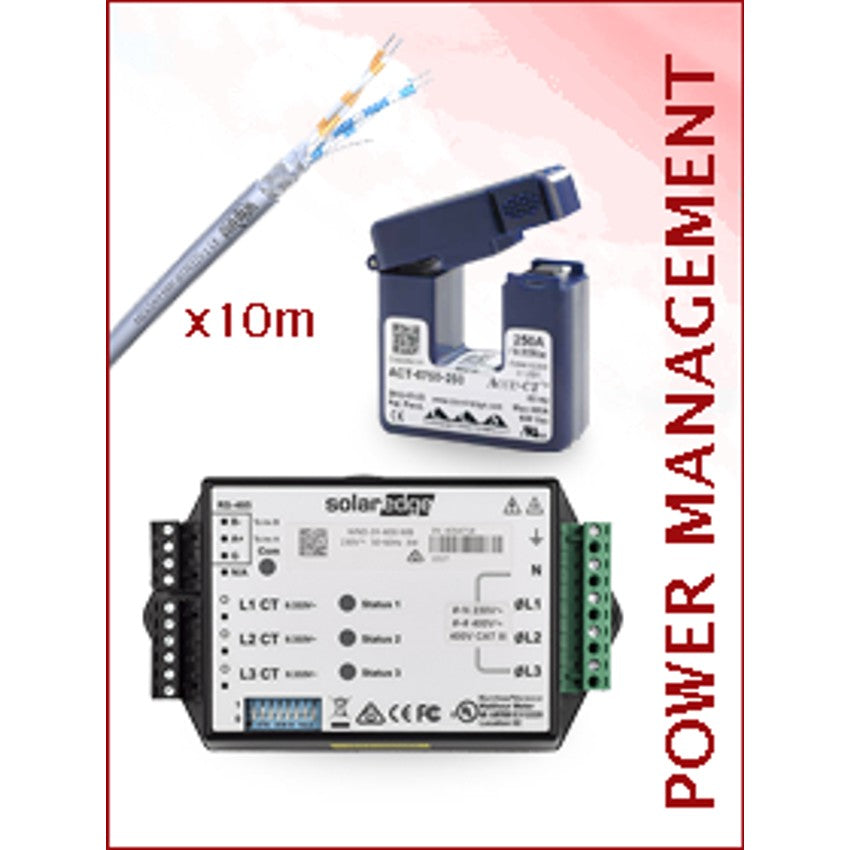

• 1 x SolarEdge 1PH/3PH 230/400V Energy Meter K2 with Modbus Connection (SE-WND-3Y400-MB-K2)
• 1 x 100A Split-Core Current Transformer for SolarEdge Energy Meters with Modbus Connection (SE-CT-SPL-100A-A)
• 10 x Double pair genuine RS485 cable 1M - 4 cores (RS485-DOUBLE-1M)

Key Features

• Complete monitoring package for SolarEdge installations enabling full recording and display of energy generation and usage
• High accuracy meter readings for production and consumption monitoring
• Import/Export meter readings for export limitation functionality
• K2 meter features updated firmware to support CT disconnection required to meet UK G100 Feed In Limitation requirements
• 100A split-core CT offers outstanding accuracy with one-handed operation
• 10m RS485 cable included for connection between inverter and energy meter
• Ensures complete system performs at maximum potential and enables optimisation of energy consumption

System Capabilities

• Subject to DNO approval, enables power export limitation to DNO-specified values
• Automatically trims maximum export power to DNO-defined limit during high generation and low self-consumption periods
• No limitation applied during periods of sufficient self-consumption
• Supports residential, commercial, and utility-size installations
• Compatible with SolarEdge single-phase inverter systems
• Fits in standard electrical panel

Installation Notes

• Package configured for single inverter systems with grid supplies up to 100A per phase
• For systems with multiple inverters, an additional RS-485 expansion kit may be required depending on inverter type
• 10m RS485 cable included - verify this length is sufficient for your installation
• Current clamps should be sized according to incoming grid supply in the property
• 100A CT is a 1:1 replacement for previous 50A and 70A CTs, covering full range from 50A to 100A installations
• Split-core CT for indoor use only
• Other CT capacities available if required
