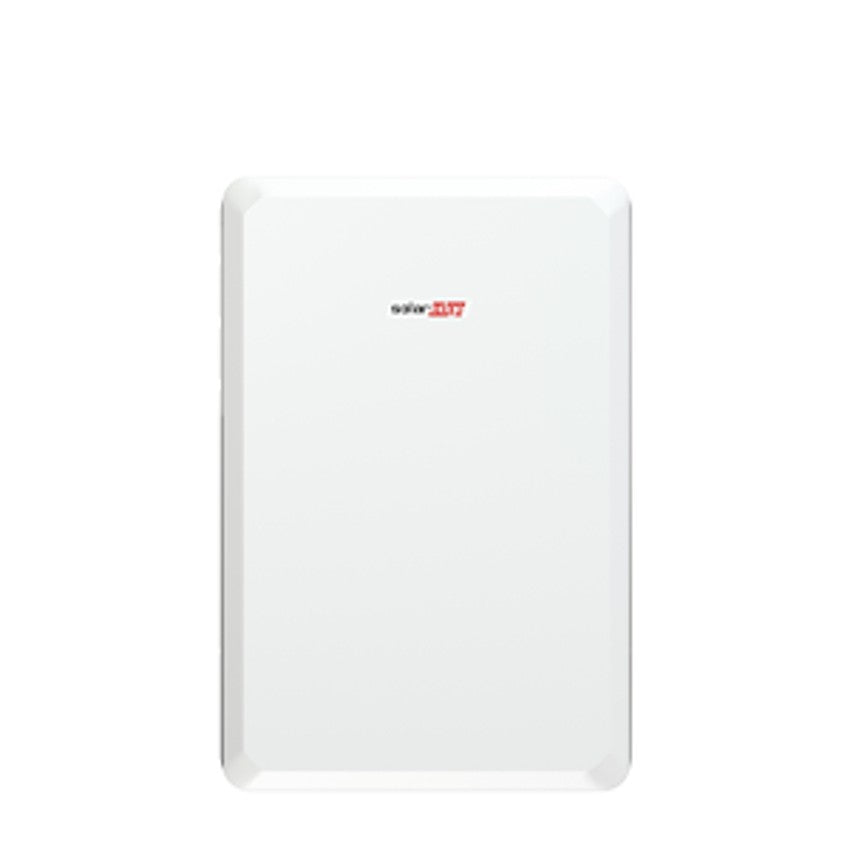

SolarEdge Home Battery - 1PH 400V 9.7kWh Battery v02
The SolarEdge SE-BATTERY02-10KWH is a 9.7kWh single-phase 400V Home Battery featuring advanced NMC Li-ion technology with DC coupling for superior system efficiency. Compatible with all models of SolarEdge single-phase HD-Wave inverters including Home Wave and Home Hub, it integrates seamlessly with the complete SolarEdge residential offering. This Version 2 battery meets the strictest fire safety standards including UL9540A and IEC62619, making it one of the first residential batteries certified to these standards.
Key Technical Details
- Product: SolarEdge Home Battery - 1PH 400V 9.7kWh Battery v02
- Part No: SE-BATTERY02-10KWH
- Supplier Part No: BAT-10K1PS0B-02
- Battery type: Lithium Ion - NMC
- Nominal energy: 9,700 Wh (9.7 kWh)
- Usable energy (100% depth of discharge): 9,700 Wh
- Depth of discharge: 100%
- Voltage: 400 V
- Continuous output power: 5,000 W
- Continuous discharge rate (normal use): 5,000 W
- Maximum discharge rate (5 minutes): 5,000 W
- Surge discharge rate (15 seconds): 7,500 W
- Peak output power in backup (for 10 seconds): 7,500 W
- Maximum charge rate (5 minutes): 5,000 W
- Dimensions (W x H x D): 790 x 1,179 x 250 mm
- Weight: 120 kg (121 kg)
- Warranty: 10 years
Key Features
- Maximised system performance, gaining more energy to store and use for on-grid and backup power applications (backup application requires inverter with backup capability)
- DC-coupled battery featuring superior overall system efficiency (PV > Battery > Grid)
- Scalable solution for increased power and capacity with multiple SolarEdge inverters and batteries
- Support up to 3 batteries per inverter for more power and capacity
- 100% depth of discharge for maximum usable energy
- NMC 9.7kWh / 5kW Li-ion technology
- Monitoring and management available with the SolarEdge app to optimise solar production, consumption and backup power
- Wireless communication to the inverter, reducing wiring, labour and installation faults
- Simple plug and play installation with automatic SetApp-based configuration
- Includes multiple safety features for battery protection
- Certified to UL9540A and IEC62619 EU standards - one of the first residential batteries to meet the strictest fire safety standards
- Improved mechanical design eliminates need for fire extinguisher in package
System Capabilities
- Compatible inverters: All models of SolarEdge single-phase HD-Wave inverters including Home Wave and Home Hub, StorEdge Single Phase Inverter with HD-Wave Technology
- Batteries per inverter: Up to 3 (separate branch connectors may be required)
- Single-phase 400V configuration
- DC coupling for superior overall system efficiency
- Integrates with complete SolarEdge residential offering
- Single point of contact for warranty, support, training, and simplified logistics and operations
- All SolarEdge solutions managed by single app to optimise production, consumption and stored energy
- Wireless communication between SolarEdge inverters and energy banks
Installation Notes
- Single-phase residential installation
- Simple plug and play installation with automatic SetApp-based configuration
- Suitable for floor mounting with IAC-RBAT-FLRSTD-01 Floor Stand Kit
- Suitable for wall mounting
- Reusable maneuvering handles available (IAC-RBAT-HANDLE-01) for convenient transportation
- Branch connectors available (IAC-RBAT-RWYCBL-01) for multiple battery configurations
- Wireless communication reduces wiring, labour and risk of installation faults
- Automatic configuration with pre-defined settings
- Weight: 120-121 kg - ensure adequate floor support or wall mounting capacity
- Important: Installers must be trained and certified in order to install this battery
- Warning: Warranty will be void if installed by non-certified installer
- Installer certification course available in SolarEdge Edge Academy
Related Accessories
- Floor Stand Kit: IAC-RBAT-FLRSTD-01
- Maneuvering Handles: IAC-RBAT-HANDLE-01
- Branch Connectors: IAC-RBAT-RWYCBL-01 (for multiple battery configurations)
Certifications and Compliance
- UL9540A certified for fire safety hazards
- IEC62619 EU certified
- One of the first residential batteries to meet the strictest standards for fire safety
- 10-year warranty
- Improved mechanical design meets enhanced safety standards
