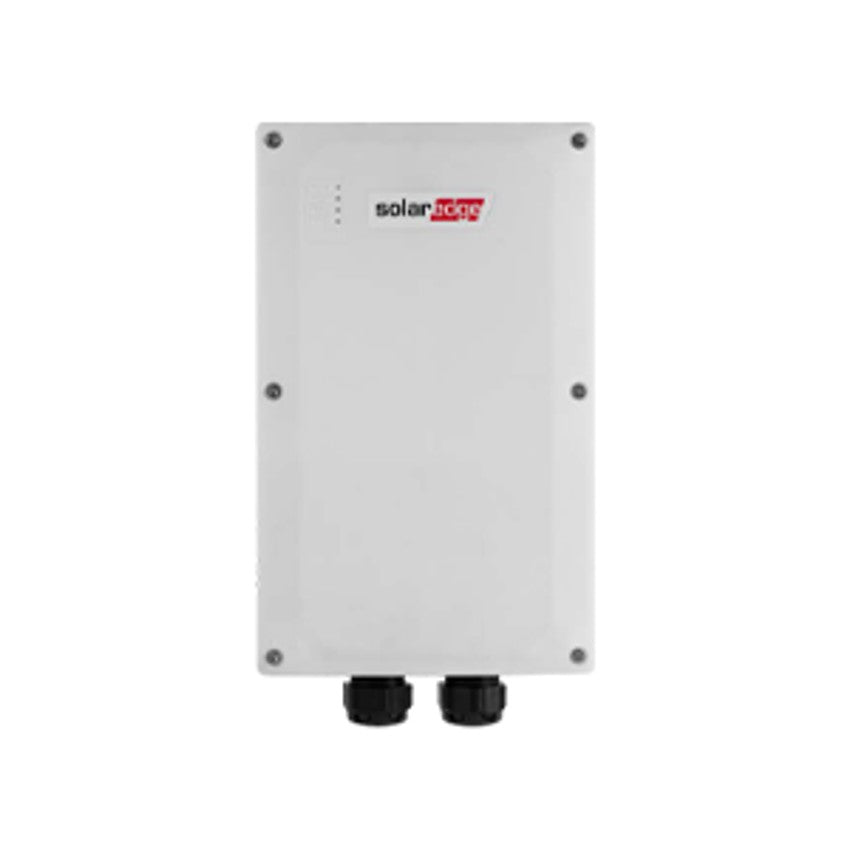

SolarEdge Home Backup Interface - Home Hub Inverter (Three Phase RWB)

The SolarEdge SE-SBI-3PH is a three-phase Home Backup Interface designed for HomeHub installations to provide full or partial home backup power during grid outages. It seamlessly integrates with the SolarEdge Home Hub Inverter to manage and monitor both PV generation and energy storage, while automatically preventing solar power from flowing to the grid during outage events.

Key Technical Details

• Product: SolarEdge Home Backup Interface - Home Hub Inverter (Three Phase RWB)
• Part No: SE-SBI-3PH
• Supplier Part No: BI-NEUNU-3P-01
• Maximum DC power: 4,000 W
• Maximum AC power (5 minutes): 5,250 W
• Surge AC power (1 second): 10,000 W
• Maximum input voltage: 145 V
• Minimum MPPT voltage: 60 V
• Maximum MPPT voltage: 115 V
• DC startup voltage: 60 V
• DC shutdown voltage: 60 V
• Maximum DC current: 60 A
• Maximum DC inputs: 1
• MPPT quantity: 1
• Euro efficiency: 93%
• Connector type: Screw Terminal
• Included connectors: 1
• Transformer: None
• Integrated DC switch: No
• Weight: 33 kg
• Phase configuration: Three-phase (RWB)
• Warranty: 3 years (12-year warranty extends to metering solution)

Key Features

• Automatically provides backup power to home loads during grid interruption
• Enables full or partial home backup when grid is down
• Automatically prevents solar power from continuing to flow to the grid during outages
• Seamlessly integrates with SolarEdge Home Hub Inverter
• Pre-fitted metering solution reduces wiring, labour, and installation faults
• Full flexibility in which loads to backup - entire home or selected loads
• Scalable solution to support higher power and higher capacity
• Homeowners can decide which household loads to backup and in what preferential order
• Manages and monitors both PV generation and energy storage
• 12-year warranty included as standard, extending to metering solution

System Capabilities

• Compatible with SolarEdge Home Hub Inverter (Three Phase RWB)
• Provides backup power to essential appliances and devices during grid outages
• Supports preferential load management for optimised backup power distribution
• Integrates with SolarEdge Home Smart Energy Devices (pending firmware support)
• Scalable for higher power and capacity requirements

Installation Notes

• Designed for three-phase HomeHub installations
• Pre-fitted metering solution for faster installation
• Easy integration with SolarEdge Home Hub Inverter
• Reduces wiring requirements and installation complexity
• Scalable configuration supports full home or selected load backup
• DC fuses: Not included
• Compact design for simplified installation
