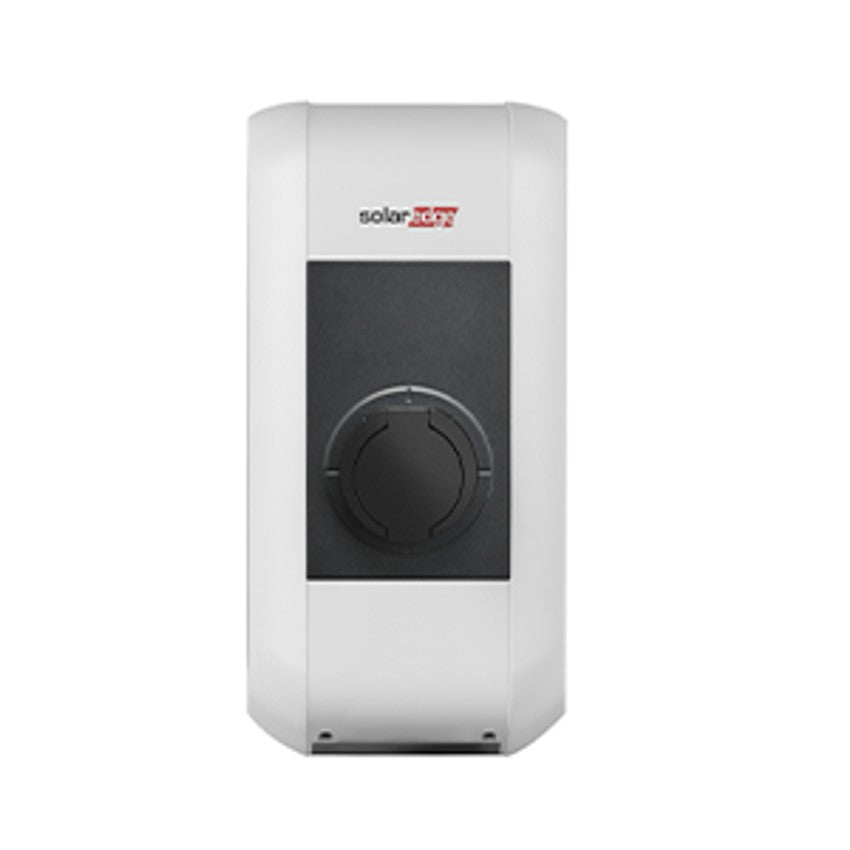

SolarEdge EV Charger 22kW 3PH, Socket Type 2, RFID, MID, UK

The SolarEdge SE-EVK22URM-01 is a 22kW three-phase EV charger designed to integrate seamlessly into the SolarEdge ecosystem. It enables EV charging from renewable energy using excess solar power, with smart charging capabilities including custom scheduling for automatic charging during low-rate periods, all monitored and controlled from a single app, with optional RFID card authentication and MID meter.

Key Technical Details

• Product: SolarEdge EV Charger 22kW 3PH, Socket Type 2, RFID, MID, UK
• Part No: SE-EVK22URM-01
• Supplier Part No: SE-EVK22URM-01
• Power output: 22 kW
• Phase configuration: Three-phase (3PH)
• Connection type: Type 2 socket (European-wide, universal socket)
• Weight: 7.8 kg
• Certification: UKCA marking
• Warranty: 3 years

Key Features

• Enables EV charging from 100% renewable energy, using excess solar power
• Integrates seamlessly into the SolarEdge ecosystem with monitoring and control of PV and EV from a single app (mySolarEdge)
• Enables smart charging with custom scheduling feature, allowing automatic charging during low-rate periods
• Optional RFID card authentication and MID meter (available only in this three-phase model)
• G100 Issue 2 Amendment 2 compliant (pending 4.20 firmware upgrade)
• Tamper protection - designed to detect and alert of tamper attempts
• Seamlessly integrates with SolarEdge Home smart energy ecosystem
• Includes cable holder (installation optional)

System Capabilities

• Designed to work with three-phase systems (up to 22kW)
• Complete PV/EV charging solution integrated with SolarEdge Home ecosystem
• Increases self-consumption by utilising self-generated solar energy for EV charging
• Enables homeowners to control and optimise all household energy including EV charging from single app
• Smart charging capabilities for cost optimisation during low utility rate periods
• Provides convenience of quick charging from home with cleaner, cheaper, renewable energy
• RFID card authentication for secure access control
• MID meter for accurate energy measurement

Installation Notes

• Designed for three-phase system installations
• Cable holder included but installation is optional
• Important: This product does NOT come with an EV charger cable
• WARNING: Compliance with G100 Issue 2 Amendment 2 is only supported via Ethernet on the SolarEdge EV Charger
• Must be connected to the same router as the SolarEdge Inverter for G100 compliance
• G100 compliance pending 4.20 firmware upgrade
• Product can be used in Europe, but only has UKCA marking
• Single source for products, warranty, support, training and system management

Certifications and Compliance

• G100 Issue 2 Amendment 2 compliant (with firmware 4.20 upgrade and Ethernet connection)
• UKCA marking
