SolarEdge Commercial Gateway

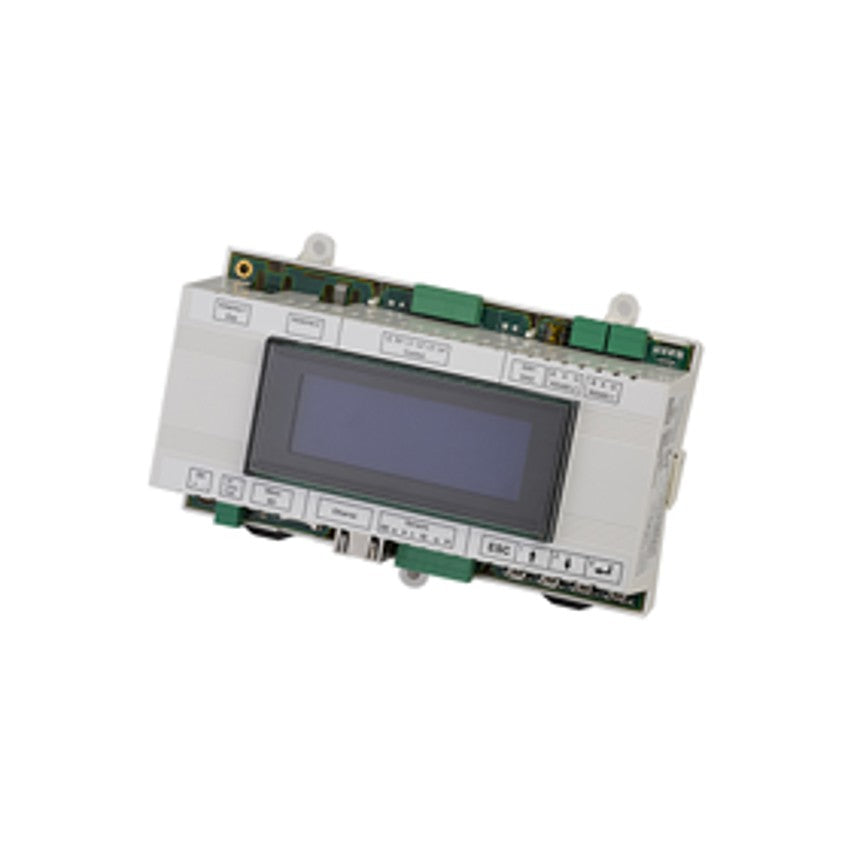

The SolarEdge SE1000-CCG-G-S1 Commercial Gateway is an all-in-one communication gateway designed to expand monitoring and control capabilities for commercial solar installations. It provides connectivity for SolarEdge and non-SolarEdge inverters, environmental sensors, and meters, transferring monitoring data to the SolarEdge monitoring server with optional third-party logger support.

Key Technical Details

• Product: SolarEdge Commercial Gateway
• Part No: SE1000-CCG-G-S1
• Supplier Part No: SE1000-CCG-G-S1
• Weight: 0.76 kg

Key Features

• All-in-one communication gateway for commercial installations
• Wireless connections including optional WiFi, ZigBee and GSM plug-ins
• RS485 to Ethernet converter
• Environmental sensors support including temperature, irradiance and wind
• Power reduction interface complies with EEG & BDEW standards
• Revenue grade electricity meter reader
• Non-SolarEdge inverter data logger capability
• Easy installation with DIN rail and wall mount options
• Real-time monitoring of solar panels, inverters, and batteries
• Remote troubleshooting and alerts for quick issue resolution

System Capabilities

• Connects to SolarEdge and non-SolarEdge inverters
• Compatible with SolarEdge inverters and batteries
• Supports variety of environmental sensors
• Transfers monitoring data to SolarEdge monitoring server
• Optional data transfer to non-SolarEdge logger
• Interface for controlling SolarEdge inverter power
• Enables comprehensive site monitoring and performance tracking

Installation Notes

• DIN rail and wall mount installation options
• Supports optional wireless plug-ins for WiFi, ZigBee, and GSM connectivity
• Acts as RS485 to Ethernet converter
• Important: The Commercial Gateway cannot be used as a leader device in order to comply with the new PSTI 2022 regulation
