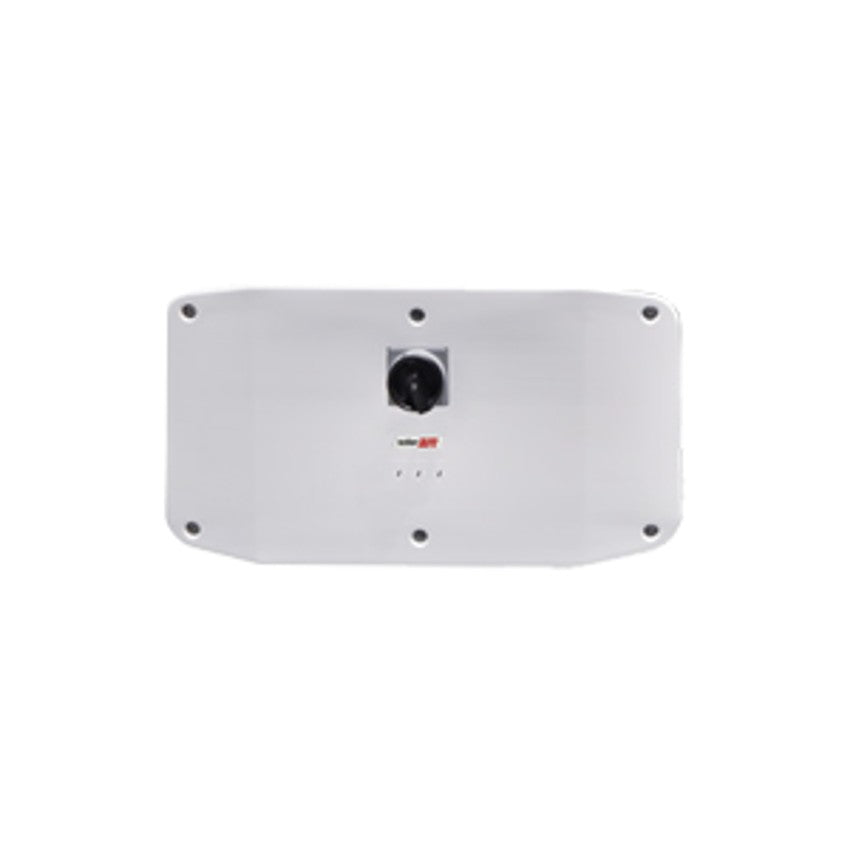

SolarEdge 90kW Synergy Manager SWITCH with DC Switch, MC4, DC SPD
The SolarEdge SE-90000-MNGR-S is a 90kW Synergy Manager designed as the central communication and connection hub for SolarEdge Synergy inverter systems. It contains the communication board, AC and DC connections with integrated DC switch, MC4 connectors, and DC SPD, eliminating the need to open inverter units during installation while supporting reduced balance of system costs through pre-commissioning features and modular design for enhanced reliability.
Key Technical Details
- Product: SolarEdge 90kW Synergy Manager SWITCH with DC Switch, MC4, DC SPD
- Part No: SE-90000-MNGR-S
- Supplier Part No: SE90K-RW00IBNQ4
- Rated power: 90,000 W
- Maximum DC power: 45,000 W
- Maximum AC power (5 minutes): 90,000 W
- Surge AC power (1 second): 90,000 W
- Maximum input voltage: 1,000 V
- Maximum DC current: 43.5 A
- Maximum DC inputs: 9
- Euro efficiency: 98%
- Connector type: MC4
- Included connectors: 18
- Transformer: None (transformerless)
- Integrated DC switch: Yes
- Dimensions (H x W x D): 360 x 560 x 295mm
- Weight: 18 kg (114 kg total system)
- Standard warranty: 12 years
Key Features
- 90kW rated power with 98% Euro efficiency for maximum energy production
- Modular design with independent Synergy Units for higher uptime and easier servicing
- Built-in PID mitigation to maximise system performance
- Contains communication board, AC and DC connection - no need to open inverter units during installation
- Reduced balance of system costs with support for single DC input and cost-effective aluminium cables
- Separation of AC and DC connections for enhanced safety and installation flexibility
- Integrated DC switch for safe system isolation
- MC4 connectors for standardised PV connections
- Integrated DC surge protection device (SPD)
- Lightweight, modular design enables simple 2-person installation
- Integrated thermal sensors detect faulty wiring for enhanced protection
- Built-in arc fault protection with optional rapid shutdown
- Monitored, field-replaceable surge protection devices (Type 2 DC SPDs included, optional Type 2 AC SPD)
System Capabilities
- Pre-commissioning feature for automated system validation before grid connection
- Plug-and-play wiring and smart monitoring for faster commissioning
- Supports single DC input configuration
- Enables aluminium cable usage for cost reduction
- Central hub for Synergy inverter system communication and power management
- Powered by unique pre-commissioning process for rapid system installation
- Enhanced thermal monitoring for improved safety and reliability
- Designed for large-scale commercial and industrial solar PV systems
Installation Notes
- Warning: SolarEdge Synergy Manager cannot be used on its own - it always requires Synergy Units to work
- Requires 2x Synergy Units for 50kW and 66.6kW systems
- Requires 3x Synergy Units for 90kW and 100kW systems
- Integrated DC safety switch removes need for external DC isolators
- Eliminates need to open inverter units during installation
- Separation of AC and DC connections simplifies installation process
- 2-person installation capability due to lightweight modular design
- Fast serviceability for maximum uptime
- Extended warranty option available: 20-year extension
