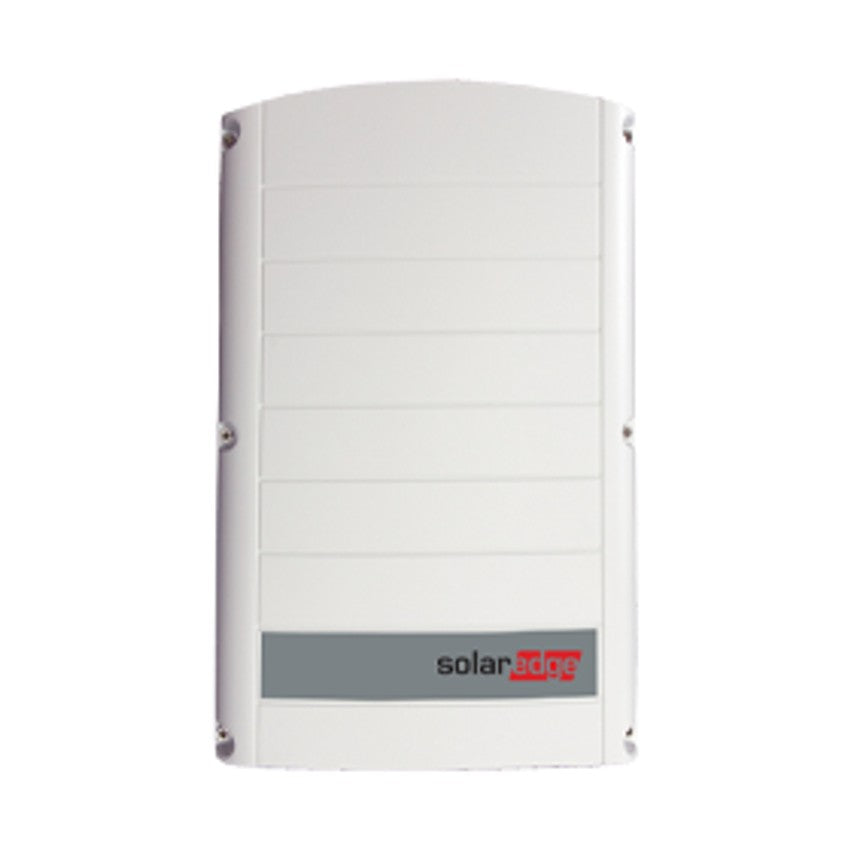

SolarEdge 9000W Home Wave Inverter - Three Phase

SolarEdge 9,000W Home Wave Inverter - Three Phase

The SolarEdge SE-9000-3PH-NET is a 9kW three-phase Home Wave Inverter specifically designed to work with SolarEdge power optimisers. It features built-in module-level monitoring, extremely quiet operation with no external fan, and quick commissioning via the SolarEdge SetApp, combining sophisticated digital control technology with efficient power conversion architecture for superior solar power harvesting.

Key Technical Details

• Product: SolarEdge 9,000W Home Wave Inverter - Three Phase
• Part No: SE-9000-3PH-NET
• Supplier Part No: SE9K-RW0TEBEN4
• Rated power: 9,000 W
• Rated AC power output: 9000 VA
• Maximum DC power (Module STC): 13,500 W
• Maximum continuous output current (per phase): 14.5 A
• Maximum DC current: 15 A
• Maximum input voltage: 900 V
• AC frequency: 50/60 ± 5% Hz
• Maximum efficiency: 98%
• Dimensions (H x W x D): 540 x 315 x 191 mm
• Weight: 16.4 kg
• IP rating: IP65
• Number of phases: 3
• Communication: Ethernet, RS485, (WiFi, ZigBee, cellular optional)
• Standard warranty: 12 years

Key Features

• Specifically designed to work with SolarEdge power optimisers
• Low noise levels - no external fan for extremely quiet operation
• Small, lightweight and easy to install
• Quick and easy commissioning from smartphone via the SolarEdge SetApp
• Built-in module-level monitoring
• IP65 rated - suitable for outdoor and indoor installations
• Fixed voltage inverter for longer strings
• Smart Energy Management control
• Advanced safety features - integrated arc fault protection and SafeDC
• Fixed-voltage technology ensures optimal input voltage operation
• Proprietary data monitoring receiver integrated into inverter

System Capabilities

• Oversizing up to 135% possible
• Combines sophisticated digital control technology with efficient power conversion architecture
• Aggregates power optimiser performance data from each PV module
• Data transmission to web via SolarEdge Monitoring Portal for performance analysis, fault detection and troubleshooting
• Export limitations possible using meter
• Fixed-voltage technology ensures inverter operates at optimal input voltage regardless of module count or environmental conditions

Installation Notes

• Three-phase residential and commercial installation
• Commissioned via SolarEdge SetApp mobile application (no display on inverter)
• Compact and lightweight design for easy installation
• Suitable for both outdoor and indoor mounting
• Mounting bracket provided
• Requires suitable SolarEdge power optimiser for operation
• IP65 rating suitable for outdoor and indoor installation
• Extended warranty options available: 20-year and 25-year extensions
