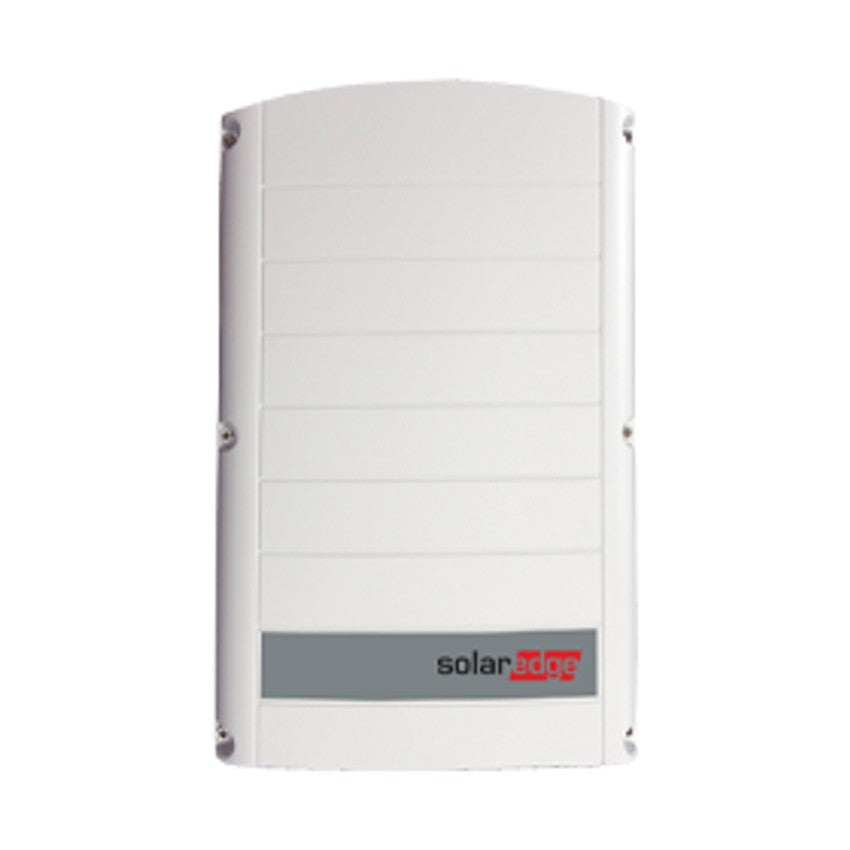

SolarEdge 8000W Home Wave Inverter - Three Phase

SolarEdge 8,000W Home Wave Inverter - Three Phase

The SolarEdge SE-8000-3PH-NET is an 8kW three-phase Home Wave Inverter with SetApp functionality. It combines sophisticated digital control technology with efficient power conversion architecture to achieve superior solar power harvesting and best-in-class reliability, featuring fixed-voltage technology that ensures optimal input voltage operation regardless of module count or environmental conditions.

Key Technical Details

• Product: SolarEdge 8,000W Home Wave Inverter - Three Phase
• Part No: SE-8000-3PH-NET
• Supplier Part No: SE8K-RW0TEBEN4
• Rated power: 8,000 W
• Rated AC power output: 8000 VA
• Maximum DC power: 10,800 W
• Maximum DC power (Module STC): 12,000 W
• Maximum AC power (5 minutes): 7,000 W
• Surge AC power (1 second): 7,000 W
• Maximum continuous output current (per phase): 13 A
• AC frequency: 50/60 ± 5% Hz
• Maximum input voltage: 900 V
• Minimum MPPT voltage: 750 V
• Maximum MPPT voltage: 900 V
• Maximum DC current: 13.5 A
• Maximum DC inputs: 2
• Maximum efficiency: 98%
• Euro efficiency: 97.4%
• Connector type: MC4
• Included connectors: 4
• Transformer: None
• Integrated DC switch: Yes
• Dimensions (H x W x D): 540 x 315 x 191 mm
• Weight: 16.4 kg
• IP rating: IP65
• Number of phases: 3
• Communication: Ethernet, RS485, (WiFi, ZigBee, cellular optional)
• Standard warranty: 12 years

Key Features

• Specifically designed to work with SolarEdge power optimisers
• Low noise levels - no external fan for extremely quiet operation
• Small, lightweight and easy to install
• Quick and easy commissioning from smartphone via the SolarEdge SetApp
• Built-in module-level monitoring
• IP65 rated - suitable for outdoor and indoor installations
• Fixed voltage inverter for longer strings
• Smart Energy Management control
• Advanced safety features - integrated arc fault protection and SafeDC
• Combines sophisticated digital control technology with efficient power conversion architecture
• Fixed-voltage technology ensures optimal input voltage operation
• Proprietary data monitoring receiver integrated into inverter

System Capabilities

• Oversizing up to 135% possible
• Superior solar power harvesting with best-in-class reliability
• Aggregates power optimiser performance data from each PV module
• Data transmission to web via SolarEdge Monitoring Portal for performance analysis, fault detection and troubleshooting
• Export limitations possible using meter
• Fixed-voltage technology ensures inverter operates at optimal input voltage regardless of module count or environmental conditions
• Tested and certified according to G98 or G99 with most recent firmware version

Installation Notes

• Three-phase residential and commercial installation
• Important: This inverter has no trackers and requires power optimisers to function
• No display - commissioned via SolarEdge SetApp mobile application
• UK only: Tested and certified according to G98 or G99, but only with most recent firmware version
• Important: Please update inverter firmware during SetApp phone app commissioning process as per Installation Manual
• New communication board version requires setup and commissioning via SolarEdge SetApp mobile application
• Mounting bracket provided
• Integrated DC switch included
• DC fuses: Not included
• IP65 rating suitable for outdoor and indoor installation
• Requires suitable SolarEdge power optimiser for operation
• Extended warranty options available: 20-year and 25-year extensions
