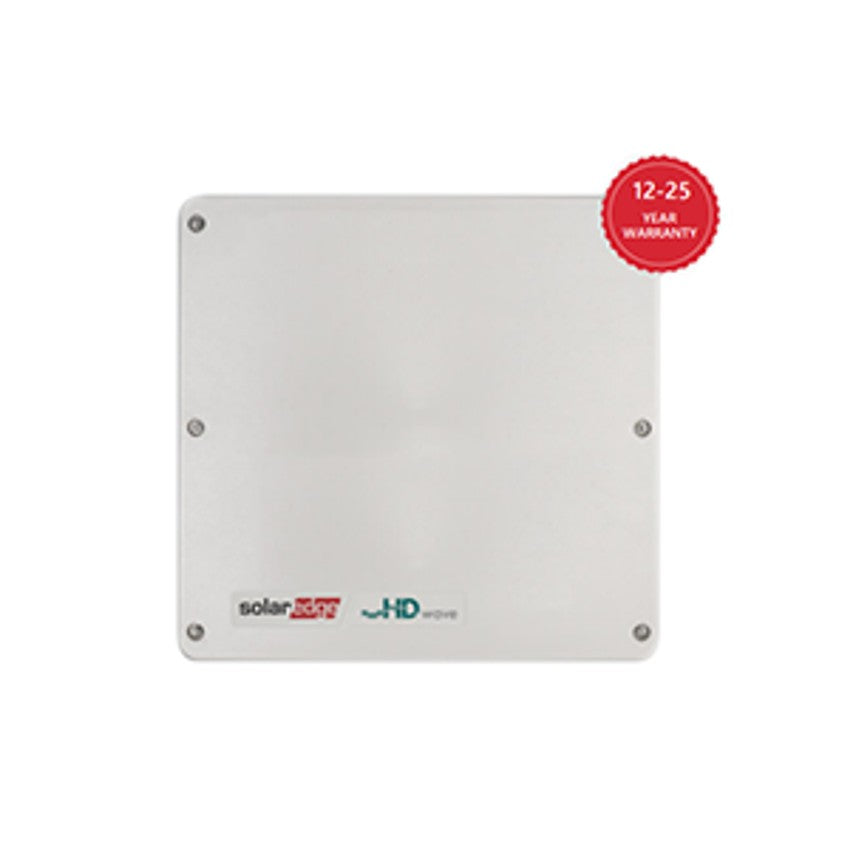

SolarEdge 8,000W Home Wave Inverter - Single Phase

The SolarEdge SE-8000H-NET is a single-phase Home Wave Inverter featuring HD-Wave technology for optimised residential solar installations. Specifically designed to work with SolarEdge power optimisers, it delivers industry-leading efficiency of 99% with 200% DC oversizing capability and seamless wireless connectivity via the optional SolarEdge Home Network platform. This 8kW model is now compatible with the SolarEdge Energy Bank battery.

Key Technical Details

• Product: SolarEdge 8,000W Home Wave Inverter - Single Phase
• Part No: SE-8000H-NET
• Supplier Part No: SE8000H-RW000BEN4
• Rated power: 8,000 W
• Maximum DC power: 16,000 W
• Maximum AC power (5 minutes): 8,000 W
• Surge AC power (1 second): 8,000 W
• Maximum current: 36.5 A
• Maximum input voltage: 480 V
• Maximum DC current: 20.5 A
• Maximum DC inputs: 3
• Maximum efficiency: 99.2%
• Euro efficiency: 99%
• Connector type: MC4
• Included connectors: 6
• Transformer: None
• Integrated DC switch: Yes
• Dimensions: 360 x 370 x 185 mm
• Weight: 16.5 kg
• IP rating: IP65
• Number of phases: 1
• Communication: Ethernet, RS485, (WiFi, ZigBee, cellular optional)
• Standard warranty: 12 years

Key Features

• Optimised installation with award-winning HD-Wave technology
• Specifically designed to work with SolarEdge power optimisers
• Quick and easy inverter commissioning directly from a smartphone using the SolarEdge SetApp
• Industry-leading efficiency with 200% DC oversizing capability
• Seamless wireless connectivity with system devices such as the SolarEdge Home Battery via optional SolarEdge Home Network platform
• Extremely compact, lightweight and easy to install
• Built-in module-level monitoring
• Suitable for outdoor and indoor installation
• Fixed voltage inverter for longer strings
• Uses smaller, lighter and more reliable thin film capacitors
• Extra plug-in slot for both E-NET card and ZigBee/GSM card
• Compatible with SolarEdge Energy Bank battery

System Capabilities

• Compatible with residential solar energy systems
• Works seamlessly with SolarEdge monitoring platforms
• Network-ready for integration with SolarEdge Home ecosystem
• Supports 200% DC oversizing for maximum power output
• Oversizing up to 155% possible
• Module-level monitoring for enhanced system performance tracking
• Export limitations possible using meter
• HD-Wave technology enables DC to AC inversion without heavy metal components
• Optional SolarEdge Network Plug-In available (ENET-HBNP-01)
• Now compatible with SolarEdge Energy Bank battery

Installation Notes

• Single-phase residential installation
• Commissioned via SolarEdge SetApp mobile application (no display on inverter)
• Compact and lightweight design for easy installation
• Suitable for both outdoor and indoor mounting
• Integrated DC switch included
• DC fuses: Not included
• Requires SolarEdge power optimisers for operation
• IP65 rating suitable for outdoor and indoor installation
• Extended warranty options available: 20-year and 25-year extensions

About SolarEdge

SolarEdge is a global leader in smart energy technology, focusing on innovation and environmental protection. For over a decade, SolarEdge has revolutionised solar products by changing the way power is harvested and managed in photovoltaic systems, maximising power generation for residential and large-scale PV installations.

About DECO Group

We distribute SolarEdge Home Wave inverters and power optimiser systems to professional installers throughout the UK. Our technical support covers single-phase residential installations with award-winning HD-Wave technology, including SetApp commissioning, Home Network integration for wireless connectivity with SolarEdge Home Battery and Energy Bank systems, and module-level monitoring configuration for optimised energy production with 200% DC oversizing capability in 8kW residential solar installations.
