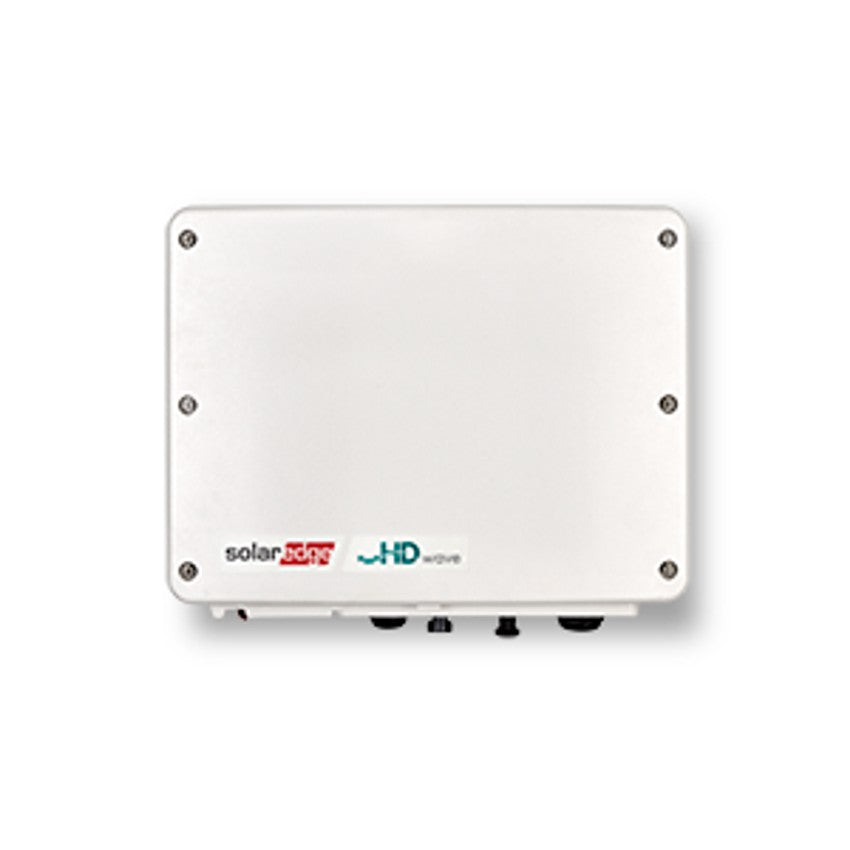

SolarEdge 6,000W Home Wave Inverter - Single Phase

The SolarEdge SE-6000H-NET is a single-phase Home Wave Inverter featuring HD-Wave technology for optimised residential solar installations. Specifically designed to work with SolarEdge power optimisers, it delivers industry-leading efficiency of 99% with 200% DC oversizing capability and seamless wireless connectivity via the optional SolarEdge Home Network platform.

Key Technical Details

• Product: SolarEdge 6,000W Home Wave Inverter - Single Phase
• Part No: SE-6000H-NET
• Supplier Part No: SE6000H-RW000BEN4
• Rated power: 6,000 W
• Maximum DC power: 12,000 W
• Maximum AC power (5 minutes): 6,000 W
• Surge AC power (1 second): 6,000 W
• Maximum continuous output current: 27.5 A
• AC output voltage range: 184 - 264.5 Vac
• Maximum input voltage: 480 V
• Maximum DC current: 16.5 A
• Maximum DC inputs: 2
• Maximum efficiency: 99.2%
• Euro efficiency: 99%
• Connector type: MC4
• Included connectors: 4
• Transformer: None
• Integrated DC switch: Yes
• Dimensions: 280 x 370 x 142 mm
• Weight: 12.2 kg (10.6 kg)
• IP rating: IP65
• Number of phases: 1
• Communication: Ethernet, RS485, (WiFi, ZigBee, cellular optional)
• Standard warranty: 12 years

Key Features

• Optimised installation with award-winning HD-Wave technology
• Specifically designed to work with SolarEdge power optimisers
• Quick and easy inverter commissioning directly from a smartphone using the SolarEdge SetApp
• Industry-leading efficiency with 200% DC oversizing capability
• Seamless wireless connectivity with system devices such as the SolarEdge Home Battery via optional SolarEdge Home Network platform
• Exceptionally compact, lightweight and easy to install
• Built-in module-level monitoring for enhanced performance oversight
• Suitable for outdoor and indoor installation
• Fixed voltage inverter for longer strings
• Advanced safety features - integrated arc fault protection and SafeDC
• Uses smaller, lighter and more reliable thin film capacitors
• Extra plug-in slot for both E-NET card and ZigBee/GSM card

System Capabilities

• Compatible with residential solar energy systems
• Works seamlessly with SolarEdge monitoring platforms
• Network-ready for integration with SolarEdge Home ecosystem
• Supports 200% DC oversizing for maximum power output
• Module-level monitoring for enhanced system performance tracking
• Export limitations possible using meter
• HD-Wave technology enables DC to AC inversion without heavy metal components
• Optional SolarEdge Network Plug-In available (ENET-HBNP-01)

Installation Notes

• Single-phase residential installation
• Commissioned via SolarEdge SetApp mobile application (no display on inverter)
• Compact and lightweight design for easy installation
• Suitable for both outdoor and indoor mounting
• Integrated DC switch included
• DC fuses: Not included
• Requires SolarEdge power optimisers for operation
• IP65 rating suitable for outdoor and indoor installation
• Extended warranty options available: 20-year and 25-year extensions
