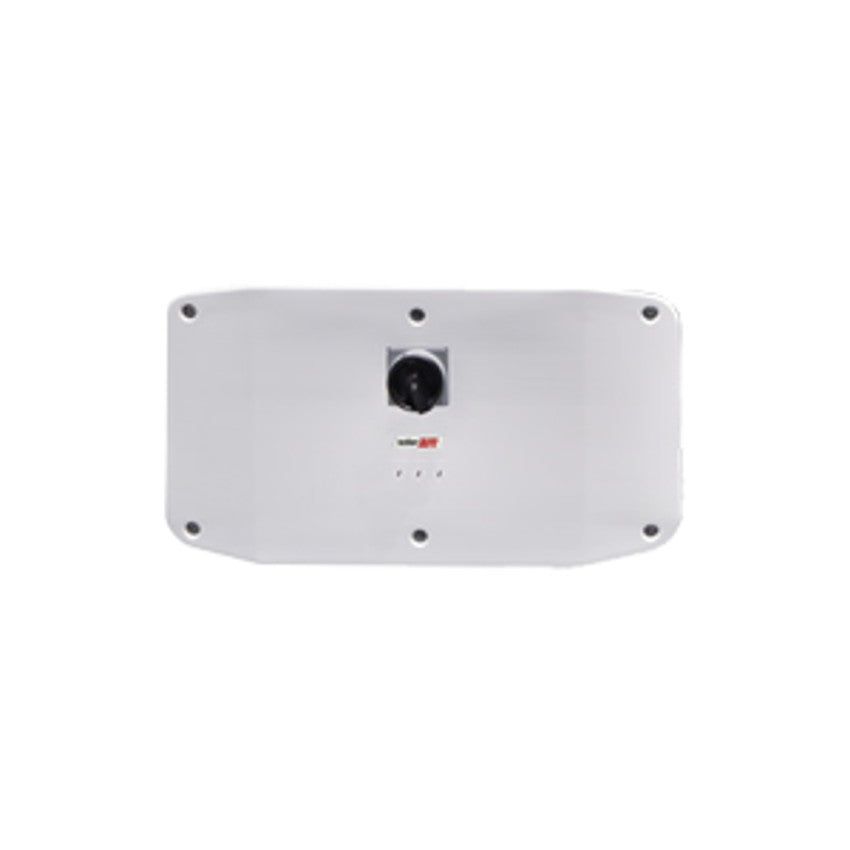

SolarEdge 50kW Synergy Manager SWITCH with DC Switch, MC4, DC SPD

The SolarEdge SE-50000-MNGR-S is a 50kW Synergy Manager designed as the central communication and connection hub for SolarEdge Synergy inverter systems. It contains the communication board, AC and DC connections with integrated DC switch, MC4 connectors, and DC SPD, eliminating the need to open inverter units during installation while supporting reduced balance of system costs through pre-commissioning features.

Key Technical Details

• Product: SolarEdge 50kW Synergy Manager SWITCH with DC Switch, MC4, DC SPD
• Part No: SE-50000-MNGR-S
• Supplier Part No: SE50K-RW00IBNQ4
• Rated power: 50,000 W
• Dimensions (H x W x D): 360 x 560 x 295mm
• Weight: 18 kg
• Fuse rating: 30A
• Standard warranty: 12 years

Key Features

• Contains communication board, AC and DC connection - no need to open inverter units during installation
• Reduced balance of system costs with support for single DC input and cost-effective aluminium cables
• Separation of AC and DC connections for enhanced safety and installation flexibility
• Integrated DC switch for safe system isolation
• MC4 connectors for standardised PV connections
• Integrated DC surge protection device (SPD)
• Rapid system installation thanks to pre-commissioning feature
• Lightweight, modular design enables simple 2-person installation
• Built-in thermal sensors detect faulty wiring, ensuring enhanced protection and safety
• Simple, modular and lightweight design perfect for commercial and industrial applications

System Capabilities

• Compatible with S1200 power optimisers (30A fuse configuration)
• Supports single DC input configuration
• Enables aluminium cable usage for cost reduction
• Central hub for Synergy inverter system communication and power management
• Powered by unique pre-commissioning process for rapid system installation
• Low operation and maintenance requirements

Installation Notes

• Warning: SolarEdge Synergy Manager cannot be used on its own - it always requires Synergy Units to work
• Requires 2x Synergy Units for 50kW and 66.6kW systems
• Requires 3x Synergy Units for 90kW and 100kW systems
• Eliminates need to open inverter units during installation
• Separation of AC and DC connections simplifies installation process
• 2-person installation capability due to lightweight modular design
• Extended warranty option available: 20-year extension
