SolarEdge 50kW Synergy Manager SWITCH DC Switch, MC4, DC SPD - Complete System

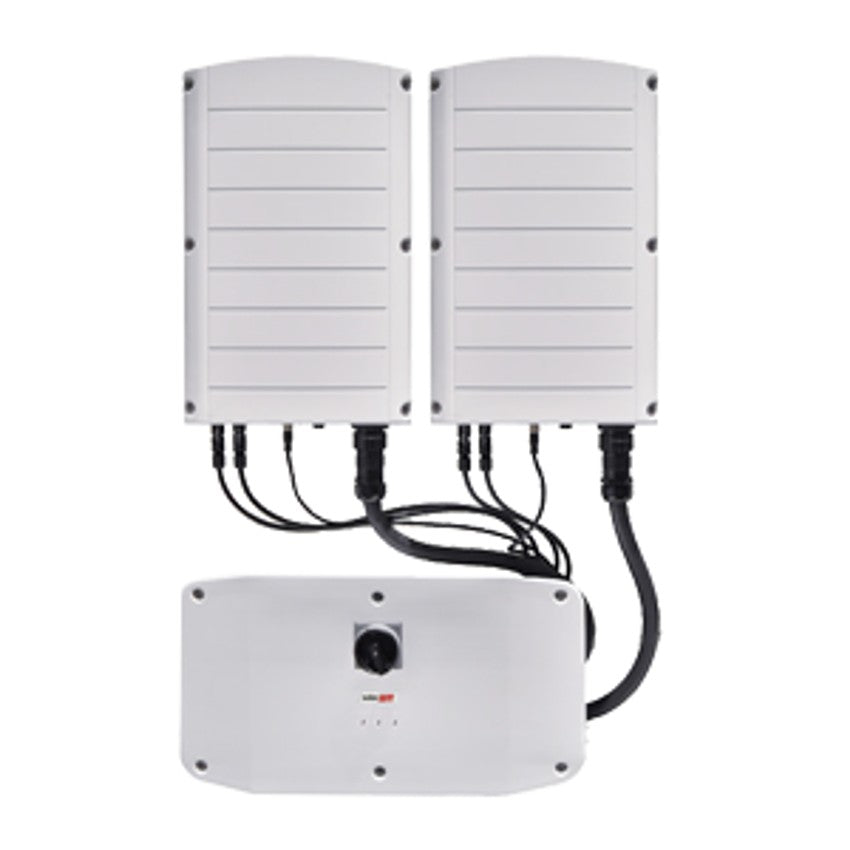

The SolarEdge SE-50000-SWITCH-FULL is a complete 50kW three-phase Synergy inverter system comprising one Synergy Manager SWITCH with integrated DC switch and two Synergy Secondary Units with Rapid Shutdown Device. Powered by unique pre-commissioning technology for automated system validation and rapid installation, this modular solution features independent Synergy Unit operation for higher uptime, easy 2-person installation, integrated DC safety switch eliminating external DC isolators, and comprehensive built-in protection including thermal sensors, arc fault protection, and PID mitigation for maximised system performance.

Key Technical Details - Complete System

• Product: SolarEdge 50kW Synergy Manager SWITCH DC Switch, MC4, DC SPD - Complete System
• Part No: SE-50000-SWITCH-FULL
• Rated power: 50,000 W
• Maximum AC power (5 minutes): 49,990 W
• Surge AC power (1 second): 49,990 W
• Maximum input voltage: 1,000 V
• Maximum DC current: 72.5 A
• DC fuses: 12
• Euro efficiency: 98%
• Connector type: MC4
• Included connectors: 12
• Transformer: None
• Integrated DC switch: Yes
• Total system weight: 82 kg
• Number of phases: 3
• Standard warranty: 12 years

Included Components

• 1 x SolarEdge 50kW Synergy Manager SWITCH with DC Switch, MC4, DC SPD (SE-50000-MNGR-S) - 18 kg
• 2 x SolarEdge Synergy Secondary Unit with Rapid Shutdown Device (SE-SYNERGY-RSD) - 32 kg each

Synergy Manager SWITCH (SE-50000-MNGR-S) - Technical Details

• Part No: SE-50000-MNGR-S
• Supplier Part No: SE50K-RW00IBNQ4
• Configuration: DC Switch, MC4, DC SPD
• Contains communication board, AC and DC connection
• Integrated DC safety switch
• Dimensions (H x W x D): 360 x 560 x 295mm
• Weight: 18 kg
• Rated power: 50,000 W
• 30A fuse configuration

Synergy Manager SWITCH - Key Features

• Central communication and connection hub for Synergy inverter system
• Integrated DC safety switch eliminates need for external DC isolators
• No need to open inverter units during installation
• Reduced balance of system costs with support for single DC input and cost-effective aluminium cables
• Separation of AC and DC connections for enhanced safety
• MC4 connectors for standardised PV connections
• Integrated DC surge protection device (SPD)
• Rapid system installation thanks to pre-commissioning feature
• Lightweight, modular design enables simple 2-person installation
• Built-in thermal sensors detect faulty wiring
• Compatible with S1200 power optimisers (30A fuse configuration)
• Connection point for AC and DC connections and holds all protection devices
• Perfect for commercial and industrial applications with low operation and maintenance requirements

Synergy Secondary Unit with RSD (SE-SYNERGY-RSD) - Technical Details

• Part No: SE-SYNERGY-RSD
• Supplier Part No: SESUK-RWR0INNN4
• Quantity in bundle: 2 units
• Maximum DC power per unit: 67,500 W
• Maximum AC power (5 minutes): 49,990 W
• Surge AC power (1 second): 49,990 W
• Maximum input voltage: 1,000 V
• Maximum DC current: 74 A
• Maximum DC inputs: 6
• DC fuses: 12
• Euro efficiency: 98%
• Connector type: MC4
• Included connectors: 12
• Transformer: None
• Integrated DC switch: Yes
• Dimensions (H x W x D): 558 x 328 x 273mm
• Weight per unit: 32 kg
• Number of phases: 3
• Warranty: 12 years

Synergy Secondary Units - Key Features

• Includes RSD (Rapid Shutdown Device) with automatic rapid shutdown upon AC grid disconnect
• Three-phase inverter unit with Synergy technology
• Rapid system installation thanks to pre-commissioning feature
• Lightweight, modular design enables simple 2-person installation
• Built-in thermal sensors detect faulty wiring, ensuring enhanced protection and safety
• Integrated DC switch for safe system isolation
• Independent operation enables higher uptime and easy serviceability
• Must be paired with Synergy Manager to function

Complete System Features

• Pre-commissioning feature for automated validation of system components and wiring during site installation process and prior to grid connection
• Easy 2-person installation with lightweight, modular design
• Independent operation of each Synergy Unit enables higher uptime and easy serviceability
• Built-in thermal sensors detect faulty wiring ensuring enhanced protection and safety
• Built-in arc fault protection and rapid shutdown capability
• Built-in PID mitigation for maximised system performance
• Monitored and field-replaceable surge protection devices: integrated RS485 and Type 2 DC SPDs, optional Type 2 AC SPD
• Integrated DC safety switch eliminates need for external DC isolators
• Complete system: 1x Synergy Manager SWITCH and 2x Synergy Units for 50kW configuration
• Simple, modular and lightweight inverter perfect for commercial and industrial applications
• Packs useful safety and reliability features into small footprint
• Ensures low operation and maintenance for installers and peace of mind for customers

System Capabilities

• 50kW rated power with 98% Euro efficiency
• Modular design with independent Synergy Units for higher uptime and easier servicing
• Supports single DC input configuration
• Enables aluminium cable usage for cost reduction
• Central hub for Synergy inverter system communication and power management
• Powered by unique pre-commissioning process for rapid system installation
• Enhanced thermal monitoring for improved safety and reliability
• Designed for large-scale commercial and industrial solar PV systems
• Compatible with S1200 power optimisers with 30A fuse configuration
• Integrated DC safety switch eliminates external DC isolator requirements

Installation Notes

• Complete system includes 1 x Synergy Manager SWITCH and 2 x Synergy Units
• Warning: SolarEdge Synergy Manager cannot be used on its own - it always requires Synergy Units to work
• Warning: SolarEdge Synergy Units cannot be used on their own - they always require a Synergy Manager to work
• Configuration: 2x Synergy Units required for 50kW and 66.6kW systems, 3x for 90kW and 100kW systems
• Lightweight modular design enables 2-person installation
• Pre-commissioning process enables rapid system installation with automated validation
• Integrated DC switch on Synergy Manager eliminates need for external DC isolators
• Integrated DC switch on each Synergy Unit
• 12 DC fuses included per Synergy Unit
• Built-in thermal sensors for faulty wiring detection
• Rapid Shutdown Device included on Synergy Units for automatic shutdown upon AC grid disconnect
• Synergy Manager SWITCH configuration: DC Switch, MC4, DC SPD
• 30A fuse configuration compatible with S1200 power optimisers
• Extended warranty option available: 20-year extension
