Key Information

Contains communication board, AC and DC connection: no need to open the inverter units during installation.
Reduced BoS with support for single DC input and cost-effective aluminium cables
Separation of AC and DC connections
Dimensions of Synergy Manager (H x W x D): 360 x 560 x 295mm
Weight of Synergy Manager: 18kg
Compatible with S1200 Optimisers

View more information

SolarEdge

50kW Synergy Manager FUSE DC Switch, MC4, DC SPD, 30A Fuses

Regular price £383.75

Regular price Sale price £383.75

Unit price / per

Sale

Excl. VAT

Shipping calculated at checkout.

Product variants

Quantity (0 in cart)

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

Link

View full details

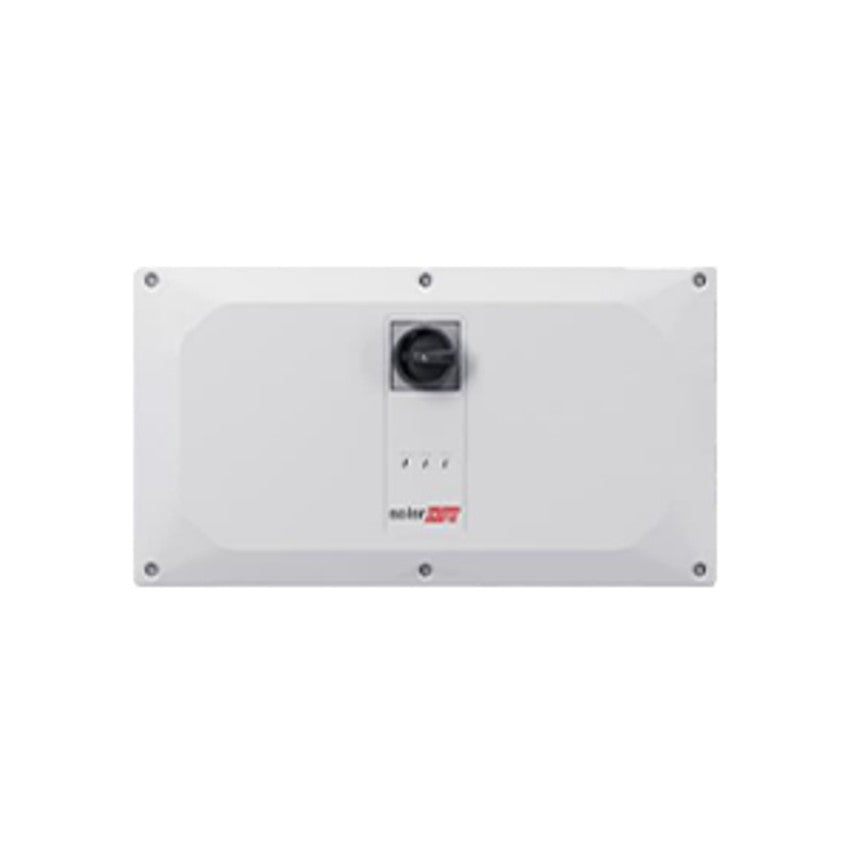

SolarEdge 50kW Synergy Manager FUSE DC Switch, MC4, DC SPD, 30A Fuses

The SolarEdge SE50K-RW00IBNE4 is a 50kW Synergy Manager designed as the central communication and connection hub for SolarEdge Synergy inverter systems. It contains the communication board, AC and DC connections with integrated DC switch, MC4 connectors, DC SPD, and 30A fuses, eliminating the need to open inverter units during installation while supporting reduced balance of system costs.

Key Technical Details

Product: SolarEdge 50kW Synergy Manager FUSE DC Switch, MC4, DC SPD, 30A Fuses
Part No: SE50K-RW00IBNE4
Supplier Part No: SE50K-RW00IBNE4
Rated power: 50,000 W
Dimensions (H x W x D): 360 x 560 x 295mm
Weight: 18 kg
Fuse rating: 30A
Standard warranty: 12 years

Key Features

Contains communication board, AC and DC connection - no need to open inverter units during installation
Reduced balance of system costs with support for single DC input and cost-effective aluminium cables
Separation of AC and DC connections for enhanced safety and installation flexibility
Integrated DC switch for safe system isolation
MC4 connectors for standardised PV connections
Integrated DC surge protection device (SPD)
30A fuses included for circuit protection

System Capabilities

Compatible with S1200 power optimisers
Supports single DC input configuration
Enables aluminium cable usage for cost reduction
Central hub for Synergy inverter system communication and power management

Installation Notes

Warning: SolarEdge Synergy Manager cannot be used on its own - it always requires Synergy Units to work
Requires 2x Synergy Units for 50kW and 66.6kW systems
Requires 3x Synergy Units for 90kW and 100kW systems
Important: 30A fuse is NOT compatible with S1400 Optimisers. The Neutral link upgrade fuse replacement (SE-FLD-3PH-NEUTRAL-LINK) is required for this inverter to be compatible with S1400 Optimisers
Eliminates need to open inverter units during installation
Separation of AC and DC connections simplifies installation process
Extended warranty option available: 20-year extension

About SolarEdge

SolarEdge is a global leader in smart energy technology, focusing on innovation and environmental protection. For over a decade, SolarEdge has revolutionised solar products by changing the way power is harvested and managed in photovoltaic systems, maximising power generation for residential and large-scale PV installations.

About DECO Group

We distribute SolarEdge Synergy Manager systems and commercial inverter solutions to professional installers throughout the UK. Our technical support covers Synergy Manager installation with integrated DC switch, MC4 connectors, and DC SPD, including Synergy Unit configuration for 50kW to 100kW systems, S1200 optimiser compatibility, aluminium cable integration for reduced balance of system costs, and fuse upgrade requirements for S1400 optimiser compatibility in large-scale commercial installations.
