SolarEdge 50kW Synergy Manager BASE No DC Switch, MC4, DC SPD - Complete System

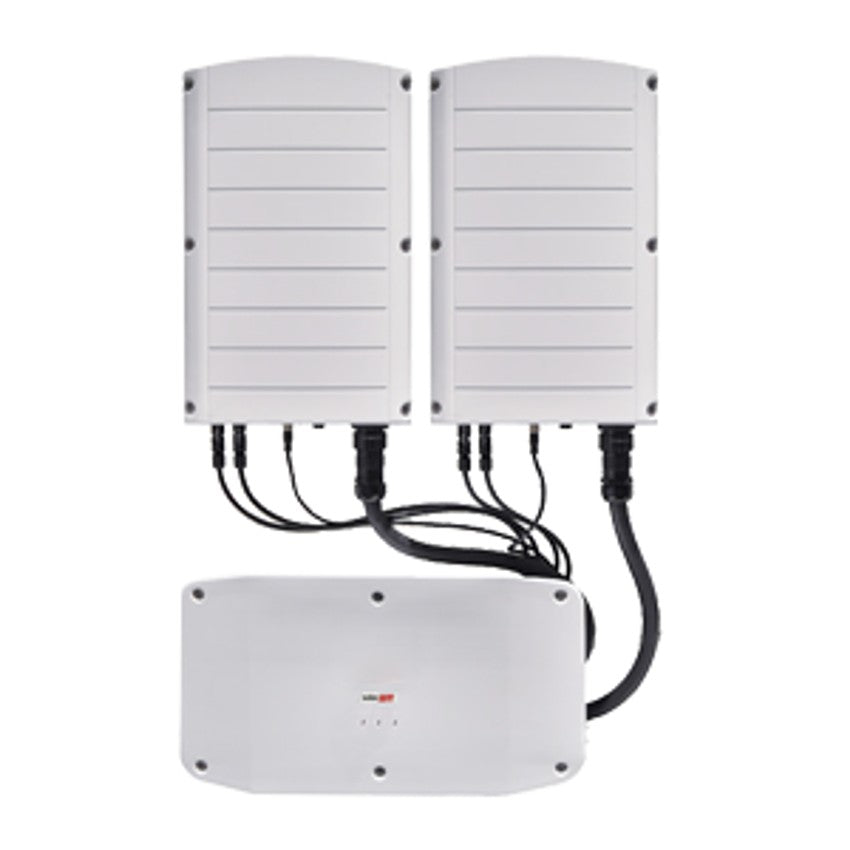

The SolarEdge SE-50000-BASE-FULL is a complete 50kW three-phase Synergy inverter system comprising one Synergy Manager and two Synergy Secondary Units with Rapid Shutdown Device. Powered by unique pre-commissioning technology for automated system validation and rapid installation, this modular solution features independent Synergy Unit operation for higher uptime, easy 2-person installation, and comprehensive built-in protection including thermal sensors, arc fault protection, and PID mitigation for maximised system performance.
Key Technical Details - Complete System
- Product: SolarEdge 50kW Synergy Manager BASE No DC Switch, MC4, DC SPD - Complete System
- Part No: SE-50000-BASE-FULL
- Rated power: 50,000 W
- Maximum DC power: 75,000 W
- Maximum AC power (5 minutes): 49,990 W
- Surge AC power (1 second): 49,990 W
- Maximum input voltage: 1,000 V
- Maximum DC current: 74 A
- Maximum DC inputs: 6
- DC fuses: 12
- Euro efficiency: 98%
- Connector type: MC4
- Included connectors: 12
- Transformer: None
- Integrated DC switch: Yes (on Synergy Units)
- Total system weight: 82 kg
- Number of phases: 3
- Standard warranty: 12 years
Included Components
- 1 x SolarEdge 50kW Synergy Manager BASE (SE-50000-MNGR-B) - 18 kg
- 2 x SolarEdge Synergy Secondary Unit with Rapid Shutdown Device (SE-SYNERGY-RSD) - 32 kg each
Synergy Manager BASE (SE-50000-MNGR-B) - Technical Details
- Part No: SE-50000-MNGR-B
- Supplier Part No: SE50K-RW00IBNM4
- Configuration: No DC Switch, MC4, DC SPD
- Contains communication board, AC and DC connection
- Dimensions (H x W x D): 360 x 560 x 295mm
- Weight: 18 kg
- Rated power: 50,000 W
Synergy Manager BASE - Key Features
- Central communication and connection hub for Synergy inverter system
- No need to open inverter units during installation
- Reduced balance of system costs with support for single DC input and cost-effective aluminium cables
- Separation of AC and DC connections for enhanced safety
- MC4 connectors for standardised PV connections
- Integrated DC surge protection device (SPD)
- Rapid system installation thanks to pre-commissioning feature
- Lightweight, modular design enables simple 2-person installation
- Built-in thermal sensors detect faulty wiring
Synergy Secondary Unit with RSD (SE-SYNERGY-RSD) - Technical Details
- Part No: SE-SYNERGY-RSD
- Supplier Part No: SESUK-RWR0INNN4
- Quantity in bundle: 2 units
- Maximum DC power per unit: 67,500 W
- Maximum AC power (5 minutes): 49,990 W
- Surge AC power (1 second): 49,990 W
- Maximum input voltage: 1,000 V
- Maximum DC current: 74 A
- Maximum DC inputs: 6
- DC fuses: 12
- Euro efficiency: 98%
- Connector type: MC4
- Included connectors: 12
- Transformer: None
- Integrated DC switch: Yes
- Dimensions (H x W x D): 558 x 328 x 273mm
- Weight per unit: 32 kg
- Number of phases: 3
- Warranty: 12 years
Synergy Secondary Units - Key Features
- Includes RSD (Rapid Shutdown Device) with automatic rapid shutdown upon AC grid disconnect
- Three-phase inverter unit with Synergy technology
- Rapid system installation thanks to pre-commissioning feature
- Lightweight, modular design enables simple 2-person installation
- Built-in thermal sensors detect faulty wiring, ensuring enhanced protection and safety
- Integrated DC switch for safe system isolation
- Independent operation enables higher uptime and easy serviceability
- Must be paired with Synergy Manager to function
Complete System Features
- Pre-commissioning feature for automated validation of system components and wiring during site installation process and prior to grid connection
- Easy 2-person installation with lightweight, modular design
- Independent operation of each Synergy Unit enables higher uptime and easy serviceability
- Built-in thermal sensors detect faulty wiring ensuring enhanced protection and safety
- Built-in arc fault protection and rapid shutdown capability
- Built-in PID mitigation for maximised system performance
- Monitored and field-replaceable surge protection devices: integrated RS485 and Type 2 DC SPDs, optional Type 2 AC SPD
- Complete system: 1x Synergy Manager and 2x Synergy Units for 50kW configuration
System Capabilities
- 50kW rated power with 98% Euro efficiency
- Modular design with independent Synergy Units for higher uptime and easier servicing
- Supports single DC input configuration
- Enables aluminium cable usage for cost reduction
- Central hub for Synergy inverter system communication and power management
- Powered by unique pre-commissioning process for rapid system installation
- Enhanced thermal monitoring for improved safety and reliability
- Designed for large-scale commercial and industrial solar PV systems
Installation Notes
- Complete system includes 1 x Synergy Manager and 2 x Synergy Units
- Warning: SolarEdge Synergy Manager cannot be used on its own - it always requires Synergy Units to work
- Warning: SolarEdge Synergy Units cannot be used on their own - they always require a Synergy Manager to work
- Configuration: 2x Synergy Units required for 50kW and 66.6kW systems
- Lightweight modular design enables 2-person installation
- Pre-commissioning process enables rapid system installation with automated validation
- Integrated DC switch on Synergy Units
- 12 DC fuses included per Synergy Unit
- Built-in thermal sensors for faulty wiring detection
- Rapid Shutdown Device included on Synergy Units for automatic shutdown upon AC grid disconnect
- Synergy Manager BASE configuration: No DC Switch, MC4, DC SPD
- Extended warranty option available: 20-year extension
