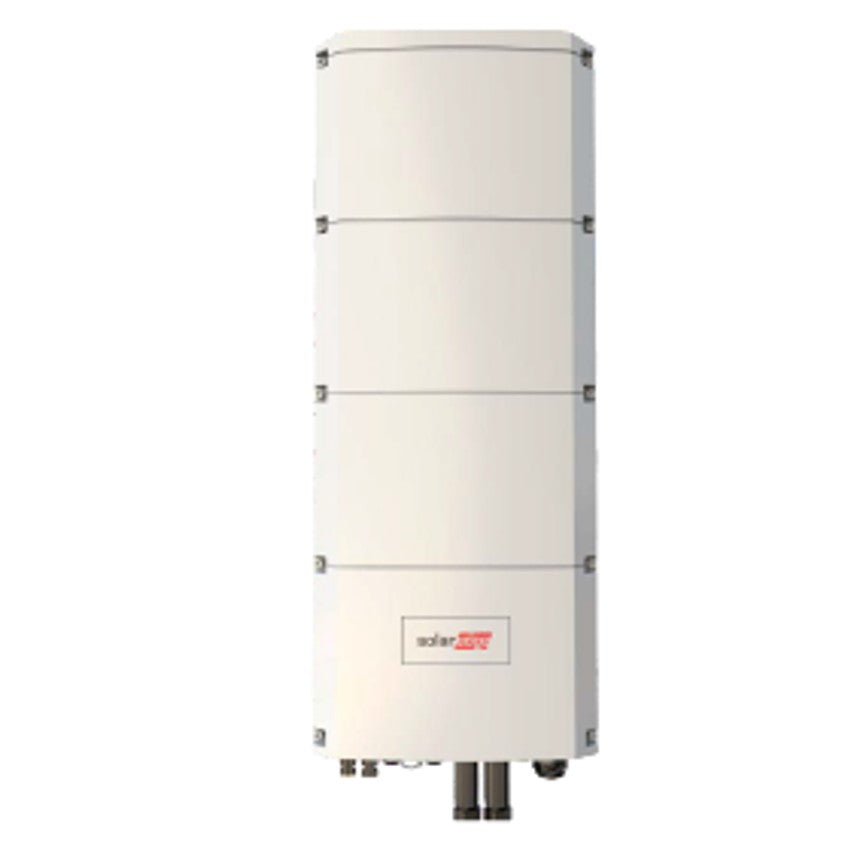

SolarEdge 5,000W Home Hub Inverter Three Phase with Backup Potential

The SolarEdge SE-5000-3PH-RWB is a 5kW three-phase hybrid inverter designed for storage and backup applications. It manages PV production, battery storage, and backup operation during power outages, featuring DC-coupled architecture that stores PV power directly to the battery without AC conversion losses for enhanced efficiency.

Key Technical Details

• Product: SolarEdge 5,000W Home Hub Inverter Three Phase with Backup Potential
• Part No: SE-5000-3PH-RWB
• Supplier Part No: SE5K-RWB48BFN4
• Rated power: 5,000 W
• Rated AC power output (Total/Per phase): 5000/1667 VA
• Maximum DC power (Module STC): 10,000 W
• Maximum AC power (5 minutes): 4,500 W
• Surge AC power (1 second): 5,000 W
• Maximum backup power output: 4,500 VA
• Maximum current (per phase): 8 A
• Maximum backup current (per phase): 7.2 A
• Maximum input voltage: 900 V
• Nominal DC input voltage: 750 V
• Minimum MPPT voltage: 750 V
• Maximum MPPT voltage: 900 V
• AC output voltage range (Line to Neutral): 184 - 264.5 Vac
• AC frequency range: 50/60 ± 5 Hz
• Maximum DC current: 13.3 A
• Maximum input current: 13.3 A
• Maximum DC inputs: 2
• MPPT quantity: 2
• Peak inverter efficiency: 98%
• Euro efficiency: 97.3%
• Connector type: MC4
• Included connectors: 4
• Transformer: None
• Integrated DC switch: Yes
• Dimensions (H x W x D): 907 x 317 x 192 mm
• Weight: 37 kg
• Protection rating: IP65 (outdoor and indoor)
• Number of phases: 3
• Auto switchover time: <10s
• Supported communications: WiFi & Cellular
• Standard warranty: 12 years

Key Features

• Simple installation with single inverter for managing both PV production and battery storage
• Designed to eliminate high voltage during installation, maintenance or firefighting for enhanced safety
• More energy using DC-coupled solution architecture that stores PV power directly to the battery without AC conversion losses
• Built-in module-level monitoring and full visibility of battery status, PV production, and self-consumption data
• Quick and easy inverter commissioning directly from a smartphone using the SolarEdge SetApp
• Can be installed alongside SolarEdge power optimisers, batteries, backup applications
• Range of safety features built-in to protect solar installations - reduces risks associated with electrocution and fire
• Fixed-voltage technology ensures inverter operates at optimal input voltage regardless of module count or environmental conditions
• Proprietary data monitoring receiver integrated into inverter

System Capabilities

• Supported battery types: SolarEdge Home Battery BAT-05K48 (1 - 5 battery modules)
• Maximum charge/discharge power: 5,000 W
• Battery input voltage range: 40-62 V
• Maximum continuous battery current: 125 A
• Battery communication: CAN
• Backup capability requires SolarEdge Backup Interface (SE-SBI-3PH)
• Integration with complete SolarEdge Home ecosystem
• Data transmission to SolarEdge Monitoring Portal for performance analysis, fault detection and troubleshooting

Installation Notes

• Three-phase PV hybrid inverter with backup battery feature
• Ideal solution for three-phase installations with SolarEdge Low Voltage 48V Li-Ion batteries
• Requires SolarEdge Backup Interface (SE-SBI-3PH) for backup function to work
• The 3PH Home Hub inverters MUST have the energy meter (SE-WND-3Y400-MB-K2) installed with 3 x SolarEdge CT clamps
• Suitable power optimiser required for this inverter
• Mounting brackets provided
• IP65 rating suitable for outdoor and indoor installation
• DC fuses: Not included
• Backup applications subject to local regulations and require connection with SolarEdge Home Batteries and SolarEdge Home Backup Interface
