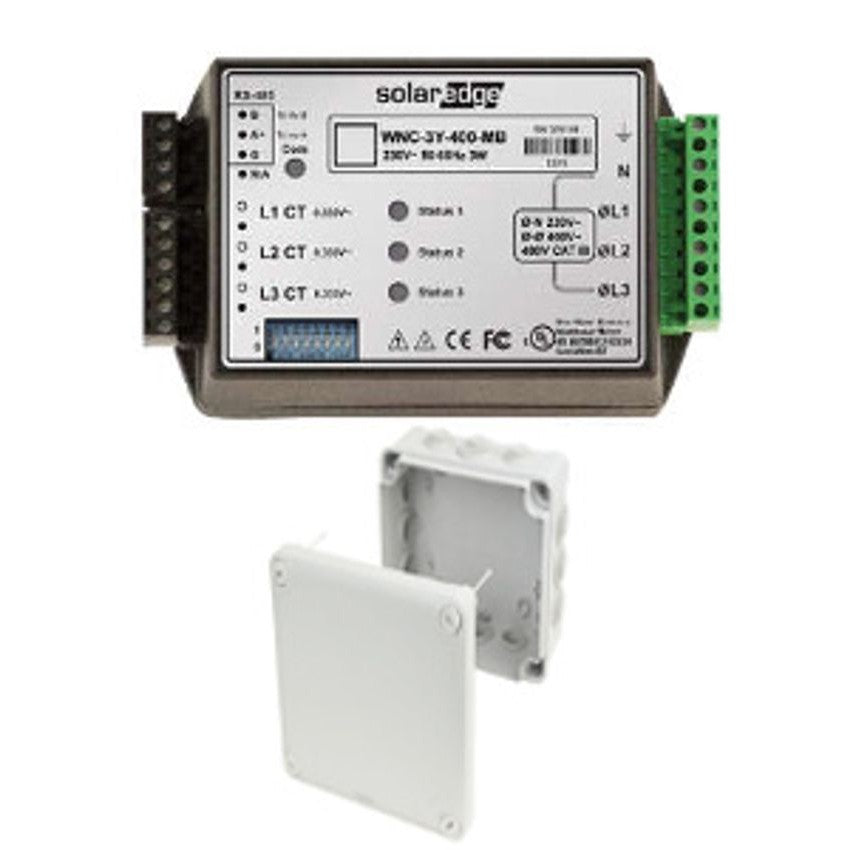

SolarEdge 1PH/3PH 230/400V Modbus Meter K2 with Enclosure

This bundle combines the SolarEdge SE-WND-3Y400-MB-K2 Modbus energy meter with a Gewiss IP56-rated PVC adaptable enclosure. It provides a complete metering solution for accurate production and consumption monitoring in SolarEdge installations, with the K2 meter featuring updated firmware to support UK G100 Feed In Limitation requirements.

Key Technical Details

• Product: SolarEdge 1PH/3PH 230/400V Modbus Meter K2 with Enclosure
• Part No: SE-WND-3Y-400-MB-K2-ENC
• Voltage: 230/400V
• Phase configuration: Single-phase and three-phase compatible
• Connection: Modbus
• Enclosure IP rating: IP56
• Enclosure dimensions (external): 200mm x 154mm x 79mm
• Enclosure dimensions (internal): 190mm x 140mm x 70mm
• Total weight: 0.78 kg

Included Components

• 1 x SolarEdge 1PH/3PH 230/400V Energy Meter K2 with Modbus Connection (SE-WND-3Y400-MB-K2)
• 1 x Gewiss 200mm x 154mm x 79mm PVC Adaptable Box Grey IP56 (GW44207)

Key Features

• High accuracy meter readings for production and consumption monitoring
• Import/Export meter readings for export limitation functionality
• Updated K2 firmware supports CT disconnection required to meet UK G100 Feed In Limitation requirements
• IP56-rated watertight enclosure suitable for surface mounting
• Enclosure features smooth side walls and screw-on flat lid
• Halogen-free enclosure material
• Provides real-time data access for informed energy management decisions

System Capabilities

• Supports residential, commercial, and utility-size installations
• Compatible with SolarEdge inverters and monitoring platforms
• Enables accurate tracking of solar panel performance and energy production optimisation
• Facilitates export limitation functionality for grid compliance
• Modbus connection enables comprehensive system monitoring and control
• Enclosure provides environmental protection for meter installation

Installation Notes

• Complete metering solution with protective enclosure included
• Requires current transformers (CTs) to function
• Select appropriate current capacity CTs from Modbus range for complete installation
• K2 version features updated firmware for UK G100 Feed In Limitation compliance
• IP56-rated enclosure suitable for surface mounting applications
• Recommended hole size for enclosure: Ø37mm
• Easy integration with SolarEdge monitoring software
