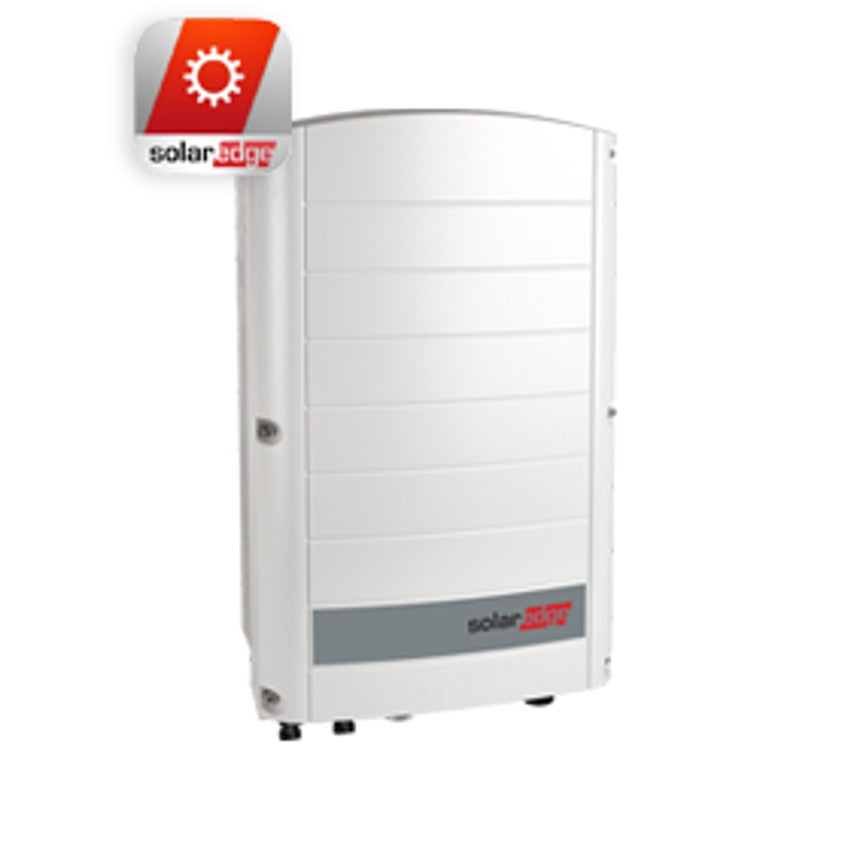

SolarEdge 17,000W Three Phase Inverter NO DISPLAY

SolarEdge 17,000W Three Phase Inverter NO DISPLAY

The SolarEdge SE-17000-APP is a 17kW three-phase inverter with SetApp functionality specifically designed to work with SolarEdge power optimisers. It combines sophisticated digital control technology with efficient power conversion architecture to achieve superior solar power harvesting and best-in-class reliability, featuring fixed-voltage technology that ensures optimal input voltage operation regardless of module count or environmental conditions.

Key Technical Details

• Product: SolarEdge 17,000W Three Phase Inverter NO DISPLAY
• Part No: SE-17000-APP
• Supplier Part No: SE17K-RW0T0BNN4
• Rated power: 17,000 W
• Rated AC active power output: 17,000 W
• Maximum DC power: 22,950 W
• Maximum DC power (Module STC): 22,950 W
• Maximum AC power (5 minutes): 17,000 W
• Surge AC power (1 second): 17,000 W
• Maximum current (per phase): 26 A
• Maximum input voltage: 1,000 V
• Minimum MPPT voltage: 750 V
• Maximum MPPT voltage: 1,000 V
• Maximum DC current: 23 A
• Maximum DC inputs: 2
• Maximum inverter efficiency: 98%
• Euro efficiency: 97.7%
• System efficiency: 98.3%
• Connector type: MC4
• Included connectors: 0
• Transformer: None
• Integrated DC switch: Yes
• Dimensions (H x W x D): 549 x 317 x 264 mm (540 x 315 x 260mm)
• Weight: 37 kg (30.7 kg, 33.2 kg)
• IP rating: IP65
• Number of phases: 3
• Communication: Ethernet, RS485, (WiFi, ZigBee, cellular all optional)
• Standard warranty: 12 years

Key Features

• Specifically designed to work with SolarEdge power optimisers
• Quick and simple commissioning on a smartphone via SolarEdge SetApp
• Compact, lightweight and easy to install
• Built-in module-level monitoring
• IP65 rated - suitable for outdoor and indoor installation
• Smart Energy Management control
• Internet connection through Ethernet or wireless
• Advanced safety features - integrated arc fault protection and SafeDC
• Combines sophisticated digital control technology with efficient power conversion architecture
• Fixed-voltage technology ensures optimal input voltage operation
• Proprietary data monitoring receiver integrated into inverter

System Capabilities

• Superior solar power harvesting with best-in-class reliability
• Aggregates power optimiser performance data from each PV module
• Data transmission to web via SolarEdge Monitoring Portal for performance analysis, fault detection and troubleshooting
• Export limitations possible using meter
• Fixed-voltage technology ensures inverter operates at optimal input voltage regardless of module count or environmental conditions
• Tested and certified according to G98 or G99 with most recent firmware version

Installation Notes

• Three-phase commercial installation
• Important: This inverter has no trackers and requires power optimisers to function
• No display - commissioned via SolarEdge SetApp mobile application
• Important: SolarEdge SetApp mobile application required to commission
• UK only: Tested and certified according to G98 or G99, but only with most recent firmware version
• Important: Please update inverter firmware during SetApp phone app commissioning process as per Installation Manual
• New communication board version requires setup and commissioning via SolarEdge SetApp mobile application
• Mounting brackets provided
• Integrated DC switch included
• DC fuses: Not included
• IP65 rating suitable for outdoor and indoor installation
• Requires suitable SolarEdge power optimiser for operation
• Extended warranty option available: 20-year extension
