SolarEdge 100kW Synergy Manager SWITCH DC Switch, MC4, DC SPD - Complete System
The SolarEdge SE-100000-SWITCH-FULL is a complete 100kW three-phase Synergy inverter system comprising one Synergy Manager SWITCH with integrated DC switch and three Synergy Secondary Units with Rapid Shutdown Device. Powered by unique pre-commissioning technology for automated system validation and rapid installation, this modular solution features independent Synergy Unit operation for higher uptime, easy 2-person installation, integrated DC safety switch eliminating external DC isolators, and comprehensive built-in protection including thermal sensors, arc fault protection, and PID mitigation for maximised system performance in large-scale commercial and industrial applications.
Key Technical Details - Complete System
- Product: SolarEdge 100kW Synergy Manager SWITCH DC Switch, MC4, DC SPD - Complete System
- Part No: SE-100000-SWITCH-FULL
- Rated power: 100,000 W
- Maximum AC power (5 minutes): 100,000 W
- Maximum DC current: 144.75 A
- Maximum input voltage: 1,000 V
- DC fuses: 12
- Euro efficiency: 98%
- Connector type: MC4
- Included connectors: 12
- Transformer: None
- Integrated DC switch: Yes
- Total system weight: 114 kg
- Number of phases: 3
- Standard warranty: 12 years
Included Components

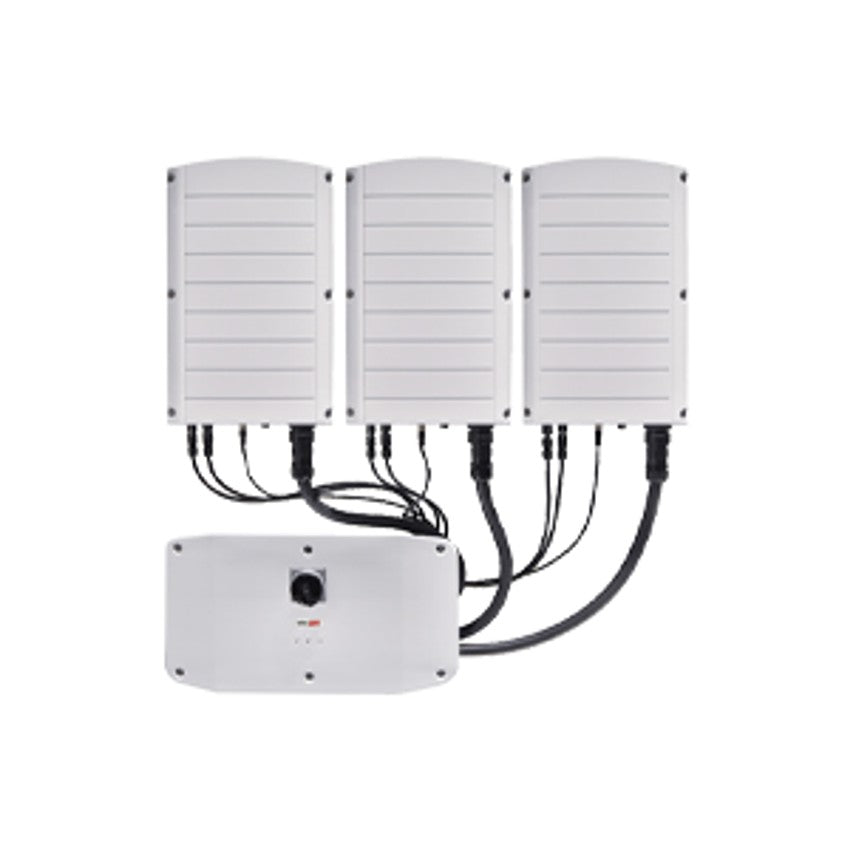

- 1 x SolarEdge 100kW BNQ4 Synergy Manager DC Safety Switch, MC4, DC SPD (SE100K-RW00IBNQ4) - 18 kg
- 3 x SolarEdge Synergy Secondary Unit with Rapid Shutdown Device (SE-SYNERGY-RSD) - 32 kg each (96 kg total)
Synergy Manager SWITCH (SE100K-RW00IBNQ4) - Technical Details
- Part No: SE100K-RW00IBNQ4
- Supplier Part No: SE100K-RW00IBNQ4
- Configuration: DC Safety Switch, MC4, DC SPD
- Contains communication board, AC and DC connection
- Integrated DC safety switch
- Dimensions (H x W x D): 360 x 560 x 295mm
- Weight: 18 kg
- Rated power: 100,000 W
Synergy Manager SWITCH - Key Features
- Central communication and connection hub for 100kW Synergy inverter system
- Integrated DC safety switch eliminates need for external DC isolators
- No need to open inverter units during installation
- Reduced balance of system costs with support for single DC input and cost-effective aluminium cables
- Separation of AC and DC connections for enhanced safety
- MC4 connectors for standardised PV connections
- Integrated DC surge protection device (SPD)
- Rapid system installation thanks to pre-commissioning feature
- Lightweight, modular design enables simple 2-person installation
- Built-in thermal sensors detect faulty wiring
- Connection point for AC and DC connections and holds all protection devices
- Perfect for large-scale commercial and industrial applications
Synergy Secondary Unit with RSD (SE-SYNERGY-RSD) - Technical Details
- Part No: SE-SYNERGY-RSD
- Supplier Part No: SESUK-RWR0INNN4
- Quantity in bundle: 3 units
- Maximum DC power per unit: 67,500 W
- Total DC power capacity (3 units): 202,500 W
- Maximum AC power (5 minutes): 49,990 W per unit
- Surge AC power (1 second): 49,990 W per unit
- Maximum input voltage: 1,000 V
- Maximum DC current: 74 A per unit
- Maximum DC inputs: 6 per unit (18 total)
- DC fuses: 12 per unit (36 total)
- Euro efficiency: 98%
- Connector type: MC4
- Included connectors: 12 per unit (36 total)
- Transformer: None
- Integrated DC switch: Yes
- Dimensions (H x W x D): 558 x 328 x 273mm
- Weight per unit: 32 kg
- Total weight (3 units): 96 kg
- Number of phases: 3
- Warranty: 12 years
Synergy Secondary Units - Key Features
- Includes RSD (Rapid Shutdown Device) with automatic rapid shutdown upon AC grid disconnect
- Three-phase inverter units with Synergy technology
- Rapid system installation thanks to pre-commissioning feature
- Lightweight, modular design enables simple 2-person installation
- Built-in thermal sensors detect faulty wiring, ensuring enhanced protection and safety
- Integrated DC switch for safe system isolation
- Independent operation enables higher uptime and easy serviceability
- Must be paired with Synergy Manager to function
- Three units work independently for maximum reliability and uptime
Complete System Features
- Pre-commissioning feature for automated validation of system components and wiring during site installation process and prior to grid connection
- Easy 2-person installation with lightweight, modular design
- Independent operation of each Synergy Unit enables higher uptime and easy serviceability
- Built-in thermal sensors detect faulty wiring ensuring enhanced protection and safety
- Built-in arc fault protection and rapid shutdown capability
- Built-in PID mitigation for maximised system performance
- Monitored and field-replaceable surge protection devices: integrated RS485 and Type 2 DC SPDs, optional Type 2 AC SPD
- Integrated DC safety switch eliminates need for external DC isolators
- Complete system: 1x Synergy Manager SWITCH and 3x Synergy Units for 100kW configuration
- Simple, modular and lightweight inverter perfect for large-scale commercial and industrial applications
- Packs useful safety and reliability features into compact footprint
- Ensures low operation and maintenance for installers and peace of mind for customers
System Capabilities
- 100kW rated power with 98% Euro efficiency
- Modular design with three independent Synergy Units for maximum uptime and easier servicing
- Supports single DC input configuration
- Enables aluminium cable usage for cost reduction
- Central hub for Synergy inverter system communication and power management
- Powered by unique pre-commissioning process for rapid system installation
- Enhanced thermal monitoring for improved safety and reliability across all three units
- Designed for large-scale commercial and industrial solar PV systems
- Integrated DC safety switch eliminates external DC isolator requirements
- Maximum DC current capacity of 144.75 A across system
- 18 DC inputs total (6 per Synergy Unit)
Installation Notes
- Complete system includes 1 x Synergy Manager SWITCH and 3 x Synergy Units
- Warning: SolarEdge Synergy Manager cannot be used on its own - it always requires Synergy Units to work
- Warning: SolarEdge Synergy Units cannot be used on their own - they always require a Synergy Manager to work
- Configuration: 2x Synergy Units required for 50kW and 66.6kW systems, 3x for 90kW and 100kW systems
- Lightweight modular design enables 2-person installation despite 114 kg total weight
- Pre-commissioning process enables rapid system installation with automated validation
- Integrated DC switch on Synergy Manager eliminates need for external DC isolators
- Integrated DC switch on each Synergy Unit
- 36 DC fuses included total (12 per Synergy Unit)
- Built-in thermal sensors on all units for faulty wiring detection
- Rapid Shutdown Device included on all three Synergy Units for automatic shutdown upon AC grid disconnect
- Synergy Manager SWITCH configuration: DC Safety Switch, MC4, DC SPD
- Extended warranty option available: 20-year extension
